75kg/sqm Geodesic Dome Tent With 12mm Cotton Insulation Layer For Winter Cold Weather
Diameter 6m Geodesic Dome Tent With 12mm Cotton Insulation Layer Fror Winter Cold Weather
6m Winter Cold Weather Geodesic Dome Tent With Insulation Layer
DESCRIPTION
| Name | Diameter 6m Geodesic Dome Tent With 12mm Cotton Insulation Layer Fror Winter Cold Weather |
| Frame Material | Hot-dip Galvanized steel tube |
| Roof Cover Material | 850g/Sqr PVC Fabric,Black-out. |
| Outer Cover Water proof Index | <3000mm |
| Application | Hotel house / Desert Resort / Glamping / Camping / Party |
| Wind Load | 100km /h,can be reinforce |
| Snow Load | 75kg/sqm |
The frames are made from stoving varnish, galvanized steel and stainless steel. Dome cover is double-
coated PVC fabric. The features of pvc cover is fire Retardant (DIN 4102 B1, M2), wateroof, UV
resistance.
We can make the size from diameter 3m to 50m, size are customized.
If you use it for accommodation, 6m diameter is the most popular size, it has 28.26m2 space inside.
|
Size (Diameter) |
Ridge Height (m ) |
Area (sqm) |
Weight (KG) |
Frame pipe Diameter |
| 5m | 2.95 m | 19.6 m² | 220 KG | Φ 26x2mm |
| 6m | 3.5 m | 28.26 m² | 280 KG | Φ 26x2 mm |
| 7m | 3.9 m | 38.5 m² | 380 KG | Φ 26x2 mm |
| 8m | 4.8 m | 50.24 m² | 460 KG | Φ 32x1.5mm |
| 9m | 5.4 m | 63.6 m² | 480 KG | Φ 32x1.5 mm |
| 10m | 6 m | 78.5 m² | 500 KG | Φ 32x1.5 mm |
Window: round glass window / round window for air vent with curved outer cover / skylight
Door: Single leaf glass door / Double leaves glass door/ Door canopy for single leaf glass door
Wooden floor: 10mm thickness wooden floor+8mm thickness solid PVC panel
Other optional items: Insulation / Solar fan / Curtain / Camouflage net /J-type hook for attach the canvas to the bottom of framework / Plywood box for packing or Iron frame
| Item name | Outdoor Living Dome Tent Waterproof Glamping Geodesic Dome Tent With Solar Fan |
| Main Profiles | Material:White painted Hot-dip Galvanized Steel Tube |
| Features:Stainless | |

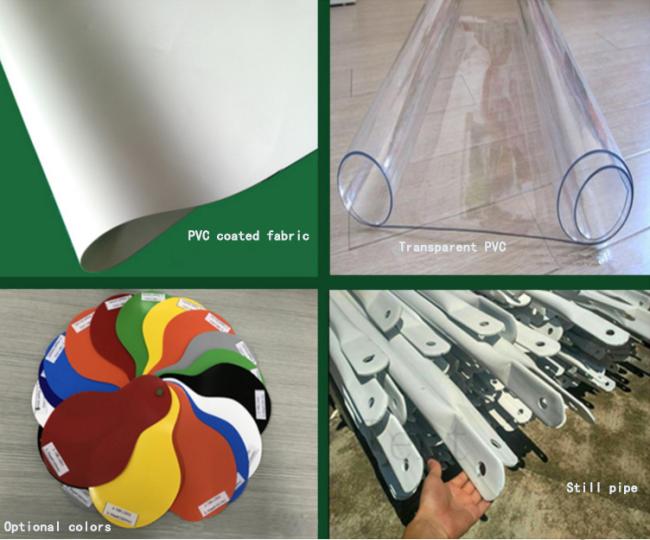

| Cover | Density: 850g/sqm double coated blockout white PVC |
| 950g/sqm transparent PVC | |
| Meterial: PVC coated polyester fabric | |
| Features: Water proof, UV resistance, fire retardent,self-cleaning ability, Mildew Proof. | |
| Components | Hot-dip Galvanized Steel |
| Allowed temperature condition | -30 degree Celsius~+70 degree Celsius |

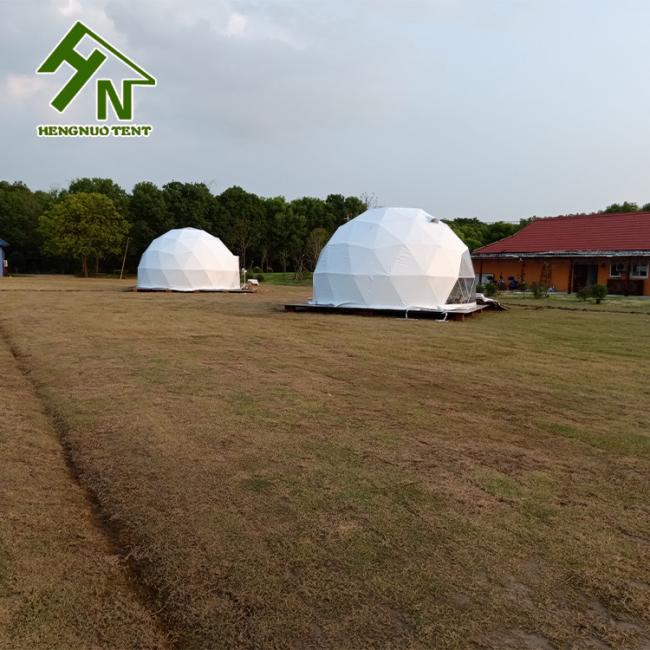

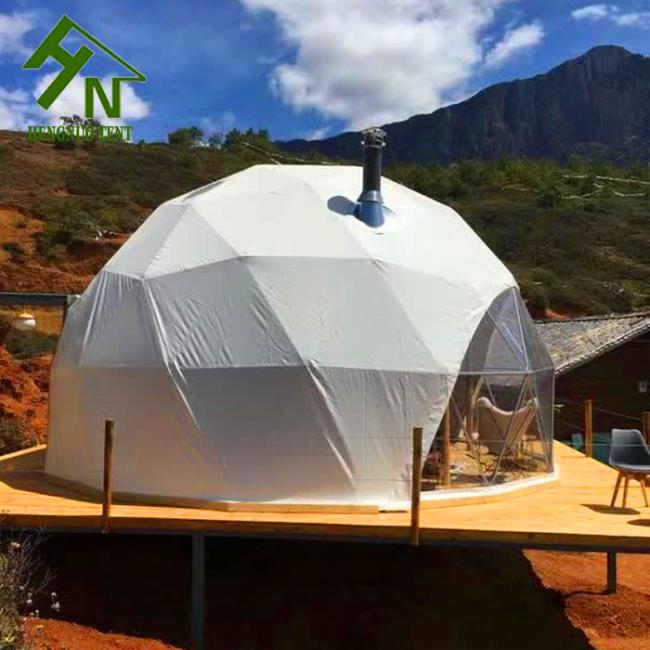

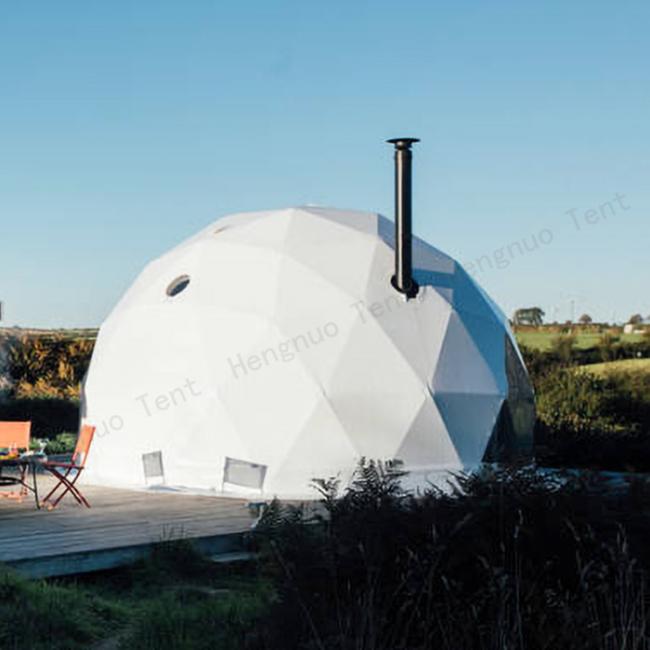

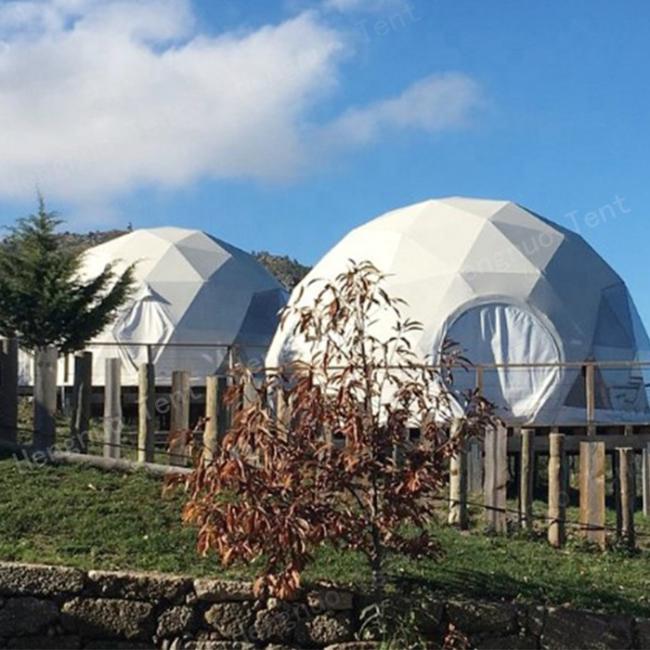

- - - - - Successful case - - - - -
Packing way
Steel pipes will be packed according different no.
Roof cover will be packed in professional PVC Bag
All can be packed in one plywood box.
We will use the best package to ensure that goods, it also can be tracked
- OUR ALL TENT STYLE
Heng Nuo Tent Factory manufactures aluminium A frame tent, pagoda tent, geodesic dome tent, arcum tent, curve tent, polygonl tent,high peak mixed tent, multi side tent, hexagonal pagoda tent , double decker tent etc.
