Luxury Perfab Glamping Resort Bell Geo Dome Tent Mildew Proof
High Quality Luxury Perfab Glamping Resort Bell Geo-dome Tent Hotel
DESCRIPTION
Geodesic Dome Ten
| Name | Hot-Dip Galvazied Frame Glamping Dome Tent Prefab House Tent Hotel Dome Tent For Living |
| Frame Material | Hot-dip Galvanized steel tube |
| Roof Cover Material | 850g/Sqr PVC Fabric,Black-out. |
| Outer Cover Water proof Index | <3000mm |
| Application | Hotel house / Desert Resort / Glamping / Camping / Party |
| Wind Load | 100km /h,can be reinforce |
| Snow Load | 75kg/sqm |
| m |
Domes Tent size can be custom-made from 3m to 50m in diameter and are commonly used for events,
camping, greenhouses, temporary structures or to enclose equipment.
The frames are made from stoving varnish, galvanized steel and stainless steel. Dome cover is double-
coated PVC fabric. The features of pvc cover is fire Retardant (DIN 4102 B1, M2), wateroof, UV
resistance.
Structure of the Tent
Q235 steel
Resistance to max 12 level wind
. Frame: galvanized steel, stainless steel or stoving varnish
- Fabric cover: high quality double PVC-coated polyester textile, 100% waterproof, flame retardant to DIN4102 B1, M2, CFM,UV resistant, tear resistant, self-cleaning ability, etc.
- Connector: strong hot-dip galvanized steel
- Allowed temperature condition: -30 degree Celsius~+70 degree Celsius
- Wind load: max. 100km/h (can be reinforced)
- Snow load: 75kg/sqm (snow can't stay if use big degree roof pitch design)
|
Size (Diameter) |
Ridge Height (m ) |
Area (sqm) |
Weight (KG) |
Frame pipe Diameter |
| 5m | 2.95 m | 19.6 m² | 220 KG | Φ 26x2mm |
| 6m | 3.5 m | 28.26 m² | 280 KG | Φ 26x2 mm |
| 7m | 3.9 m | 38.5 m² | 380 KG | Φ 26x2 mm |
| 8m | 4.8 m | 50.24 m² | 460 KG | Φ 32x1.5mm |
| 9m | 5.4 m | 63.6 m² | 480 KG | Φ 32x1.5 mm |
| 10m | 6 m | 78.5 m² | 500 KG | Φ 32x1.5 mm |
We can make the size from diameter 3m to 50m, as for accommodation, diameter 6m is ideal.
| Item name | Outdoor Living Dome Tent Waterproof Glamping Geodesic Dome Tent With Solar Fan |
| Main Profiles | Material:White painted Hot-dip Galvanized Steel Tube |
| Features:Stainless | |
| Cover | Density: 850g/sqm double coated blockout white PVC |
| 950g/sqm transparent PVC | |
| Meterial: PVC coated polyester fabric | |
| Features: Water proof, UV resistance, fire retardent,self-cleaning ability, Mildew Proof. | |
| Components | Hot-dip Galvanized Steel |
| Allowed temperature condition | -30 degree Celsius~+70 degree Celsius |
OPTIONAL ACCESSORIES FOR DOME TENT
Windows: round / triangle / rectangle PVC window, round / triangle glass window.
Wooden flooring system: scassette flooring
Doors: double-swing glass door, single-swing glass door, PVC door
Fixing way: ground anchors, weight plate, expandable screw
Heat insulation: 8mm or 12mm thickness insulation, PU leather cover heat insulation.
Curtain: single track or double track curtain, automatic skylight curtain
Ventilation :top ventilation window, solar fan
Shower room:1.2m*1.4m, 1.2m*1.7m, 1.2m*1.9m
Floor : E1 laminate floor
Platform: Steel frame, wooden plastic floor.
Exhaust fan: solar exhaust fan,silent exhaust fan.
Other Optional Items: table, chair, lighting, A/C, partition, all-in-one bathroom,bathroom cabinet,toilet,
stove,chimney,installation tools etc.

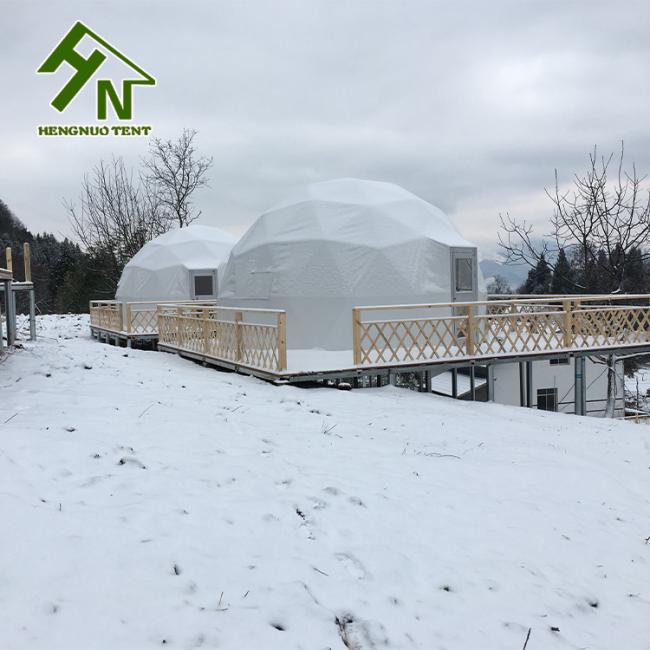

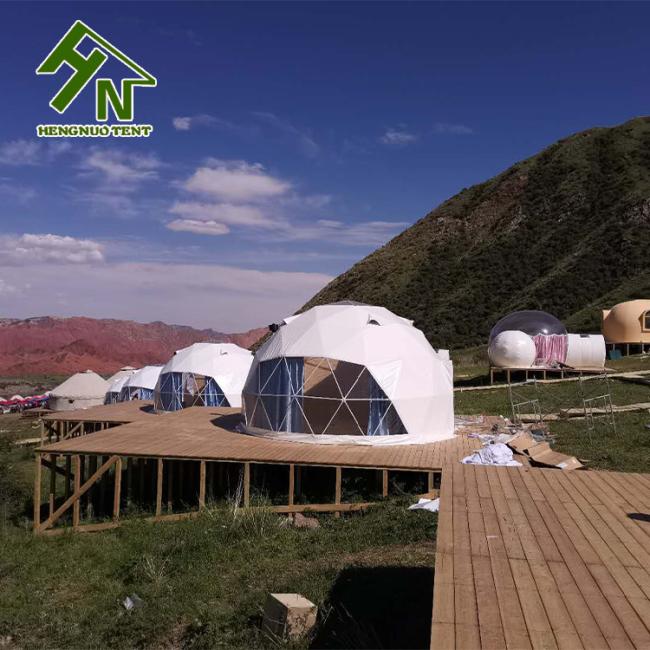

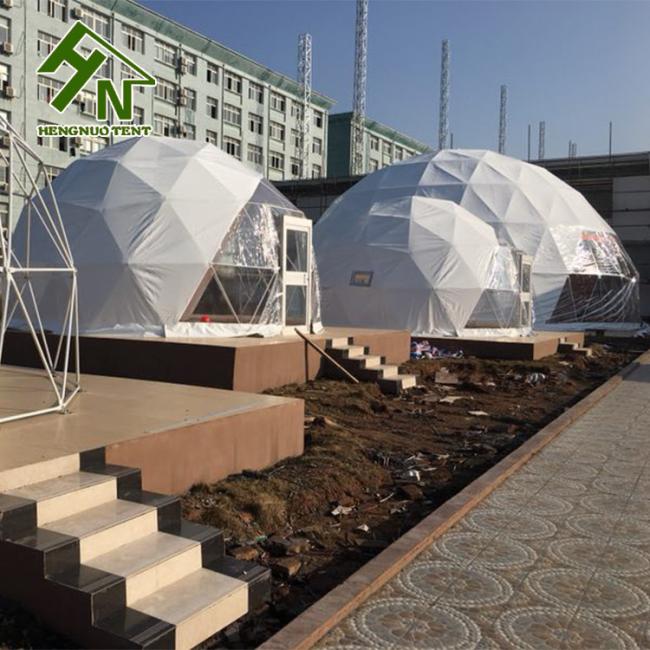

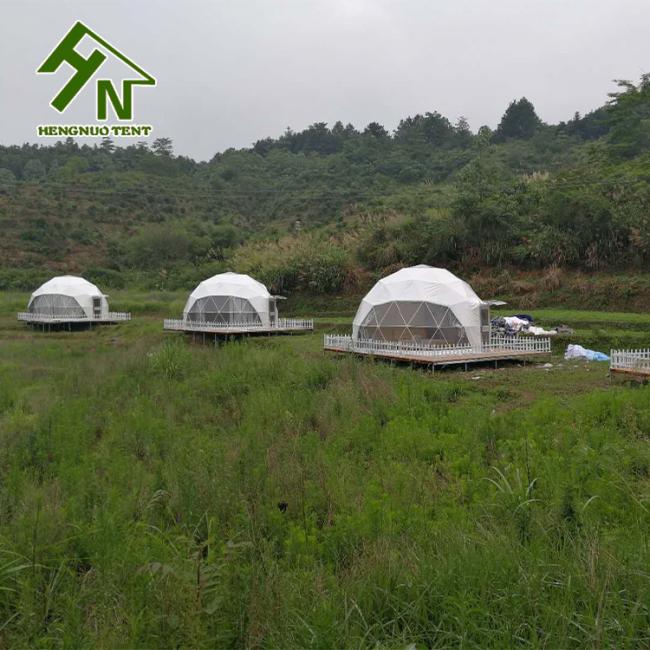

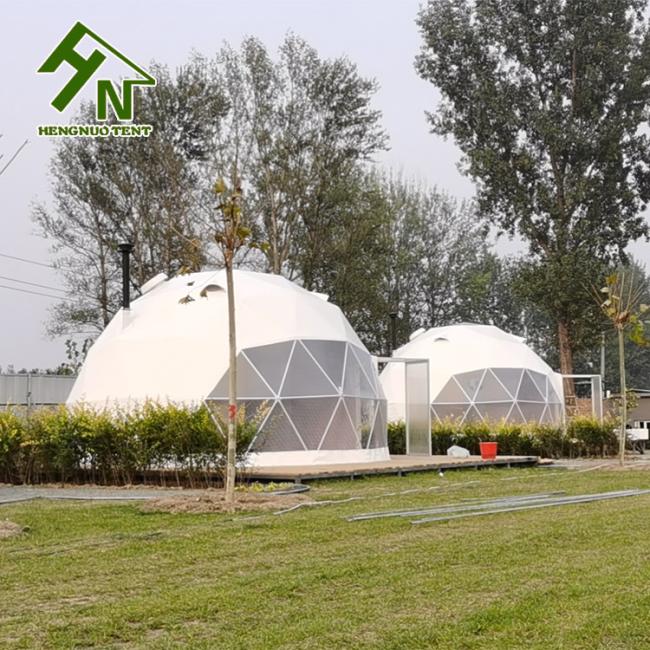

- - - - - Successful case - - - - -
Packing way
Steel pipes will be packed according different no.
Roof cover will be packed in professional PVC Bag
All can be packed in one plywood box.
We will use the best package to ensure that goods, it also can be tracked
- OUR ALL TENT STYLE
Heng Nuo Tent Factory manufactures aluminium A frame tent, pagoda tent, geodesic dome tent, arcum tent, curve tent, polygonl tent,high peak mixed tent, multi side tent, hexagonal pagoda tent , double decker tent etc.
