Hotel Camping Resort Waterproof Geodesic Dome House With Curtain And Door
Diameter 6m Hotel Camping Tents For Resort Waterproof Geodesic Dome House with Curtain and Door
Hotel Camping Tents Resort Waterproof Geodesic Dome House with Curtain and Door
DESCRIPTION
About the frame
The frames are made from stoving varnish, galvanized steel and stainless steel. Dome cover is double-
coated PVC fabric. The features of pvc cover is fire Retardant (DIN 4102 B1, M2), wateroof, UV
resistance.
Our dome cover is double-coated PVC fabric. Our PVC fabric flame retardant according to German standard
DIN4102 B1,M2
-Full line accessories available. You can chose the accessories for the tent according to your needs.- You can install air conditioner and stove system inside the dome tent to make it very comfortable
Window: round glass window / round window for air vent with curved outer cover / skylight
Door: Single leaf glass door / Double leaves glass door/ Door canopy for single leaf glass door
Wooden floor: 10mm thickness wooden floor+8mm thickness solid PVC panel
Other optional items: Insulation / Solar fan / Curtain / Camouflage net /J-type hook for attach the canvas to the bottom of framework / Plywood box for packing or Iron frame
- 6m diameter is the most popular size, it has 28.26m2 space inside.
|
Size (Diameter) |
Ridge Height (m ) |
Area (sqm) |
Weight (KG) |
Frame pipe Diameter |
| 5m | 2.95 m | 19.6 m² | 220 KG | Φ 26x2mm |
| 6m | 3.5 m | 28.26 m² | 280 KG | Φ 26x2 mm |
| 7m | 3.9 m | 38.5 m² | 380 KG | Φ 26x2 mm |
| 8m | 4.8 m | 50.24 m² | 460 KG | Φ 32x1.5mm |
| 9m | 5.4 m | 63.6 m² | 480 KG | Φ 32x1.5 mm |
| 10m | 6 m | 78.5 m² | 500 KG | Φ 32x1.5 mm |
| Item name | Outdoor Living Dome Tent Waterproof Glamping Geodesic Dome Tent With Solar Fan |
| Main Profiles | Material:White painted Hot-dip Galvanized Steel Tube |
| Features:Stainless | |
| Cover | Density: 850g/sqm white PVC , it is covered withe double coated blockout |
| The transparent area:950g/sqm transparent PVC | |
| Meterial: PVC coated polyester fabric | |
| Features: Water proof, UV resistance, fire retardent,self-cleaning ability, Mildew Proof. | |
| Components | Hot-dip Galvanized Steel |
| Allowed temperature condition | -30 degree Celsius~+70 degree Celsius |

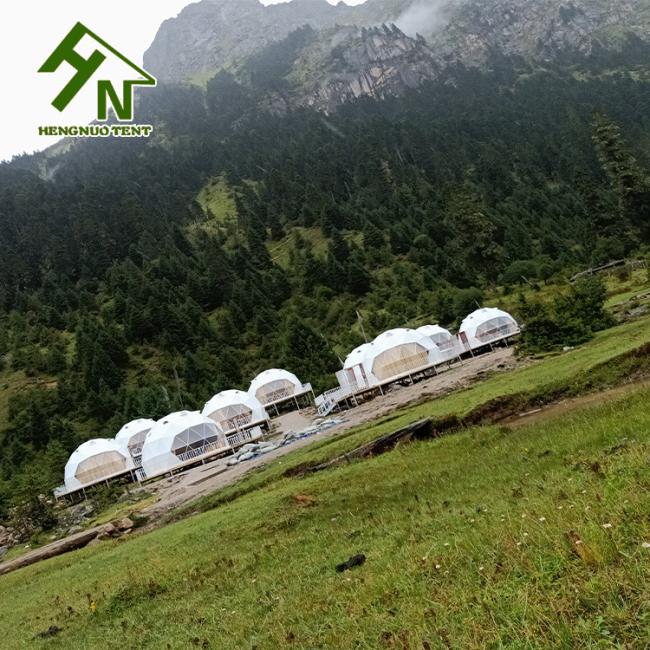

- - - - - Successful case - - - - -
Packing way
Steel pipes will be packed according different no.
Roof cover will be packed in professional PVC Bag
All can be packed in one plywood box.
We will use the best package to ensure that goods, it also can be tracked
- OUR ALL TENT STYLE
Heng Nuo Tent Factory manufactures aluminium A frame tent, pagoda tent, geodesic dome tent, arcum tent, curve tent, polygonl tent,high peak mixed tent, multi side tent, hexagonal pagoda tent , double decker tent etc.
