Luxury Galvanized Steel Geodesic Dome Structure Family Camping Tent Fire Resistance
Luxury Galvanized Steel Geodesic Dome Structure Family Camping Tent Fire Resistance
DESCRIPTION
-Full line accessories available. You can chose the accessories for the tent according to your needs.
- 6m diameter is the most popular size, it has 28.26m2 space inside.
- You can install air conditioner and stove system inside the dome tent to make it very comfortable
Structure of the Tent
Q235 steel
Resistance to max 12 level wind
. Frame: galvanized steel, stainless steel or stoving varnish
|
Size (Diameter) |
Ridge Height (m ) |
Area (sqm) |
Weight (KG) |
Frame pipe Diameter |
| 5m | 2.95 m | 19.6 m² | 220 KG | Φ 26x2mm |
| 6m | 3.5 m | 28.26 m² | 280 KG | Φ 26x2 mm |
| 7m | 3.9 m | 38.5 m² | 380 KG | Φ 26x2 mm |
| 8m | 4.8 m | 50.24 m² | 460 KG | Φ 32x1.5mm |
| 9m | 5.4 m | 63.6 m² | 480 KG | Φ 32x1.5 mm |
| 10m | 6 m | 78.5 m² | 500 KG | Φ 32x1.5 mm |
| Item name | Outdoor Living Dome Tent Waterproof Glamping Geodesic Dome Tent With Solar Fan |
| Main Profiles | Material:White painted Hot-dip Galvanized Steel Tube |
| Features:Stainless | |
| Cover | Density: 850g/sqm double coated blockout white PVC |
| 950g/sqm transparent PVC | |
| Meterial: PVC coated polyester fabric | |
| Features: Water proof, UV resistance, fire retardent,self-cleaning ability, Mildew Proof. | |
| Components | Hot-dip Galvanized Steel |
| Allowed temperature condition | -30 degree Celsius~+70 degree Celsius |
Window: round glass window / round window for air vent with curved outer cover / skylight
Door: Single leaf glass door / Double leaves glass door/ Door canopy for single leaf glass door
Wooden floor: 10mm thickness wooden floor+8mm thickness solid PVC panel
Other optional items: Insulation / Solar fan / Curtain / Camouflage net /J-type hook for attach the canvas to the bottom of framework / Plywood box for packing or Iron frame

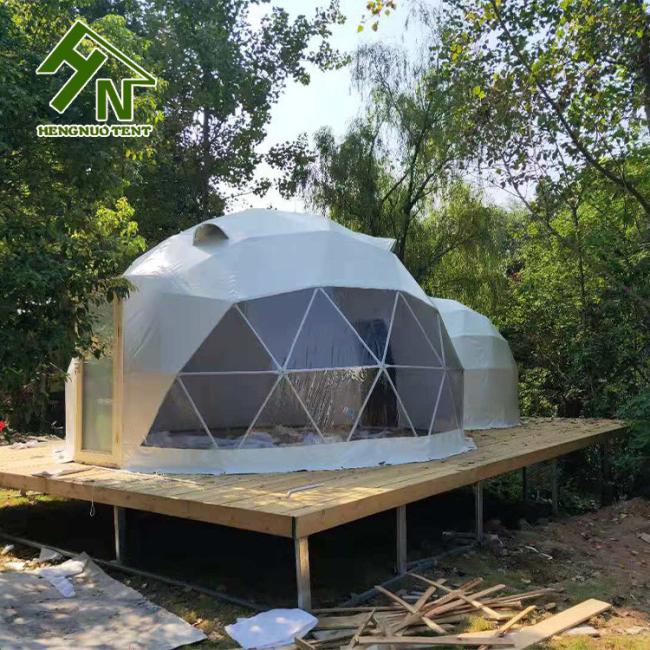

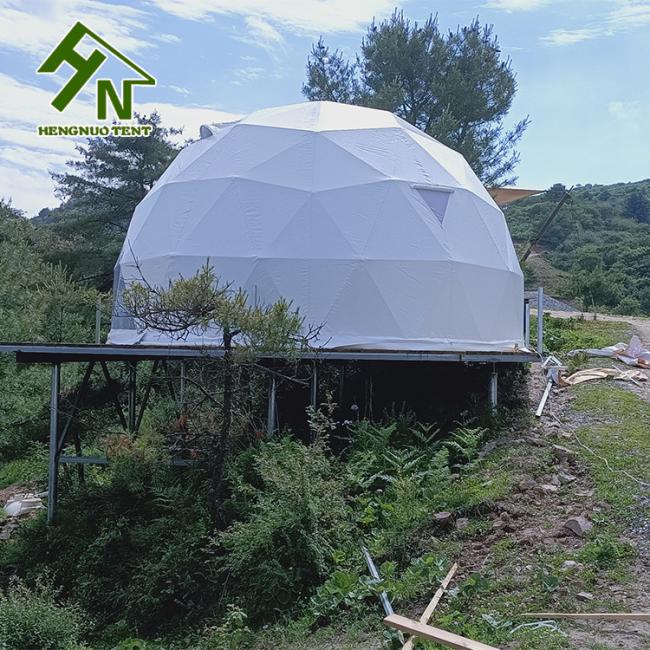

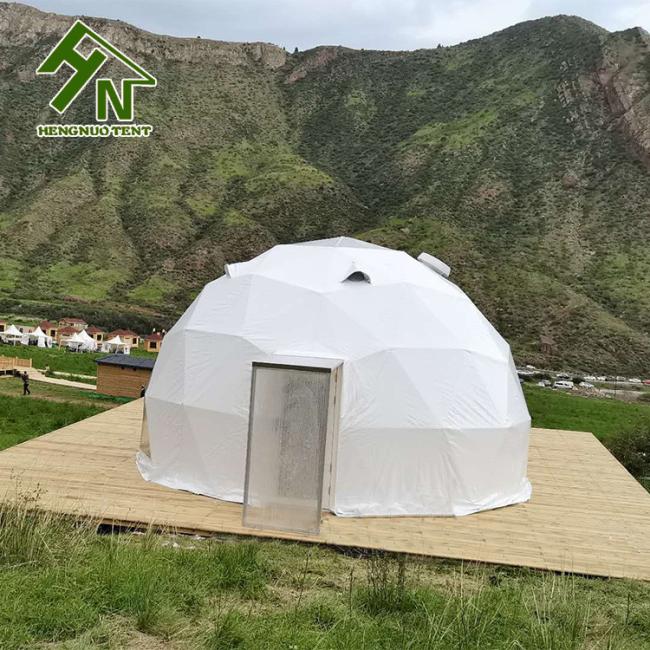

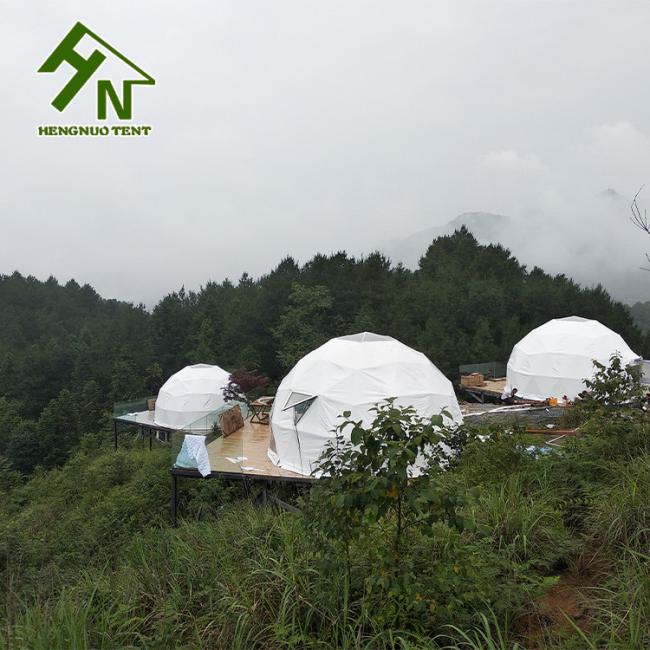

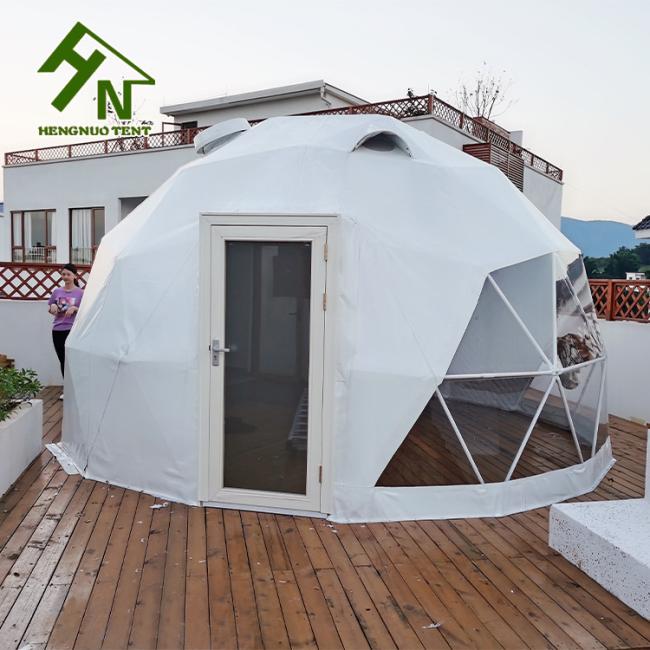

- - - - - Successful case - - - - -
Packing:
Type A: (for free)
1.The hot-dip galvanized steel tubes are packed in air bubble plastic film, to avoid scratch
2.The covering fabric is packed in professional PVC zipper carry bag, to keep clearn.
3.Hardware and other accessories are packed in other PVC zipper bag
Type B: (extra fee)
All packed in the plywood box each set.
(If the tent is too big, typeA will be more suitable )
- OTHER STYLE TENTS
Heng Nuo Tent Factory manufactures aluminium A frame tent, pagoda tent, geodesic dome tent, arcum tent, curve tent, polygonl tent,high peak mixed tent, multi side tent, hexagonal pagoda tent , double decker tent etc.
