China 2f Super Bright SMD2835 LED Bulb Circuit Board 4000K With Seoul for sale

2f Super Bright SMD2835 LED Bulb Circuit Board 4000K With Seoul

Price Negotiable

MOQ: 500PCS

Delivery Time: 7-15 work days

Brand: MANKUN

Product Description

2f Super Bright SMD2835 LED Bulb Circuit Board 4000K With Seoul

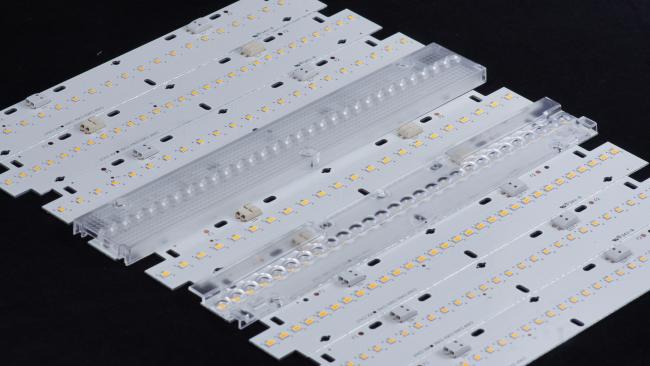

2f Super bright SMD led modules with Seoul 2835 LED or Samsung DC led module

Technical data

Linear LED modules

• LED module efficiency up to 205 lm/W

• Long life-time: >50,000 hours

• High color rendering (CRI >80)

• Color consistency of 5 SDCM

• Choice of color temperatures (3000 K, 4000 K and 5000 K)

• One-foot (280 mm) and two-foot (560 mm) lengths

• Small LED module width of only 40mm

• Wide temperature (Tc) range from -40 °C to +85 °C

• Push-in connectors enabling automated wiring

• Simple installation with M4 screws (Built-in LED module)

• Three year system warranty

Specific technical data

Model	CCT K	Current mA	Flux Tp 250C lm	Flux Tp 650C lm	Power Tp 650C W	Efficacy Tp 250C lm/W	Efficacy Tp 650C lm/W	Imax mA	Min. Voltage Tp 650C	Max. Voltage Tp 250C
MK15845 (B-S3)	3000	120	621	585	3.9	159	150	320	30.1	36.3
		180	909	856	5.9	154	145
		250	1193	1126	8.4	142	134
	4000	120	652	617	3.9	167	158
		180	939	891	5.9	159	151
		250	1252	1185	8.4	149	141
	5000	120	663	628	3.9	170	161
		180	956	903	5.9	162	153
		250	1277	1202	8.4	152	143
	6500	120	652	617	3.9	167	158
		180	939	915	5.9	159	155
		250	1252	1185	8.4	149	141
MK15846(B-S3)	3000	120	795	750	5.0	159	150	320	38.3	46.2
		180	1155	1088	7.5	154	145
		250	1520	1434	10.7	142	134
	4000	120	835	790	5.0	167	158
		180	1193	1133	7.5	159	151
		250	1595	1509	10.7	149	141
	5000	120	850	805	5.0	170	161
		180	1215	1148	7.5	162	153
		250	1627	1531	10.7	152	143
	6500	120	835	790	5.0	167	158
		180	1193	1163	7.5	159	155
		250	1595	1509	10.7	149	141
MK15844(B-S3)	3000	200	939	885	5.9	159	150	480	27.3	33
		300	1371	1291	8.9	154	145
		400	1733	1635	12.2	142	134
	4000	200	986	933	5.9	167	158
		300	1416	1344	8.9	159	151
		400	1818	1721	12.2	149	141
	5000	200	1003	950	5.9	170	161
		300	1442	1362	8.9	162	153
		400	1855	1745	12.2	152	143
	6500	200	986	933	5.9	167	158
		300	1416	1380	8.9	159	155
		400	1818	1721	12.2	149	141
MK15848 (C-S2)	3000	130	1299	1265	8.6	151	147	300	59.4	70.4
		180	1682	1634	12.1	139	135
		250	2336	2267	17.3	135	131
	4000	130	1385	1342	8.6	161	156
		180	1852	1803	12.1	153	149
		250	2492	2422	17.3	144	140
	5000	130	1471	1428	8.6	171	166
		180	1973	1912	12.1	163	158
		250	2647	2578	17.3	153	149
	6500	130	1385	1342	8.6	161	156
		180	1852	1803	12.1	153	149
		250	2492	2422	17.3	144	140
MK15854(C-S2)	3000	130	2598	2529	17.2	151	147	300	118.8	140.8
		180	3364	3267	24.2	139	135
		250	4658	4520	34.5	135	131
	4000	130	2770	2684	17.2	161	156
		180	3703	3606	24.2	153	149
		250	4968	4830	34.5	144	140
	5000	130	2942	2856	17.2	171	166
		180	3945	3824	24.2	163	158
		250	5279	5141	34.5	153	149
	6500	130	2770	2684	17.2	161	156
		180	3703	3606	24.2	153	149
		250	4968	4830	34.5	144	140
The mentioned data can have a 10% tolerance.
