3000K Color Temperature Slim Dimmer LED Module AC120V Input Voltage
3000K Color Temperature Slim Dimmer LED Module AC120V Input Voltage

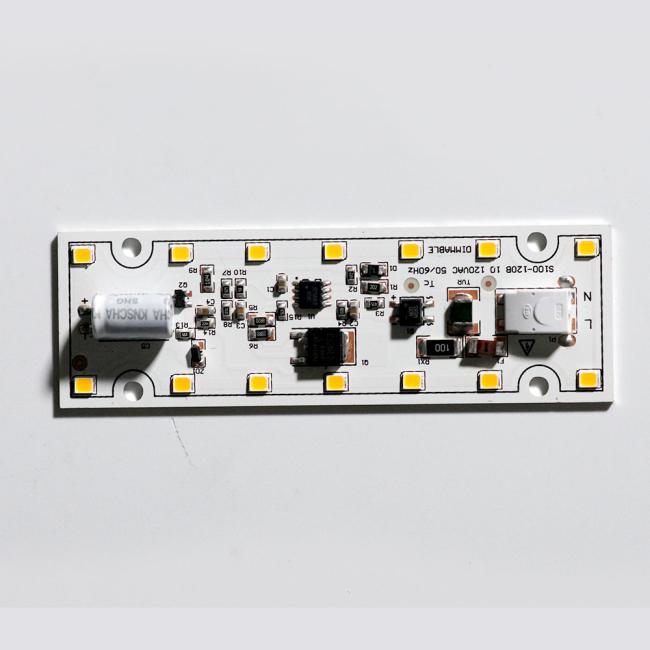

32*100mm Dimmable 8W Flicker Free,AC120V Slim Dimmable LED DOB Module
Specification
|
Material |
Samsung 2835 LED |
|
Light Color |
3000 |
|
CRI |
80/90 |
|
Light Output |
800lm @5000K Ra80 |
|
HiPot |
1.5KV AC |
|
Surge Protection |
2.5KV Ring Wave |
|
Certification |
UL8750 |
|
Features |
TRIAC Dimming,T24 Non-Flicker |
|
Power |
120V 60Hz 8W |
|
Power Factor |
0.95 |
Main features:
1.This family is featured with interchangeable light engine system;
2.3 light engines of different size can be changed in between more than 7 types of various fittings which can be either fixed or directable, flat or deeply recessed,double or single;
3.Using superior optics providing outstanding performance that creat the same light effect as that of the halogen lamps.
Technology:
Based on ACDrv core technology, Cooled provides AC direct drive chip, driver on board (DOB) module. Modules include a series of standardized modules and custom design modules, including high-power outdoor applications such as flood lamp , high bay, street lamps, explosion-proof lights, and indoor applications such as TRIAC dimmable lamp, ceiling lamps, down light, spot lamp etc.
