DC84V 50 Watts 3000K Solar LED Street Light Module IP65 Outdoor Lamp
DC84V 50 Watts 3000K Solar LED Street Light Module IP65 Outdoor Lamp
DC84V Outdoor Lamp 84LED 30W 50W 60W Solar Street Light Lamp Led Light Module
Specification
|
Item No. |
DK252-84H-16307-50W |
|
PCB Dimension |
225*25*1.6mm |
|
Power |
40/50W |
|
Luminous flux |
4000-5000lm |
|
Lamp efficiency |
100~110lm/w |
|
Light source |
Cree SM3030 |
|
Light degradation rate |
25000h ≤ 30% |
|
Color rendering index |
Ra>80 |
|
Power factor |
PF≥0.96 |
|
Beam angle |
60/90 |
|
Rated life |
≥50000h |
|
Color temperature |
2700K-6500K all available |
|
Working temperature |
-30~+50°C |
|
Input wattage |
1.0A 30-36V/1.2A 36-44V |
|
IP code |
IP65 |
|
Brand |
SMD3030 chips & Meanwell ELG Driver |
|
Warranty |
5 years |
|
Certificate |
CE, ROHS, EMC, LVD |
|
Application |
street light, flood light, tunnel light,garden light |
|
Mounting way |
assemble |
|
Payment terms |
By T.T, Western Union, paypal, etc |
|
MOQ |
1carton |
Product details
|
Part No. |
CCT |
CRI |
LED of QTY |
INPUT |
Typ. Power |
Typ. Flux |
Typ. Efficacy |
|
MK252-3030S84D-830 |
2700/3000 |
>70 |
84 |
1.2A 42VDC |
50 |
5500 |
100 |
|
MK252-3030S84D-840 |
6500 |
120 |
|||||
|
MK252-3030S84D-850 |
4000/5000 5700/6500 |
>70 |
84 |
1.2A 42VDC |
50 |
6500 |
110 |
|
MK252-3030S84D-865 |
6750 |
135 |
|||||
|
Units |
K |
- |
Pcs |
Adjustable |
W |
Lm |
Lm/w |
Mark :
XX for Different input option,
CRI>80 OR>90 is available in Plus, please check the final data with us again.
Lens options: 25/60/90/120/85x157 degree

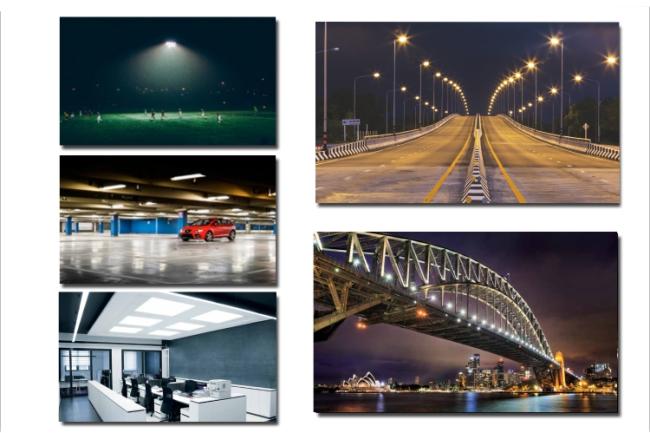

Applications
