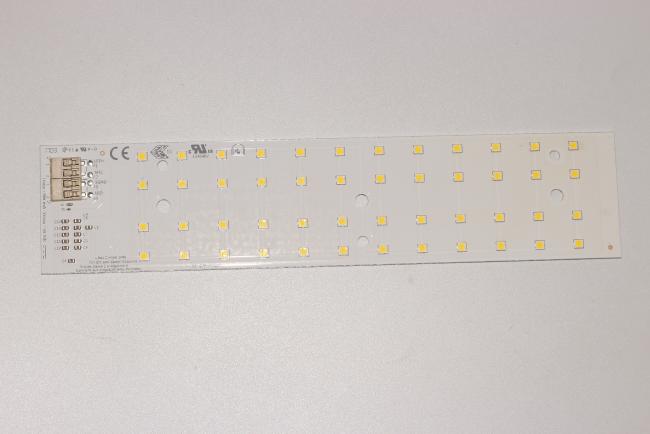

SMD 3030 4X12 35W PCB LED Module For Outdoor Streetlight Lamps
SMD 3030 4X12 35W PCB LED Module For Outdoor Streetlight Lamps
Zhaga Pcb With 3030Led Module 4X16 LED Outdoor Light Lamp For Streetlight Module
PCB LED Moduleroduct description
-
High efficiency outdoor modules
-
Suitable for harsh and humid outdoor conditions
-
Huge performance temperature range from -40 ... +105 °C
-
Surge tested (+/- to earth) 6 kV with Tridonic LED driver
-
For use with IP6x lenses (e.g. LEDiL Strada IP-4x4)
-

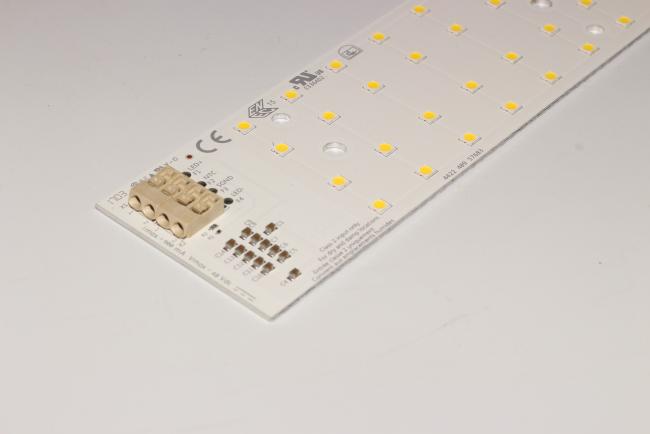

Push-in terminals for simple and quick wiring
-
Long lifetime up to 100,000 hours
-
5 years guarantee
Optical properties
-
Colour temperatures 3,000, 4,000 and 5,000 K
-
Useful luminous flux 5,400 lm at Irated and tp = 25 °C
-
Efficacy of the LED module 165 lm/W at Irated and tp = 25 °C
-
High colour rendering index CRI > 80
-
Small luminous flux tolerances
Mechanical properties
-
Module dimension 49 x 220 mm
-
Installation of the module together with lens in the luminaire by means of an M3 screw
Approval marks:
|
Technical data |
|
|---|---|
|
Beam characteristic |
120° |
|
Ambient temperature range |
-40 ... +80 °C |
|
tp rated |
75 °C |
|
tc |
95 °C |
|
Irated |
500 mA |
|
Imax |
720 mA |
|
Max. permissible LF current ripple |
800 mA |
|
Max. permissible peak current |
1,200 mA / max. 10 ms |
|
Max. working voltage for insulation |
410 V |
|
Max. working voltage for insulation with lens |
570 V |
|
Insulation test voltage |
1.82 kV |
|
CTI of the printed circuit board |
> 600 |
|
ESD classification |
Severity level 2 |
|
Risk group (IEC 62471) |
RG0 |
|
Classification acc. to IEC 62031 |
Built-in |
|
Type of protection |
IP00 |
|
Lumen maintenance L70B50 |
80,000 h |
|
Guarantee |
3 Year(s) |
Specific technical data
| Model | CCT K | Current mA | Flux Tp 250C lm | Flux Tp 650C lm | Power Tp 650C W | Efficacy Tp 250C lm/W | Efficacy Tp 650C lm/W | Imax mA | Min. Voltage Tp 650C | Max. Voltage Tp 250C |
| 15498P30H830 | 3000 | 600 | 3276 | 3070 | 20.6 | 159 | 149 | 1600 | 34.8 | 39.6 |
| 750 | 3915 | 3645 | 27.0 | 145 | 135 | |||||
| 1200 | 6072 | 5632 | 44.0 | 138 | 128 | |||||
| 15498P30H840 | 4000 | 600 | 3399 | 3193 | 20.6 | 165 | 155 | |||
| 750 | 4050 | 3780 | 27.0 | 150 | 140 | |||||
| 1200 | 6292 | 5852 | 44.0 | 143 | 133 | |||||
| 15498P30H850 | 5000 | 600 | 3564 | 3358 | 20.6 | 173 | 163 | |||
| 750 | 4239 | 3969 | 27.0 | 157 | 147 | |||||
| 1200 | 6644 | 6204 | 44.0 | 151 | 141 | |||||
| 15498P30H865 | 6500 | 600 | 3276 | 2926 | 20.6 | 159 | 142 | |||
| 750 | 3807 | 3564 | 27.0 | 141 | 132 | |||||
| 1200 | 5808 | 5588 | 44.0 | 132 | 127 | |||||
| 1) Integral measurement over the complete module. | ||||||||||
| 2) If mounted with M3 screws. | ||||||||||
| 3) Measured at I =1280 mA. | ||||||||||
| 4) HE ... high efficiency, NM ... nominal mode, HO ... high output. | ||||||||||
| 5) Tolerance range for optical and electrical data: ±10 %. | ||||||||||
