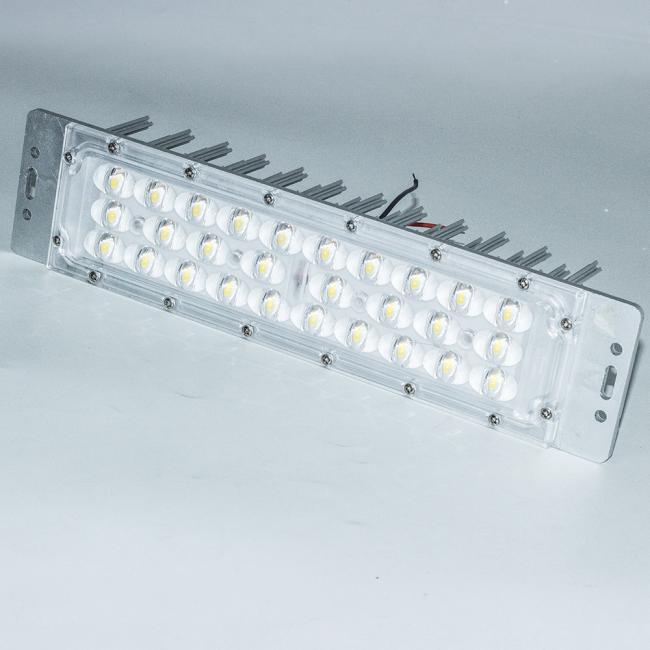

High Lumen 160LM 170LM SMD5050 50W LED Module For Outdoor Lighting
High Lumen 160LM 170LM SMD5050 50W LED Module For Outdoor Lighting
Outdoor Lighting 42V 50W Projection Light Square Light Led Street Lighting Module
Product Description
|
Product Model |
DK252-SMD5050-70W |
|
Power |
70W |
|
Input Voltage |
102V |
|
Input Current |
600mA |
|
Working Temperature |
-40~50° |
|
LED Chip |
Lumileds 3030 2D |
|
LED Quantity |
68PCS |
|
Light Efficiency |
>110lm/w |
|
Lumen |
>7700lm |
|
Color Temperature |
2700K, 3000K, 4000K, 5000K, 5700K, 6500K |
|
IP Rate |
IP67 |
|
Warranty |
5 years |
|
CRI |
≥80 |
|
Heat Sink Material |
Die-casting Aluminum Alloy |
|
Lifespan |
≥50000hours |
|

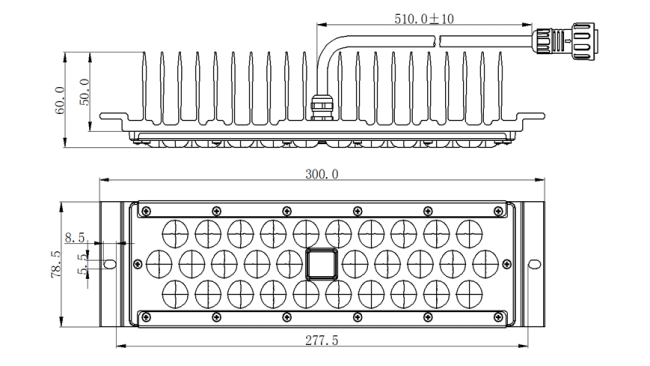

Product Dimension: |
300*70*55mm |
|
Packing Dimension: |
320*90*75mm |
|
Net Weight |
1.0kg |
|
Gross Weight |
1.2kg |
Specification
|
NO. |
Name |
Nominal Value |
|
1 |
Type |
MK16310-50W |
|
2 |
Power |
30W |
|
3 |
CCT |
3000K |
|
4 |

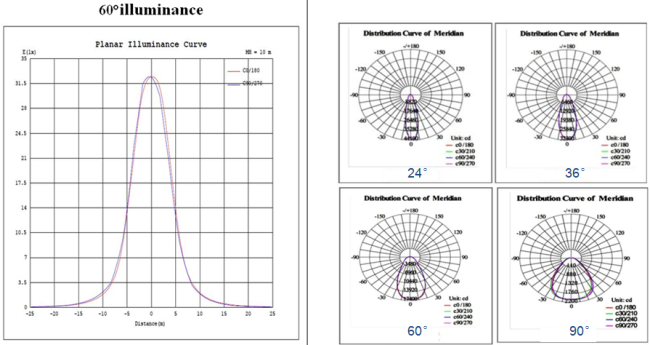

Beam Angle |
240 / 360 / 600 /900 |
|
5 |
Brand of chips |
Bridgelux |
|
6 |
LED Qty's |
28pcs |
|
7 |
CRI |
>70 |
|
8 |
Luminous Efficiency |
120Lm/W |
|
9 |
Luminous Flux |
3600Lm |
|
10 |
IP Rate |
IP66 |
|
11 |
Input Voltage |
28-34V |
|
12 |
Input Current |
1000mA |
|
13 |
Working Environment |
-400C - 500C, 20%-90%H.R |
|
14 |
Storage Temperature |
-400C - 850C, 10%-90%H.R |
|
15 |
Life time |
> 5years |
|
16 |
Body material |
Aluminum+ Optical PC |
|
17 |
Size of Lamp |
300*78.5*60 mm ( + - 5mm) |
|
18 |
Unit Package Size |
320*85*70 mm ( + - 5mm) |
|
19 |
Carton(20pcs) |
465*340*325 mm ( + - 5mm) |
|
20 |
N.W |
0.92KG ( + - 0.1KG) |
Features.
-
LumiLEDs SMD5050 chip,high performance LED sources
-
Hight efficiency up to 185lm/w, energy saving
-
Heat sink, Aluminum die casting body,Large heat dissipation area, electrolytic oxidation surface treatment,return to the original color of aluminum.
-
Optical lens,high quality pc material cover, type II-medium beam angle
-
Sealing,silicone pad, IP67 protection grade,anti water and dust.
-
Waterproof Connector,IP66 protection level
-
According to CSA016-2014 standard.
Packaging Details
2pcs/ Box 306*82.5*67mm
40pcs/CTN 365*322*354mm
N.W.: 0.54KG/Piece
