30W 200W LED Street Light Module Die Cast Aluminum Alloy Housing
30W 200W LED Street Light Module Die Cast Aluminum Alloy Housing
30w Led Street Light Module 50w IP65 Outdoor Led Street Lights Aluminum Casting

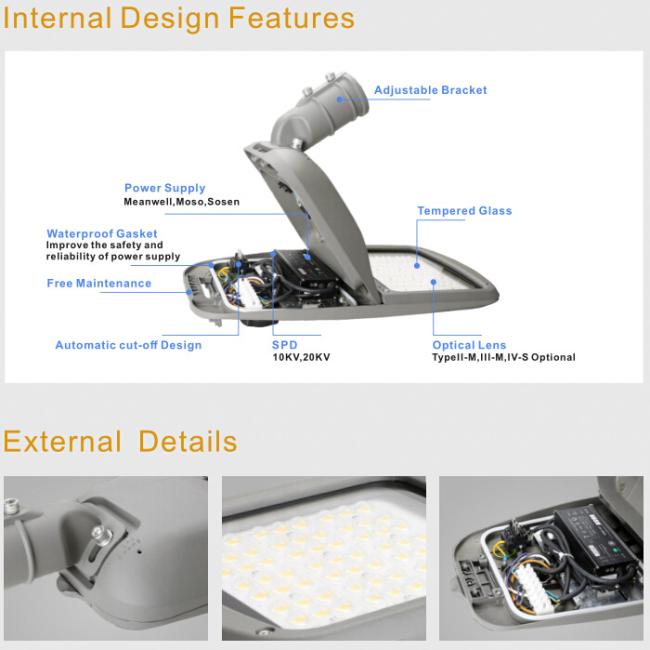

Product Features of L29 LED Street Light
1. High pressure die-cast aluminum alloy housing from 30W to 200W.
2. Substantial friction resistant powder spraying process surface treatment.
3. Adopt multi-chips package 5050 LEDs. Stable performance,flip chip technology, single unit’s damage won't affect others' normal work.
4. Smooth back,self-cleaning deisgn tempered glass cover.
5. Optical lens design. Type II-M,III-M,IV-S optional.Uniform lighting distribution apply to different lighting projects.
6. Excellent operating temperature -40~50°C
7. -10~10° adjustable bracket applicable different mounting arm.
8. With excellent housing design reach IP66/IK08 rating.
9. Automatic cut-off design.10KV/20KV SPD.
10. Dimming and smart lighting system available upon request.
11. Long service life over 50,000 hours, 5 years warranty.
Specification of L29 LED Street Light
|
Name |
Nominal Value |
||||
|
Type |
LY-L29-30W |
LY-L29-50W |
LY-L29-100W |
LY-L29-150W |
LY-L29-200W |
|
Power |
30W |
50W |
100W |
150W |
200W |
|
Luminous Efficiency |
140-160lm/w±5lm |
||||
|
CCT |
3000K/4000K/5000K/6000K |
||||
|
CRI |
>70 |
||||
|
Brand of Chips |
Bridgelux 5050/Lumileds 3030 |
||||
|
LED Qty. |
24pcs |
36pcs |
72pcs |
90pcs |
120pcs |
|
Beam Angle |
Type II-M,III-M,IV-S |
||||
|
IP Rate |
IP66 |
||||
|
Voltage |
AC 90-305V |
||||
|
Inclination Angle |
-10~10° |
||||
|
Working Environment |
-40℃~50℃,20%~90% H.R |
||||
|
Storage Temperature |
-40℃~85℃10%~90% H.R. |
||||
|
Driver Efficacy |
0.92 |
||||
|
PF |
>0.98 |
||||
|
Lifetime |
>50,000 Hours |
||||
|
Size of light pole |
φ60mm |
||||
|
SPD |
10KV/20KV |
||||
|
Size of Lamp |
607x232x122mm |
607x232x122mm |
670x280x122mm |
814x346x122mm |
814x346x122mm |
|
N.W. |
4.6KG |
4.6KG |
6.2KG |
8.9KG |
9.0KG |
LED STREET LIGHT
● Power:50W-240W Lumen:120-160lm/w IP66 3 years or 5 years warranty
● The brand led drivers and brand leds can be choose
● Quality Report can be available when the goods finished
● With the perferct delivery time usually will be 35 working days,
the fastest time could be within 30 days if needing
● CB ENEC ROHS certificated will be provided if you need
● Connect to mains according to the illustration
● Install the street lamp head and lock according to illustration
