Needle Spacing 6.5mm SMD LED Connector Chrome Nickel Spring Steel
Needle Spacing 6.5mm SMD LED Connector Chrome Nickel Spring Steel
Press Bottom Push In Waterproof Led Connector 2065-1P SMD Led Quick Connector

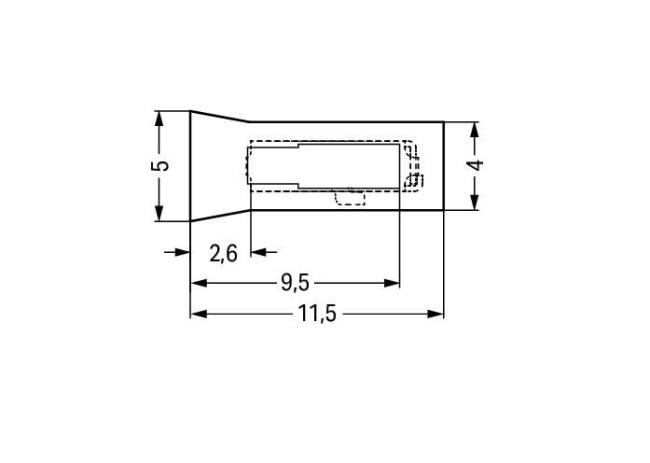

Geometrical Data
|
needle spacing |
6.5 mm / 0.256 inch |
|
width |
2.9 mm / 0.114 inch |
|
height |
2.7 mm / 0.106 inch |
|
depth |
8 mm / 0.315 inch |
|
reel belt packaging diameter |
330mm |
|
bandwidth |
16mm |
material parameters
Explain
Because the specific temperature and time of reflow soldering will vary, the wiring terminals may have a certain color deviation. However, it will not affect the use function of the wiring terminal.
Application Description:
This product is suitable for the lead-free reflow soldering process. According to DIN EN 61760-1 and DIN EN 60068-2-58 standards, the maximum temperature it can withstand is 260 ℃. As the components to be processed for specific applications vary in specifications, structures, accuracy, etc., and the welding machines and fluxes used by users are different, we recommend users conduct tests before formal welding to ensure a high fit between products and production processes.
