64 In 1 236*70mm LED Optics Lenses SMD 2835 3030 Module Series
64 In 1 236*70mm LED Optics Lenses SMD 2835 3030 Module Series

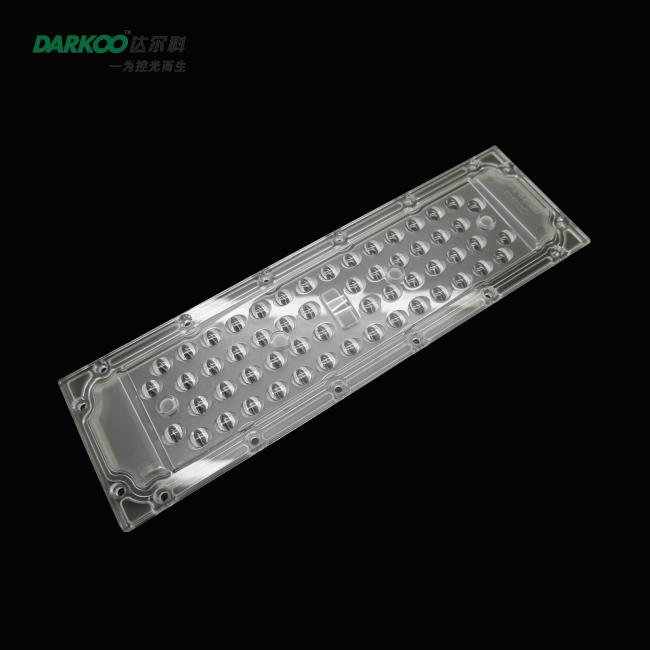

Optical LED LENS 64 in 1 street light lens 236*70 mm 2835 3030 module lens series
Specification
|
Brand |
Darkoo |
|
Product Type |
DK-236*70-151*81-Second-TP-II-S-64H1-H |
|
Product Specification |
236*70*7.5MM |
|
Angle |
151*81° |
|
Material |
Optical grade PC |
|
Temperature Resistance |
-35°C + 120°C |
|
LED Series |
3030/2835 |
|
Product Applications |
LED Streetlight Lamp |
1,The module uses high-quality 5050 leds and we provide 2 years warranty .
2,The whole module can support 30watt-60watt ,The luminous efficiency can reach 140-160lm/watt ,
3, SunshineOpto 50W PH 5050 led street light module, Whole module 300*70*40mm, common size makes it easy to replace or retrofit your old lamp.
Quick Detail :
|
Model No.: |
SUN-LD236X70-3030 |
|
Angle: |
90*120°,80*150°,80*150°Vertical for choose , |
|
Lens Size: |
236x70mm |
|
PCB Size: |
217.7x43.5x1.5mm |
|
Lens Material: |
Optical grade PC |
|
Circuit: |
8 series 8 parallel |
|
LED: |
64 pcs 3030 SMD LED |
Technical Parameters :
|
Model No. |
SUN-LD236X70-5050 |
||||
|
Power(W) |
30 |
40 |
50 |
60 |
|
|
Voltage(Vf/V) |
46.03 |
46.50 |
47.25 |
47.08 |
|
|
Current(If/mA) |
648.4 |
848.2 |
1048.3 |
1298.3 |
|
|
Color Temp Tc(K) |
4000 |
4000 |
4000 |
4000 |
|
|
Efficiency (lm/W) |
Without lens |
173.87 |
171.37 |
165.00 |
160.04 |
|
with lens |
156.53 |
150.83 |
145.90 |
143.27 |
|
|
Luminous Flux (φv/lm) |
without lens |
5189 |
6686 |
8124 |
9874 |
|
with lens |
4614 |
5949 |
7227 |
8757 |
|
|
Color Index(Ra) |
>70 |
>70 |
>70 |
>70 |
|
|
Lens beam angle |
90*120°,80*150°,80*150°Vertical, |
||||
|
Wick |
28 pcs 5050 leds |
||||
|
Protection level |
IP66 |
||||
|
Working temperature(℃) |
-30 - 50 |
||||
|
storage temperature(℃) |
-30 - 65 |
||||
|
Server Life(H) |
50000
|
||||
