1KV Environmental Protection Flame-Retardant Busbar Tube Comply with RoHS
Price:
Negotiable
MOQ:
50
Delivery Time:
10-15days
Brand:
WOER
Product Description
Features:
Manufactured from cross linked polyolefin
Used to offer insulation protection for busbar in switchgear and substation
Protects against short circuit and electrical leakage cause by small animals
Reduces busbar clearance requirements
RoHS compliant
Shrink temperature : start at 70C ,and fully recovered at 125C
Color : yellow , red , green , blue , black
Dimensions:
| Product NO |
Busbar Width ( square ) / mm |
As Supplied / mm | After Recovered / mm | Standard Package ( m / roll ) | |
| ID ( Min ) | ID ( Max ) | Wall Thickness | |||
| 30 | 30 | 31.5±1.0 | ≤15 | 0.95±0.15 | 50 |
| 35 | 35 | 36.5±1.5 | ≤18 | 0.95±0.15 | 50 |
| 40 | 4O | 41.5±1.5 | ≤20 | 0.95±0.15 | 50 |
| 45 | 45 | 41.5±1.5 | ≤23 | 1.00±0.15 | 25 |
| 50 | 50 | 51.0±2.0 | ≤25 | 1.00±0.15 | 25 |
| 60 | 60 | 60.0±3.0 | ≤30 | 1.00±0.20 | 25 |
| 65* | 65 | 65.0±3.0 | ≤33 | 1.10±0.20 | 25 |
| 70 | 70 | 70.0±3.0 | ≤35 | 1.10±0.20 | 25 |
| 75* | 75 | 75.0±3.0 | ≤38 | 1.15±0.20 | 25 |
| 80 | 80/100 | 80.0±3.0 | ≤40 | 1.20±0.20 | 25 |
| 85* | 80/100 | 85.0±3.0 | ≤43 | 1.20±0.20 | 25 |
| 90 | 100 | 90.0±4.0 | ≤45 | 1.20±0.20 | 25 |
| 100 | 100/120 | 100.0±4.0 | ≤50 | 1.30±0.20 | 25 |
| 120 | 150 | 120.0±4.0 | ≤60 | 1.30±0.20 | 25 |
| 150 | 180 | 150.0±4.0 | ≤75 | 1.30±0.20 | 25 |
| 180 | MAX | 180.0v4.0 | ≤90 | 1.46±0.20 | 25 |
| 210* | MAX | 210.0±4.0 | ≤105 | 1.46±0.20 | 25 |
| 230* | MAX | 230.0±4.0 | ≤115 | 1.46±0.20 | 25 |
| 250* | MAX | 250.0±5.0 | ≤125 | 1.46±0.20 | 25 |
Technical Data :
| Property | Test Method | Standard Value |
| Tensile Strength | GB/T 1040 | ≥8Mpa |
| Elongation at Break | GB/T 1040 | ≥300% |
| Tensile Strength after Aging | GB/T 1040 , GB/T 7141 | ≥6.4MPa(130C,168hrs) |
| Elongation at Break after Aging | GB/T 1040 , GB/T 7141 | ≥100%(130C,168hrs) |
| Hardness ( Shore A ) | ISO 868 | ≤90 |
| Dielectric Strength | IEC 60243 | ≥25kV/mm |
| Volume Resistivity | IEC 60093 | ≥1×10^14Ω·cm |
| Longitudinal Shrinkage | ASTM-D-2671 | ≤10% |
| Eccentricity | ASTM-D-2671 | ≤30%(10kv); ≤50%(35kv) |
| Water Absorption | ISO 62 |
≤0.5% |
| Flammability ( Oxygen index ) | ISO 4589 | ≥28 |

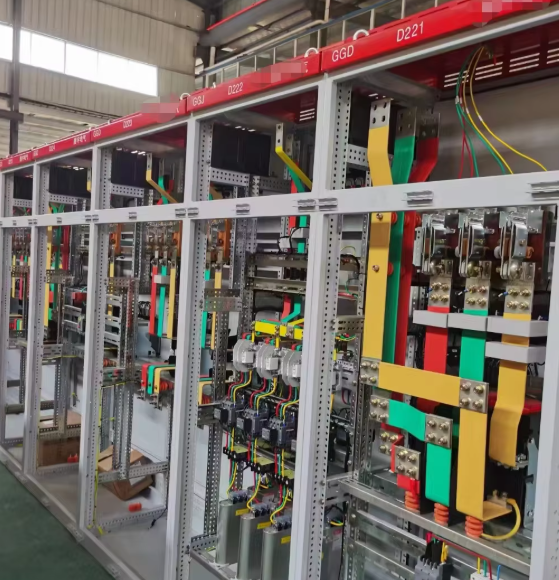

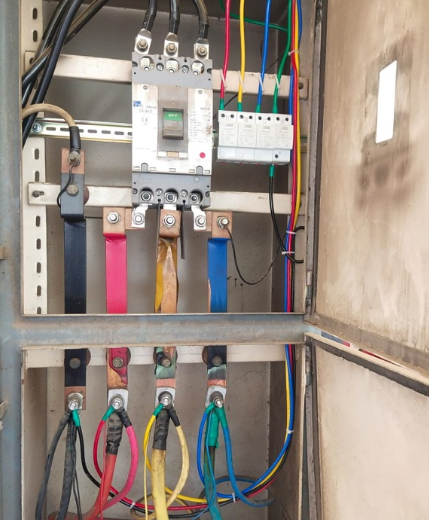

Application
