1kv Busbar Tubing Impact 2 Durable Electrical Tubing Designed for Industrial Power Systems

Product Description:

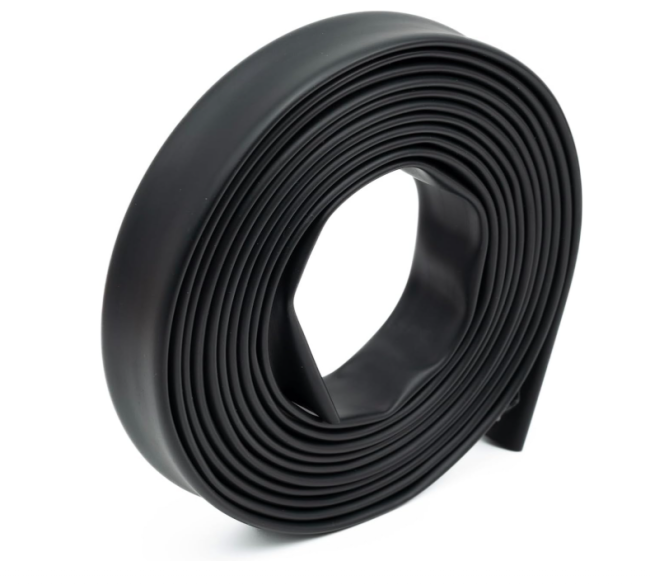

This 1KV busbar heat shrink tube is a special insulating protection product for low-voltage electrical equipment, made of high-energy electron beam radiation cross-linked polyolefin material. It complies with RoHS environmental standards and GB/T 1059-2007 standard, with a heat shrink ratio of 2:1, minimum shrink temperature ≥84℃, full shrink temperature ≥120℃ and long-term operating temperature range from -55℃ to 125℃. Featuring high dielectric strength, electrical tracking resistance, flame retardancy and low smoke emission, it has excellent flexibility and is suitable for both straight and bent busbars. It tightly adheres to the surface of copper and aluminum busbars after heating, effectively achieving insulation, anti-corrosion, anti-oxidation and mechanical protection, and can reduce phase spacing with easy installation. With a full range of specifications and standard colors of red, yellow and green optional, it is widely used in low-voltage distribution systems such as switch cabinets, distribution cabinets and substations, providing stable and reliable protection for busbars of 1KV and below.

Features:

• Product Name: Busbar Tube
• Impact Strength: ≥20KJ/m² for enhanced durability
• Voltage Rating: Up to 1000V, suitable for various applications
• Insulation: Fully insulated to ensure safety
• Specification: 40mm size for precise fitting
• Feature: Protects against accidental flashover
• Provides excellent Busbar Insulation to prevent electrical faults
• Acts as a reliable Busbar Enclosure to safeguard components
• Ensures effective Busbar Insulating properties for enhanced performance

Technical Parameters:

Shape	Rectangular
Current	High Current
Shrink Ratio	2:1
Feature	Protect Against Accidental Flashover
Manufactured From	Cross-linked Polyolefin
Specification	40mm
Impact Strength	≥20KJ/m²
Size	30-40mm
Voltage Rating	Up To 1000V
Dimensions	Customizable

Applications:

The WOER Busbar Tube, available in model numbers ranging from 15mm to 200mm, is an essential component for a variety of busbar electrical applications. Manufactured in China and certified with ISO9001, this product guarantees superior quality and reliability. Designed with cross-linked polyolefin material, these busbar tubes provide excellent insulation and protection, making them ideal for busbar covering and busbar enclosure purposes.

One of the primary application occasions for the WOER Busbar Tube is in electrical distribution systems where safety and durability are paramount. The insulated busbar tubes protect against accidental flashover, ensuring the safety of both the equipment and personnel. This makes them highly suitable for use in power plants, substations, switchgear cabinets, and industrial electrical panels where busbar electrical components need to be securely enclosed and insulated.

In industrial settings, these busbar tubes are frequently used to cover and protect copper busbars, which are critical for conducting electricity efficiently. Their impact strength of ≥20KJ/m2 ensures that they can withstand harsh conditions and mechanical stress, maintaining the integrity of the busbar enclosure over time. This durability makes them perfect for environments exposed to vibrations or potential physical impacts.

The WOER Busbar Tube is also ideal for use in commercial and residential electrical installations. It offers a neat and safe solution for busbar covering, preventing accidental contact and electrical hazards. Its packaging in cartons facilitates easy handling and transportation, and with a supply ability of 100000 meters per day, WOER can meet both small and large-scale project demands efficiently.

With a minimum order quantity of just 1 meter and negotiable pricing, customers can tailor their purchases according to project requirements. The delivery time of 2-4 days coupled with payment terms of TT in advance ensures a smooth and prompt procurement process. Whether you are upgrading existing electrical systems or designing new installations, WOER's busbar tubes provide an effective and safe solution for busbar electrical protection and enclosure needs.

Product No.	Busbar Width (square)/mm	As Supplied/mm		After Recovered/mm		Standard Package (m/roll)
		ID (Min)	Wall Thickness	ID (Max)	Wall Thickness
1kV WMPG 30	30	31.5±1.0	0.50±0.15	≤15	0.95±0.15	50
1kV WMPG 35	35	36.5±1.5	0.50±0.15	≤18	1.00±0.15	50
1kV WMPG 40	40	41.5±1.5	0.55±0.15	≤20	1.00±0.15	25
1kV WMPG 45	45	41.5±1.5	0.55±0.15	≤23	1.00±0.15	25
1kV WMPG 50	50	51.0±2.0	0.55±0.15	≤25	1.00±0.15	25
1kV WMPG 60	60	60.0±3.0	0.60±0.20	≤30	1.30±0.20	25
1kV WMPG 65*	65	65.0±3.0	0.60±0.20	≤33	1.30±0.20	25
1kV WMPG 70	70	70.0±3.0	0.65±0.20	≤35	1.30±0.20	25
1kV WMPG 75*	75	75.0±3.0	0.65±0.20	≤38	1.30±0.20	25
1kV WMPG 80	80/100	80.0±3.0	0.65±0.20	≤40	1.46±0.20	25
1kV WMPG 85*	80/100	85.0±3.0	0.65±0.20	≤43	1.46±0.20	25
1kV WMPG 90	100	90.0±4.0	0.65±0.20	≤45	1.46±0.20	25
1kV WMPG 100	100/120	100.0±4.0	0.65±0.20	≤50	1.46±0.20	25
1kV WMPG 120	150	120.0±4.0	0.65±0.20	≤60	1.46±0.20	25
1kV WMPG 150	180	150.0±4.0	0.65±0.20	≤75	1.46±0.20	25
1KV WMPG 180	MAX	180.0±4.0	0.65±0.20	≤90	1.46±0.20	25
1KV WMPG 210*	MAX	210.0±4.0	0.65±0.20	≤106	1.46±0.20	25
1kV WMPG 230*	MAX	230.0±4.0	0.65 ±0.20	≤115	1.46±020	25
1KV WMPG 250*	MAX	250.0±5.0	0.65±0.20	≤125	1.46±0.20	25
1kV WMPG 300*	MAX	300.0±5.0	0.65±0.20	≤160	1.46±0.20	25
