Black 13mm Heat Shrink Tubing Cross Linked PE Dual Wall Adhesive

Price Negotiable

Price: 0.05

MOQ: 1m

Delivery Time: 1-9days

Brand: Long

Product Description

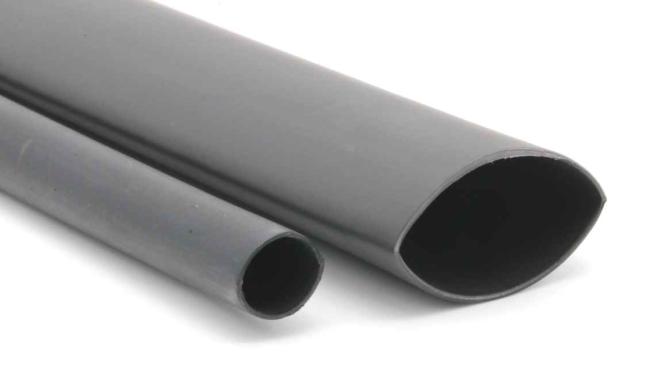

Black Heavy Wall Adhesive Lined Cross Linked PE Heat Shrink Tube

Heavy wall adhesive-lined heat shrink tubing provides maximum reliability for insulating and protecting cable joints and terminations

Features

● 3:1 shrink ratio, not flame-retardant

● Withstands severe mechanical requirements of U.R.D., submersible and direct burial installations

● High impact, abrasion, corrosion and chemical resistance

● Rated for 1kv, 90℃æ application

● Thermoplastic adhesive liner provides complete environmental protection and installation

● Continuous operating temperature:-45℃- 125℃

Property	Test Method	Stantard	Typical Performance
Tensile Strengtn(MPa)	ASTM D2671	≥14	15
Elongation(%)	ASTM D2671	≥400	450
Tensile Strengtn after aging (MPa)	UL224 158℃X168hr	≥12	12.5
Elongation after aging(%)	UL224 158℃X168hr	≥300	350
Dieletric strength(kv/mm)	IEC243	≥15	17.5
Volume resistivity(Ω.cm)	ASTM D876	≥1X1014	2.5X1014

Dimensions

Size	Expanded	After Recovery				Standard Package M/pc
	Internal Diameter mm	Internal Diameter mm	Jacket Thickness mm	Adhesive Thickness mm	Total Wall Thickness mm	Standard Package M/pc
8.0/2.0	8,0	2.0	1.80±0.20	0.55±0.10	2.35±0.25	1.22
9.0/3.0	9,0	3.0	2.00±0.20	0.55±0.10	2.55±0.25	1.22
13.0/4.0	13,0	4.0	2.30±0.20	0.55±0.10	2.85±0.25	1.22
16.0/5.0	16,0	5.0	2.30±0.20	0.60±0.10	2.90±0.25	1.22
22.0/6.0	22,0	6.0	2.50±0.20	0.60±0.15	3.10±0.30	1.22
28.0/6.0	28,0	6.0	2.70±0.20	0.70±0.20	3.40±0.35	1.22
33.0/8.0	33,0	8.0	2.80±0.30	0.80±0.15	3.60±0.35	1.22
38.1/12.0	38,1	12.0	3.10±0.30	0.80±0.15	3.90±0.35	1.22
43.2/12.0	43,2	12.0	3.50±0.30	0.80±0.15	4.30±0.40	1.22
55.0/16.0	55,0	16.0	3.60±0.30	0.80±0.15	4.40±0.40	1.22
65.0/19.0	65,0	19.0	3.60±0.30	0.80±0.15	4.30±0.40	1.22
75.0/22.0	75,0	22.0	3.60±0.30	0.80±0.15	4.30±0.40	1.22
85.0/25.0	85,0	25.0	3.60±0.30	0.80±0.15	4.30±0.40	1.22
95.0/30.0	95,0	30.0	3.60±0.30	0.80±0.15	4.30±0.40	1.22
105.0/30.0	105,0	30.0	3.80±0.30	0.80±0.15	4.60±0.40	1.22
120.0/39.0	120,0	39.0	3.80±0.30	0.80±0.15	4.30±0.40	1.22
140.0/42.0	140,0	42.0	3.80±0.30	0.80±0.15	4.30±0.40	1.22
160.0/50.0	160,0	50.0	3.80±0.30	0.80±0.15	4.30±0.40	1.22
180.0/60.0	180,0	60.0	3.80±0.30	0.80±0.15	4.30±0.40	1.00
200.0/69.0	200,0	69.0	3.80±0.30	0.80±0.15	4.30±0.40	1.00
230.0/78.0	230,0	78.0	4.10±0.30	0.80±0.15	4.90±0.40	1.00

Technical Data

Property	Test Method	Stantard	Typical Performance
Tensile Strengtn(MPa)	ASTM D2671	≥14	15
Elongation(%)	ASTM D2671	≥400	450
Tensile Strengtn after aging (MPa)	UL224 158℃X168hr	≥12	12.5
Elongation after aging(%)	UL224 158℃X168hr	≥300	350
Dieletric strength(kv/mm)	IEC243	≥15	17.5
Volume resistivity(Ω.cm)	ASTM D876	≥1X1014	2.5X1014

Adhesive

Property	Test Method	Stantard
Water Absorption	ASTM D570	≤0.2%
Sofening Point(℃)	ASTM E28	90±5
Strength of pearing(PE)	ASTM D 1000	120N/25mm
Strength of pearing(AL)	ASTM D 1000	80N/25mm

FAQ

Professional Production Quality is Reliable

Q1 . Which certifications or test reports do you have?

A : We have UL,ROHS and REACH.

Q2 . How to ship my order? Is it safe?

A : For small package, we will send it by Express,such as Fedex, UPS,TNT, DHL and so on.

For big packages, we will send them by Air or By sea or by Train. We will use good packing and ensure the safety. We will be responsible to any product damage caused on delivery.”

Q3 . What about your delivery time?

A : We have a lot of products in stock. We can send the stock products in 3 work days.

If without stock,or stock is not enough, we will check the delivery time with you.” (Usually is 3-7days).

Q4 . Can you provide samples? Are the samples free?

A : Yes. We can provide samples.

Usually for our standard products with stock, we can supply samples free for testing.

Q5 . Could I put my own logo on it?

A : Sure, of course, we are a professional manufacture and have over 10 years OEM experience.
