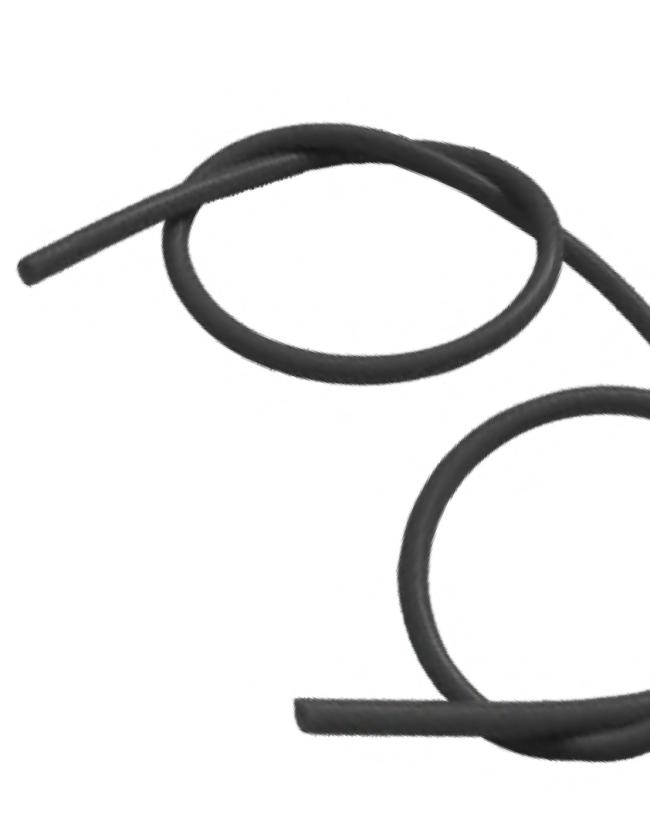

EPDM Flexible Heat Shrink Sleeve 6.0mm 125C Black Sleeving
Black Flexible EPDM Heat Shrink Tubing 6.0mm Use For Protect Cable
Flexible EPDM Heat-Shrinkable Tubing
Suitable for jacketing and protection to cables, pipes, and connectors . Used for protecting solder joints, wires, cables, terminals, connectors and various electronic apparatus.
Features
● 2:1 shrink ratio
● Environmental friendly
● Outstanding low and high-temperature
● Higher shrink ratio than heat shrinkable tubes
● Resists acids and alkalis
● Resists chemical solvent
● Resists ultraviolet light and weather aging
● Resists ozone
● Minimum shrink temperature:100℃
● Minimum full recovery temperature: 135℃
● Continuous operating temperature:-45℃- 125℃
● Standard color: Black
Dimensions
| Size | Expanded | After Recovery |
Standard Package M/Spool |
|
| Internal Diameter Min(mm) | Internal Diameter Max(mm) | Wall Thickness mm | ||
| 6 | 6.5 | 3 | 0.80±0.15 | 50 |
| 8 | 8.5 | 4 | 0.90±0.15 | 50 |
| 10 | 10.0 | 5 | 1.20±0.15 | 50 |
| 12 | 12.0 | 6 | 1.20±0.15 | 20 |
| 16 | 16.0 | 8 | 1.50±0.20 | 20 |
| 20 | 20.0 | 10 | 1.50±0.20 | 20 |
| 30 | 30.0 | 15 | 1.80±0.20 | 20 |
| 40 | 40.0 | 20 | 2.00±0.15 | 20 |
| 50 | 50.0 | 25 | 2.00±0.20 | 10 |
| 60 | 60.0 | 30 | 2.00±0.30 | 10 |
| 70 | 70.0 | 35 | 2.00±0.30 | 10 |
Technical Data
| Property | Test Method | Typical Performance |
| Tensile Strengtn(MPa) | GB/T 528 | ≥14 |
| Elongation(%) | GB/T 528 | ≥400 |
| Dieletric strength(kv/mm) | IEC243 | ≥12 |
| Volume resistivity(Ω.cm) | ASTM D876 | ≥2X1013 |
