2.0mm 3/1 Heat Shrink Insulation Tube , Blank Heat Shrink Wire Marker
Blank Heat Shrinkale Identification Sleeves Heat Shrink Marker Sleeve
Heat Shrinkable Identification Sleeves

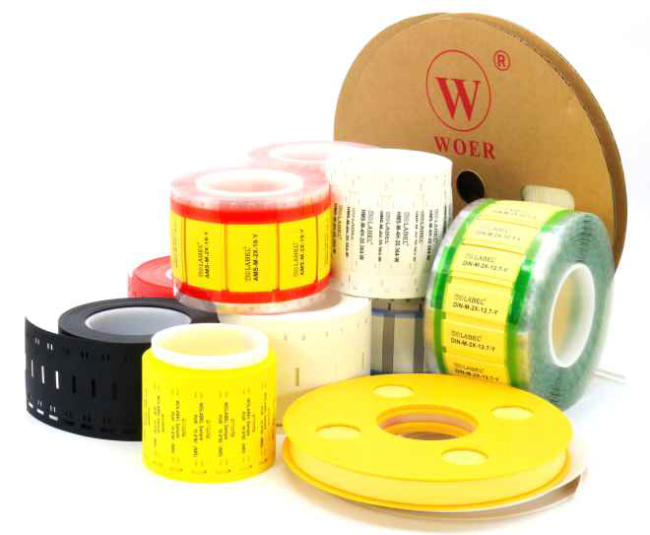

Description: RSFR marker sleeve is a flattened, heat-shrinkable tubing intended for wire and cable harness identification. It can also be used for applications where limited fire hazard characteristics are necessary. When RSFR is printed with Woer recommended printers and ink ribbons, the marks remain legible, durable, even when exposed to abrasion, aggressive cleaning solvents, and industrial fluids.Standard: SAE-AS81531, MIL-STD-202F/Method215J, UL224, RoHS.
Features
|
Material Application range Operating temperature range |
The sleeving shall be fabricated from irradiated, thermally stabilized and flame retarded modified polyolefin compound containing no halogens or cadmium in the formulation. commercial .Industrial environment -55~+125°C |
| Minimum recovery temperature | +125°C |
| Maximum storage temperature | +50°C |
| Shrink ratio | 2:1,3:1 |
| Color | White, Yellow, other color is available if ordered |
| Printing mode | Single sided printing and Double sided printing formats available |
| Supplied mode | Either Continuous type or Ladder format type is available |
| Recommended Printers | Thermal transfer printer |
| Recommended Ribbons | N85 resin ribbon, Black, 100mm(width)*300m(length) |
Dimensions
Shrink ratio-2X
| Part Number | As Supplied (mm) | After Recovery(mm) | |||
|
ID (D) |
Flatten Width (W) |
Double Wall Thickness |
ID (d) |
Single Wall Thickness | |
| AMS-M-2X-1.6- | 2.0010.20 | 3.7±0.3 | 0.48±0.10 | <0.79 | 0.45±0.06 |
| AMS-M-2X-2.4- | 2.79±0.20 | 5.0±0.3 | 0.48±0.10 | M1.18 | 0.49±0.06 |
| AMS-M-2X-3.2- | 3.64±0.23 | 6.310.4 | 0.48±0.10 | “59 | 0.51±0.06 |
| AMS-M-2X-4.8- | 5.2610.25 | 8.9±0.4 | 0.49±0.10 | 52.36 | 0.54±0.06 |
| AMS-M-2X-6.4- | 6.9210.28 | 11.5±0.4 | 0.50±0.10 | <3.18 | 0.56±0.06 |
| AMS-M-2X-9.5- | 10.2±0.32 | 16.7±0.5 | 0.51±0.11 | W4.75 | 0.59±0.06 |
| AMS-M-2X-12.7- | 13.5±0.36 | 21.8±0.6 | 0.52±0.11 | <6.35 | 0.60±0.07 |
| AMS-M-2X-19- | 20.110.40 | 32.2±0.6 | 0.53±0.11 | 59.53 | 0.62±0.07 |
| AMS-M-2X-25- | 26.710.45 | 42.5±0.7 | 0.55±0.12 | 引2.7 | 0.63±0.07 |
| AMS-M-2X-38- | 39.8±0.51 | 63.2±0.8 | 0.57±0.12 | M19.1 | 0.64±0.07 |
| AMS-M-2X-51- | 53.0±0.56 | 83.9±0.9 | 0.58±0.13 | M25.4 | 0.64±0.08 |
| AMS-M-2X-76- | 79.410.56 | 125.3±1.0 | 0.59±0.13 | <38.1 | 0.64±0.09 |
Shrink ratio-3X
| Part Number | As Supplied (mm) | After Recovery(mm) | |||
|
ID (D) |
Flatten Width (W) |
Double Wall Thickness |
ID (d) |
Single Wall Thickness | |
| AMS-M-3X-1.6- | 2.00±0.20 | 3.7±0.3 | 0.47±0.10 | <0.53 | 0.52±0.06 |
| AMS-M-3X-2.4- | 2.79±0.20 | 5.0±0.3 | 0.47±0.10 | 50.79 | 0.57±0.06 |
| AMS-M-3X-3.2- | 3.6410.23 | 6.3±0.4 | 0.48±0.10 | 引.06 | 0.61±0.06 |
| AMS-M-3X-4.8- | 5.2610.25 | 8.9±0.4 | 0.49±0.10 | M1.59 | 0.67±0.06 |
| AMS-M-3X-6.4- | 6.9210.28 | 11.5±0.4 | 0.50±0.10 | M2.13 | 0.71±0.06 |
| AMS-M-3X-9.5- | 10.2±0.32 | 16.7±0.5 | 0.52±0.11 | M3.18 | 0.77±0.06 |
| AMS-M-3X-12.7- | 13.5±0.36 | 21.8±0.6 | 0.53±0.11 | ,4.23 | 0.80±0.07 |
| AMS-M-3X-19- | 20.110.40 | 32.2±0.6 | 0.55±0.11 | 56.35 | 0.84±0.07 |
| AMS-M-3X-25- | 26.710.45 | 42.5+0.7 | 0.565±0.12 | <8.47 | 0.86±0.07 |
| AMS-M-3X-38- | 39.810.51 | 63.2±0.8 | 0.57±0.12 | M12.9 | 0.89±0.07 |
| AMS-M-3X-51- | 53.010.56 | 83.9±0.9 | 0.57±0.12 | S17.2 | 0.90±0.08 |
| AMS-M-3X-76- | 79.4±0.56 | 125.3±1.0 | 0.57±0.13 | £25.8 | 0.92±0.09 |
