45mm Heat Shrink Insulation Tube 60mm Optical Fusion Splice Heat Shrink Tubes
45mm 60mm Optical Fiber Fusion Splice Protection Sleeves 1000 Pieces Per Bag

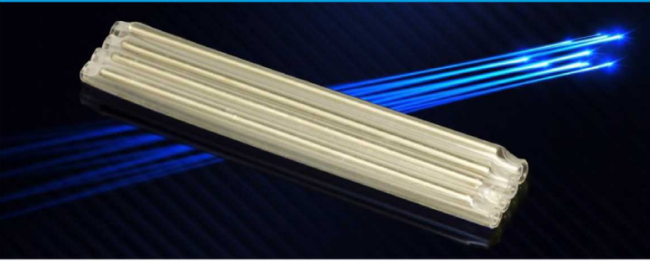

Optical Fiber Fusion Splice Protection Sleeves.
WRSGX is designed to protect the bare fiber portion of a fusion splice, which provides mechanical and environmental protection for fusion splices of
single fiber.
Features
• Excellent reinforcement of fusion splicing portion
• Reliable protection under any environmental conditions
• Fits into most splice holders
• Attenuation is almost zero, the signal transfer is more stable and faster
• Quick shrink-down time & easy installation, reducing damage risk to optical fiber.
Components:
• clear outer heat-shrink tube
• low temperature hot-melt adhesive sleeve to encapsulate the splice
• stainless steel rod for single fiber splices to ensure proper alignment and rigidity
® Hot-melt adhesive
② Stainless steel rod
③ Heat-shrinkable tube
Dimensions
| Type | Stainless steel | Hot-melt adhesive sleeve | After recovery | Total length | |
| O.D | Length | id.(d) | O.D | L | |
| 1.0 | 55 | 0.5 | 2.0 | 60 | |
| 1.0 | 50 | 0.5 | 2.0 | 55 | |
| Small | 1.0 | 45 | 0.5 | 2.0 | 50 |
| size | 1.0 | 40 | 0.5 | 2.0 | 45 |
| 1.0 | 35 | 0.5 | 2.0 | 40 | |
| 1.2 | 55 | 1.3 | 2.5 | 60 | |
| 1.2 | 50 | 1.3 | 2.5 | 55 | |
| Normal | 1.2 | 45 | 1.3 | 2.5 | 50 |
| size | 1.2 | 40 | 1.3 | 2.5 | 45 |
| 1.2 | 35 | 1.3 | 2.5 | 40 | |
| 1.5 | 55 | 1.5 | 3.0 | 60 | |
| 1-5 | 50 | 1.5 | 3.0 | 55 | |
| Large | 1.5 | 45 | 1.5 | 3.0 | 50 |
| size | 1.5 | 40 | 1.5 | 3.0 | 45 |
| 1.5 | 35 | 1.5 | 3.0 | 40 | |
