3 Ports Polarization Insensitive Fiber Optical Circulator
Price:
negotiable
MOQ:
Negotiable
Delivery Time:
Negotiable
Brand:
Corephy
Product Description
3 Ports Polarization-Insensitive Fiber Optical Circulator
Product Description

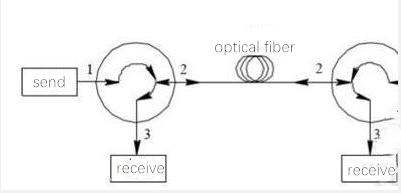

A multiport optical device with nonreciprocal characteristics.When the optical signal is input by any port, it can be output with small loss from the next port in the numerical order as shown in the figure. However, the loss from that port to all other ports is very large, which makes it an unconnected port.The insertion loss between the communicating ports of the circulator is small (for example, 1 to 2dB) and the isolation between the non-communicating ports is large (for example, 30dB).
Feature
* High Channel Isolation
* Low Insertion Loss
* High Return Loss
* Low PDL
* High Stability and Reliability
* Compact in-Line Package
* Epoxy Free Optical Patch.
Application
* Optical Fiber Amplifier
* CATV Optical Fiber Link
* Optical Fiber System testing
* Wavelength Add/Drop
* Dispersion Compensation
* Bi-Direction Communication
Product images
|
Item
|
Grade P
|
Grade A
|
|
Grade
|
Port1 To Port2;Port2 To Port3
|
|
|
Operating Wavelength
|
1260-1610nm
|
|
|
Max Isolation
|
50dB
|
|
|
Mim Isolation
|
40dB
|
|
|
Directivity
|
50dB
|
|
|
PDL
|
＜0.15dB
|
|
|
PMD
|
＜0.1ps
|
|
|
Max Operating Power
|
300mw
|
|
|
Dimension (mm)
|
Φ5.5xL38
|
|
★ Order Information
|
|
|
|
|
|
|
|
|
Port
|
Wavelength
|
Grade
|
Package
|
Fiber Diameter
|
Fiber Length
|
Connector
|
|
A=3 Ports
|
A=1310nm
|
A=P Grade
|
A=Steel Tube
|
A=250μm
|
A=1m
|
A=None
|
|
B=4 Ports
|
B=1550nm
|
|
B=ABS Box Module
|
B=900μm
|
B=2m
|
B=FC/APC
|
|
/
|
/
|
|
C=Specify
|
C=2.0mm
|
C=Specify
|
C=FC/UPC
|
|
|
|
|
|
D=3.0mm
|
|
D=SC/APC
|
|
|
|
|
|
/
|
|
E=SC/UPC
|
|
|
|
|
|
|
|
F=LC/APC
|
|
|
|
|
|
|
|
G=LC/UPC
|
|
|
|
|
|
|
|
H=ST
|
|
|
|
|
|
|
|
I=Specify
|
