Accumulator Type Single Station 1 Die Head Plastic Blow Molding Machine For Big Size Plastic Pallet or Tray
Accumulator Type Single Station 1 Die Head Plastic Blow Molding Machine For Big Size Plastic Pallet or Tray

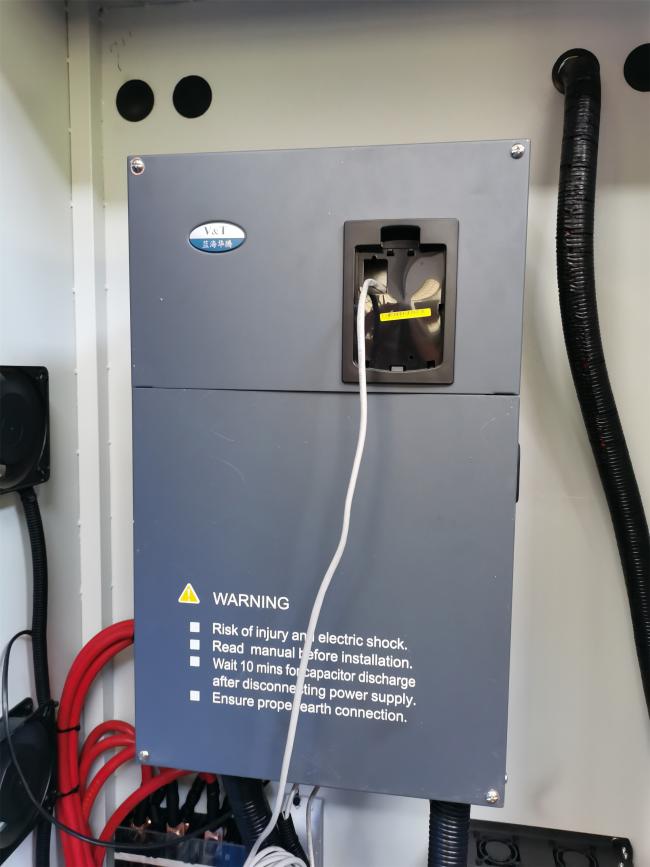

The plasticizing system mainly consists of: twisted material frequency conversion motor, gear reducer, barrel and screw, cast aluminum heater,
cooling fan, fan seat, hopper, die, die lifting device, platform, V-belt pulley, V belt . Its function is to properly heat, extrude, shear, mix and
plasticize the plastic material and then feed it into the extrusion die to form a glue tube . When the system is working, the barrel is heated at a
high temperature! Please pay attention to safety! Prevent burns!
Accumulator Type
SLBC series: (German model)
1: linear guide support single frame, finite element analysis of the design, to ensure adequate clamping force, not up mode.
2: large opening stroke, central locking, locking force equilibrium, no deformation.With Synchronous Mold Clamping Frame Gear Device.
| MATERIAL | PE,PP,EVA,ABS,PS | |
| MAX CONTAINER CAPACITY | L | 160 |
| OUPUT(DRY CYCLE) | PC/HR | 300 |
| MACHINE DIMENSION (LxWxH ) | MM | 7500x4200x6200 |
| TOTAL WEIGHT | TON | 22T |
| CLAMPING UNIT | ||
| CLAMPING FORCE | KN | 800 |
| PLATEN OPENING STROKE | MM | 600-1400 |
| PLATEN SIZE(WxH) | MM | 1400x1600 |
| MAX MOULD SIZE(WxH) | MM | 1200x1900 |
| MOLD THICKNESS | MM | 610-880 |
| EXTRUDER UNIT | ||
| SCREW DIAMETER | MM | 120 |
| SCREW L/D RATIO | L/D | 25 |
| MELTING CAPACITY | KG/HR | 280 |
| BARREL HEATING POWER | KW | 42 |
| NUMBER OF HEATING ZONE | ZONE | 6 |
| EXTRUDER MOTOR RATED POWER | KW | 90 |
| DIE HEAD | ||
| NUMBER OF DIE HEATING ZONE | ZONE | 5 |
| POWER OF DIE HEATING | KW | 38 |
| MAX DIE-PIN DIAMETER | MM | 500 |
| POWER | ||
| MAX DRIVE POWER | KW | 125 |
| TOTAL POWER | KW | 180 |
| FAN POWER OF SCREW | KW | 4.8 |
| AIR PRESSURE | MPA | 0.8-1.2 |
| AIR CONSUMPTION | M3/MIN | 0.8 |
| AVERAGE ENERGY CONSUMPTION | KW | 72 |
| ACCUMULATOR CAPACITY | L | 30 |
