Single Station 30l Automatic Bottle Blow Molding Machine 600 Bph Bottle Extrusion
1 Die Head Accumulator Type Single Station Plastic Blow Molding Machine For Plastic Chair
SLBC series: (German model) optional with multi function under blowing mechanism, automatic machine to take the product of a variety of
auxiliarydevice, realize the production process is highly automated.
The opening and closing mechanism is a component that ensures that the mold is reliably closed and the mold is opened. Therefore, the
performance of the opening and closing mechanism is directly related to the molding quality of the product. When it is found that the mold
clamping surface is not dead (upper opening or lower opening), it can be appropriately adjusted by the nut on the lower supporting shaft.
| SPECIFICATION | SLBC-80 | |
| MATERIAL | PE,PP,EVA,ABS,PS | |
| MAX CONTAINER CAPACITY | L | 30 |
| OUPUT(DRY CYCLE) | PC/HR | 600 |
| MACHINE DIMENSION (LxWxH ) | MM | 5300x3000x3500 |
| TOTAL WEIGHT | TON | 11T |
| CLAMPING UNIT | ||
| CLAMPING FORCE | KN | 200 |
| PLATEN OPENING STROKE | MM | 350-850 |
| PLATEN SIZE(WxH) | MM | 750x780 |
| MAX MOULD SIZE(WxH) | MM | 600x1000 |
| MOLD THICKNESS | MM | 360-500 |

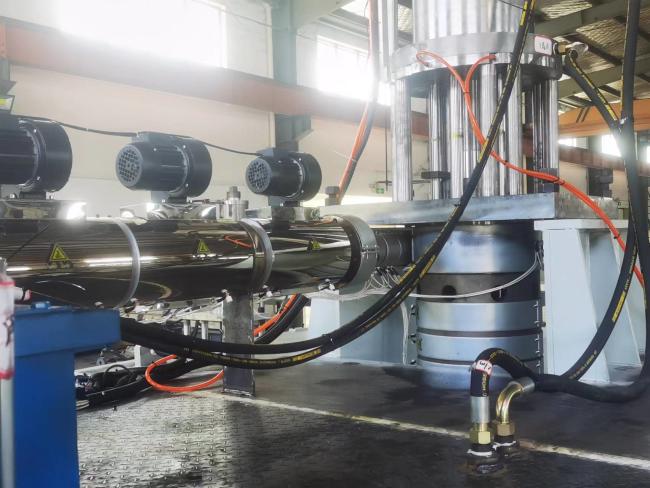

| EXTRUDER UNIT | ||
| SCREW DIAMETER | MM | 80 |
| SCREW L/D RATIO | L/D | 25 |
| MELTING CAPACITY | KG/HR | 120 |
| BARREL HEATING POWER | KW | 16 |
| NUMBER OF HEATING ZONE | ZONE | 4 |
| EXTRUDER MOTOR RATED POWER | KW | 30 |
| DIE HEAD | ||
| NUMBER OF DIE HEATING ZONE | ZONE | 4 |
| POWER OF DIE HEATING | KW | 15 |
| MAX DIE-PIN DIAMETER | MM | 250 |
| POWER | ||
| MAX DRIVE POWER | KW | 42 |
| TOTAL POWER | KW | 82 |
| FAN POWER OF SCREW | KW | 3.2 |
| AIR PRESSURE | MPA | 0.8-1.2 |
| AIR CONSUMPTION | M3/MIN | 0.8 |
| AVERAGE ENERGY CONSUMPTION | KW | 32 |
| ACCUMULATOR CAPACITY | L | |
