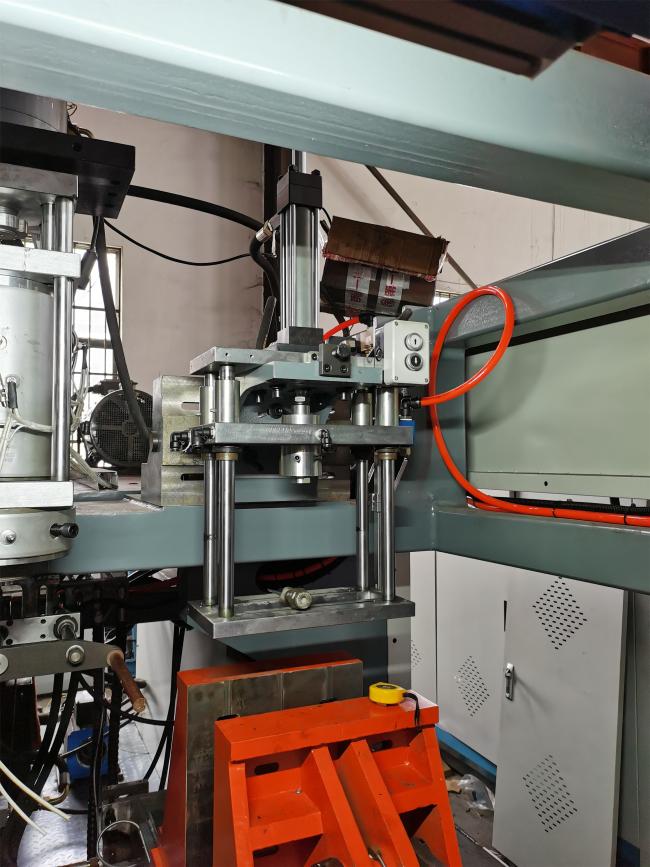

2 Head 5L PE Jar Blow Moulding Machine Fully Automatic Blowing
U series High Speed 1 Layer Double Station 2 Die head Blow Molding Machine for Plastic Wide-mouth Bottles
SLBU series:
1: this machine is suitable for the production of 200ML -5L plastic hollow products.
2:The mode impact is controlled by the pressure on the slow frame and the buffered one-way throttle valve at the front end of the cylinder. When
there is impact sound on the upper shifting die, the pressure on the slow frame should be reset to reduce the pressure. The adjusting screw on
the flow valve is screwed clockwise and adjusted until the upper shifting mold has no impact sound. Pay attention to safety when adjusting the
upper die throttle valve. The pressure on the slow frame is also the pressure for manually moving the upper mold. If there is no manual
movement, the pressure on the slow frame can be set high. However, the pressure on the slow frame should be set low during fully automatic
operation. The general pressure analog quantity is set between 100 and 300.
| SPECIFICATION | SLBU-65 | |
| MATERIAL | PE,PP,EVA,ABS,PS | |
| MAX CONTAINER CAPACITY | L | 5 |
| NUMBER OF DIE HEAD | SET | 1,2,3,4,6,8 |
| OUPUT(DRY CYCLE) | PC/HR | 1000x2 |
| MACHINE DIMENSION (LxWxH ) | MM | 4000x2300x2200 |
| TOTAL WEIGHT | TON | 6.5T |
| CLAMPING UNIT | ||
| CLAMPING FORCE | KN | 65 |
| PLATEN OPENING STROKE | MM | 220-520 |
| PLATEN SIZE(WxH) | MM | 400x430 |
| MAX MOULD SIZE(WxH) | MM | 460x430 |
| MOLD THICKNESS | MM | 255-280 |
| EXTRUDER UNIT | ||
| SCREW DIAMETER | MM | 65 |
| SCREW L/D RATIO | L/D | 25 |
| MELTING CAPACITY | KG/HR | 70 |
| BARREL HEATING POWER | KW | 15 |
| NUMBER OF HEATING ZONE | ZONE | 3 |
| EXTRUDER MOTOR RATED POWER | KW | 15 |
| DIE HEAD | ||
| NUMBER OF DIE HEATING ZONE | ZONE | 2-5 |
| POWER OF DIE HEATING | KW | 6 |
| CENTER DISTANCE OF DOUBLE DIE | MM | 130 |
| CENTER DISTANCE OF THREE DIE | MM | 110 |
| CENTER DISTANCE OF FOUR DIE | MM | 100 |
| CENTER DISTANCE OF SIX DIE | MM | 80 |
| MAX DIE-PIN DIAMETER | MM | 180 |
| POWER | ||
| MAX DRIVE POWER | KW | 18 |
| TOTAL POWER | KW | 50 |
| FAN POWER OF SCREW | KW | 2.4 |
| AIR PRESSURE | MPA | 0.6 |
| AIR CONSUMPTION | M3/MIN | 0.4 |
| AVERAGE ENERGY CONSUMPTION | KW | 18 |
