Beverage 4000B/H Hot Juice Filling Machine Light Hydraulic Cylinder
4000B/H Juice Hot Filling Machine With Light Checker And Hydraulic Cylinder
Product Description:
CGF series juice filling machine is mainly used in the beverage filling production line. The machine combines washing, filling and capping in one working table, suitable for filling juice. This juice bottle filling machine could fill the juice with fruit pulp. The bottle neck hanging technology makes the process of changing bottles easily by only adopting the height of conveyor chain. The filling part adopts hot filling technology with water-supplying system under constant presssure, which makes filling process faster and more stable.
Production Advantage
- Using the wind sent access and move wheel in the bottle directly connected technology; canceled screw and conveyor chains, this enable the change the bottle-shaped become easier.
- Bottles transmission adopt clip bottleneck technology, bottle-shaped transform not need to adjust the equipment level, only change related the curved plate, wheel and nylon parts is enough..
- The specially designed stainless steel bottle washing machine clip is solid and durable, no touch with the screw location of bottle mouth to avoid secondary pollution.
- High-speed large gravity flow valve filling valve, filling fast, filling accurate and no liquid lose.
- Spiraling decline when output bottle, transform bottle shape no need to adjust the height of conveyor chains.
Fill drink supply and manufacture the followings machines
| Model | CGF12-12-4 |
| Capacity (B/H) | 4000 |
| Bottle size | Neck :φ50-100mm:Height:150-320mm |
| Water Pressure | 0.18-0.25Mpa |
| Washing Water consumption(kg/h) | 1000 |
| Washing station | 12 |
| Dripping station | 2-2-2 |
| Filling precision | ＜+1MM |
| Air pressure | 0.5Mpa |
| Air consumption | 0.3m3/min |
| Power(kw) | 4motor |
| Weight(kg) | 3500 |
| Dimension(L*W*H) | 2350*1850*2450 mm |

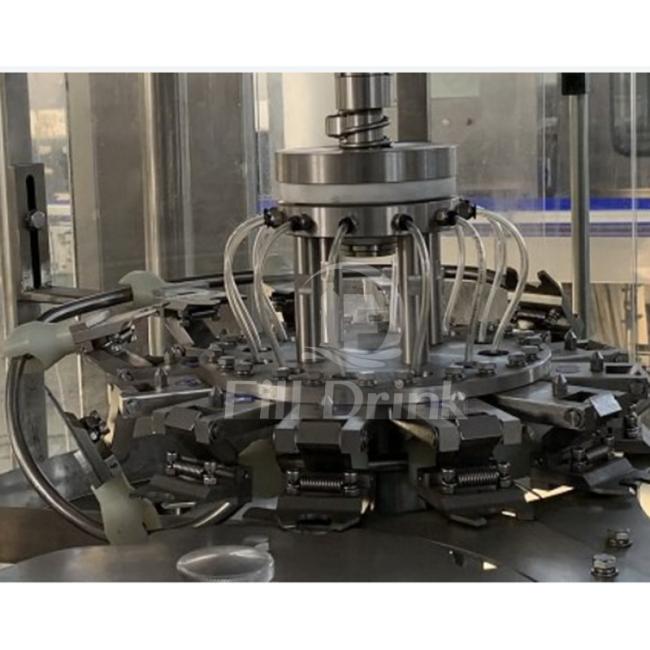

Product Photos:
After sale service
1. We send the engineers to help installing, commissioning and training, the engineers start from our factory area.
2. We supply below necessary documents with the machine:
a. Machine layout
b. Electricity diagram
c. Machine certificate
d. General manual book/maintenance book
