Dual-Beam Bridge-Type Four-Blade Stone Cutting & Milling Machine with 350-600mm Blade Diameter and 15*2/18.5*2kw Main Motor
Price:
To Be Negotiable
MOQ:
1
Delivery Time:
15 Days
Brand:
Xianda Machinery
Product Description
BLMM-1800MAX-2D | Dual-Beam Bridge-Type Four-Blade Stone Cutting & Milling Machine
Heavy-Duty 3-Axis CNC Processor for Linear, Square Baluster & Special Kerbstone – One-Piece Minimum Order
1. Machine Overview

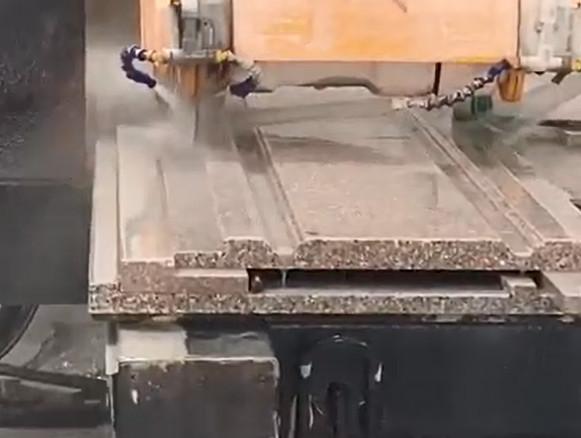

The BLMM-1800MAX-2D is a bridge-type, four-blade, dual-beam CNC stone-cutting and milling centre engineered for high-efficiency, high-accuracy, high-stability production of:
-
Linear stone pieces
-
Square balusters
-
Special-shaped kerbstones
One-pass sequence: rough cut → fine cut → finish mill with 3-axis CNC control and zero-backlash linear-guide + ball-screw motion.
2. Technical Specifications
| Parameter | Unit | BLMM-1800 | BLMM-1800-2D |
|---|---|---|---|
| Blade diameter | mm | 350-600 | 350-600 |
| Max lifting travel of cutting frame | mm | 450 | 450 |
| Worktable Size | mm | 1800*3500 | 1800*3500*2PC |
| Max processing length | mm | 3500 | 3500 |
| Main motor | kw | 15/18.5 (Optional) | 15*2/18.5 *2(Optional) |
| Gross motor | kw | 21/24.5 (Optional) | 40/47 (Optional) |
| Outline dimension | mm | 5300*3950*2550 | 5800*5300*2550 |
| Water Consumption | m³/h | 6 | 6 |
2. Key Equipment Features
3-Axis CNC Control
4-Blade Bridge Array
Guide-Pillar + Copper-Bush Lifting
Linear-Guide + Ball-Screw Feed
Heavy Bridge Frame
High-Stroke Z-Axis
3-Axis CNC Control
4-Blade Bridge Array
Guide-Pillar + Copper-Bush Lifting
Linear-Guide + Ball-Screw Feed
Heavy Bridge Frame
High-Stroke Z-Axis
CNC System & Software
-
Controller: CNC 3-axis
-
Screen: 15″ touch
-
Programming:
-
Import .dxf, .stp
-
Parametric kerb & baluster wizard
-
Teach-in for one-off artistic shapes
-
-
Functions: tool-life monitor, collision guard, remote VPN diagnostics
Package, Delivery & Warranty
-
Package: Steel-frame + plywood crate, export standard
-
Delivery: 25–30 days (standard), 35 days (custom)
-
Installation: 3-day on-site commissioning + operator training
-
Support: 24/7 hotline, global spare-parts hub
Customer Success Cases
“Four-blade layout doubled our kerbstone output while cutting labour by half. ROI in 14 months.”
— Eastern European Road-Stone Supplier
