5 Axis CNC Bridge Saw Cutting Machine with 360° Blade Rotation for 3200x2000mm Stone Processing
Price:
To Be Negotiable
MOQ:
1
Delivery Time:
1 month
Brand:
Xianda Machinery
Product Description
Heavy Duty 5 Axis CNC Bridge Saw Cutting Machine for Natural Stone Fabrication and Custom Stone Processing
5 Axis CNC Bridge Cutting Machine for Marble Granite Stone Fabrication
The 5 Axis CNC Bridge Cutting Machine is an intelligent stone processing solution designed for marble, granite, quartz, porcelain slab, and natural stone fabrication. Equipped with a high-precision 5-axis CNC control system, automatic blade rotation, and tilting functions, it provides accurate cutting, profiling, and multi-angle processing.
With a heavy-duty bridge structure and advanced servo control technology, this machine delivers high stability, excellent cutting accuracy, and efficient production for stone factories, countertop manufacturers, and architectural stone projects.
Main Features
- 5 Axis CNC Control System for automatic and precise machining
- 360° blade rotation & 0°-90° tilting for multi-angle cutting
- Suitable for marble, granite, quartz, porcelain, and stone slabs
- High rigidity structure for stable cutting performance
- Supports straight cutting, miter cutting, sink cut-outs, and custom shapes
- Ideal for countertop fabrication and architectural stone processing
Technical Specifications
| Parameter | Unit | Promote 450 | Promote 450 MC |
|---|---|---|---|
| Blade diameter range | mm | 350-450 | 350-450 |
| Max processing size | mm | 3200*2000*120 | 3200*2000*120 |
| Lifting stroke | mm | 300 | 300 |
| Worktable size | mm | 3200*2000 | 3200*2000 |
| Table tilting size | ° | 0,85° | 0,85° |
| Head rotating degree | ° | 0~360° | 0~360° |
| Head tilting degree | ° | 0~90° | 0~90° |
| Air speed | m/min | 25 | 25 |
| Repeated accuracy of positioning | mm | ＜0.1mm/1000 | ＜0.1mm/1000 |
| Main motor | kw | 18.5 (permanent magnet motor) | 18.5 (permanent magnet motor)+5.5 |
| Gross power | kw | 26 | 32 |
| Water consumption | m³/h | ≈2 | ≈2 |
| Outline dimension | mm | 5600*3600*3500 | 5600*3600*3500 |
| Gross weight | kg | ≈6000 | ≈6000 |
Product Images
Applications
- Marble and granite countertop cutting
- Quartz kitchen worktop processing
- Porcelain slab cutting
- Stone sink and hole cutting
- Custom-shaped stone fabrication
- Architectural decoration stone processing
Certifications
API, CCC, SONCAP, GOST, ISO, CE, SGS, IAF
Ordering & Shipping
| Minimum Order Quantity | 1 Set |
| Price | Negotiable |
| Packaging | Plastic Package, Suitable for Sea Transportation |
| Delivery Time | 1 Month |
| Supply Ability | 1000 Sets/Year |
| Payment Terms | L/C, T/T, D/P, Others |
Technical Support & Services
- Installation guidance and support
- On-site training for operating the machine
- Troubleshooting assistance for technical issues
- Regular maintenance services to ensure optimal performance
Xianda Family

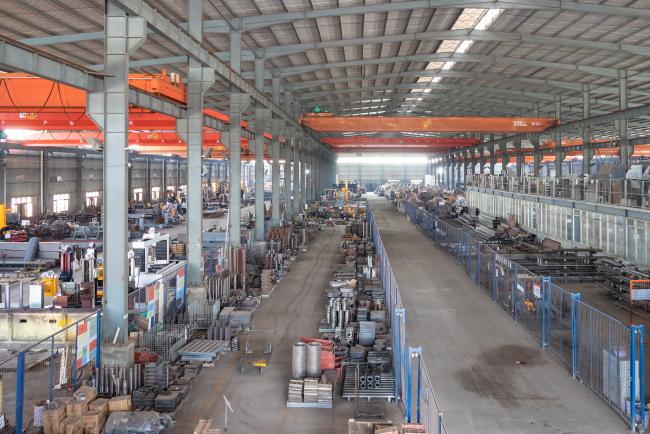

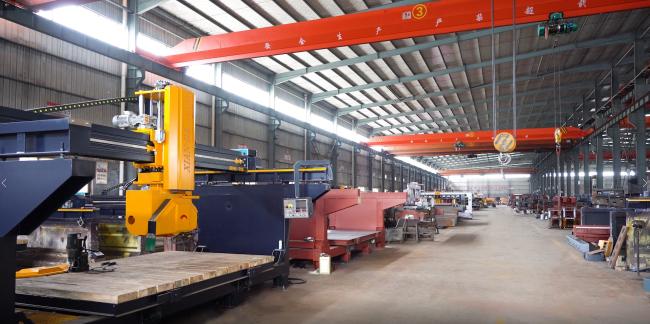

Xianda Workshop
Package Includes
- Bridge Saw Cutting Machine
- Instruction Manual
- Tool Kit
Frequently Asked Questions
Q1: What materials can this machine process?
A: It can cut marble, granite, quartz, porcelain slabs, and other stone materials.
Q2: Can it make 45-degree edge cutting?
A: Yes, the automatic tilting head supports angle cutting and miter processing.
Q3: Is it suitable for stone fabrication factories?
A: Yes, it is designed for professional stone workshops requiring high precision and efficiency.
