Custom Made Lower Mold Core Inserts , Irregular Shape Insert Molding Accessories
Lower Mold Core Inserts Custom Made Irregular Shape Insert Molding Accessories
BG Injection Mold Core Insert is to dig out an empty cavity on two or more special die metals in advance. Then, the melted plastic particles are injected into the cavity through high pressure, and the mold required for plastic products is taken out after cooling. Injection molding is a molding method used in mass production of plastic products with complex shapes.
We believe that our Injection Mold Core Insert can compete with any other similar products in terms of quality, performance and price. With the continuous promotion and deepening of advanced manufacturing technology, digital machining has become the development direction of mold machining. The mold processing equipment integrating digital technology has become the first choice for mold enterprises to improve their equipment level.
Products Information:
|
Product Name |
Plastic Injection Mold Core Insert |
|
Product Materials |
Japan (SKD11, SKD61, SKH51, S45C) |
|
Surface Treatment |
Nickel Plating, PVD Titanium Coating, Polishing, according your request. |
|
Tolerance |
±0.001 to ±0.002mm |
|
Quotation |
According to your drawing |
|
Processing |
Grinding, EDM, High Speed CNC machining Center, Optical Grinding PG, WEDM. |
|
File Formats |
Auto CAD/DWG/ DXF /IGS /SEPT/ PDF etc |
|
Shipping Method |
By Express (DHL , FedEx , UPS, TNT, EMS etc.) |
|
Terms of Trade |
EXW, FOB |
Business Range
Manufacturing & inspection capacity in steel, stainless and copper materials for precision mould parts,Cavity pins, core pins,Punches,Ejector sleeve,CNC machining parts and all other precision non standard mould components, etc...

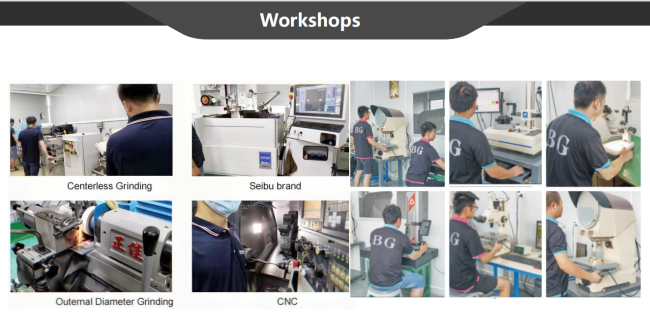

Services:CNC machining,CNC Milling,Sodick EDM,Sodick Wire-cut,OD grinding,ID grinding,Surface grinding,Thread grinding,Polishing etc..
Industries Served: Medical/Packaging/Aerospace/Electronic
If you have some questions about plastic moulds, or want to know more about auto mould parts, medical mould parts, packaging mould parts, cosmetic mould parts, connector mould parts etc. Welcome to contact us!
Below are our main quality inspection items in the whole production process:
Material incoming: 100% inspection
Rough Finished:100% inspetion
Heat treatment: random inspection
Face grinding: 100% inspection
Center-less cylindrical grinding: 100% inspection
OD/ID grinding: 100% inspection
EDM:100% inspection
Wire-Cutting:100% inspection
Packing: the final 100% inspection before the formal shipment

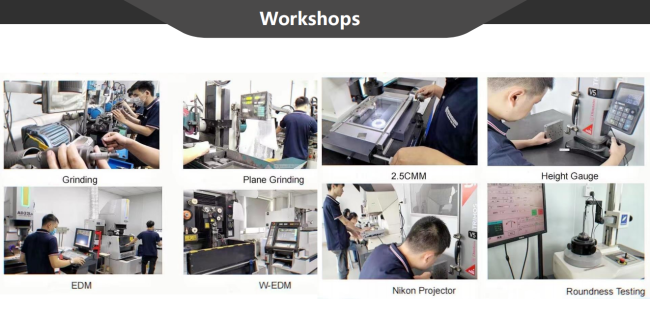

| Testing equipment | Type&Name | inspection Size | Qty | Ispection Accuracy |
| Projector | Marriott PJ-H300 | X:0～95 Y:0～35 | 3 | ±0.001 |
| Projector | Nikon V-12B | 150*200 | 2 | ±0.001 |
| High Gauge | Japan Mitutoyo | 0～50mm | 4 | ±0.001 |
| Roundness Test Instrument | Tokyo Precision 43C-S | 0～200mm | 1 | 0.2μm |
| NIKON Altimeter | MFC-101 | 0～50mm | 2 | ±0.001 |
| Altimeter | Dantsin V5 | 0～400mm | 1 | ±0.0015 |
| Rockwell Hardness Tester | Gaofeng HR-150A | 1 | ±1.5C | |
| Plug gauge | Japan Mitutoyo | 2 | ±0.001 | |
| Caliper | Japan Mitutoyo | 0～125mm | 10 | ±0.001 |
Q1. When can I get the price?
A :We usually quote within 24 hours after we get your inquiry. If it is very urgent, please call us or tell us in your email so that we will regard your inquiry as priority.
Q2. How long is the lead time for mold?
A :It depends on the mold’s size and complexity. Normally, the lead time is 25-35 days. If the molds are very simple and not in big size, we can work out with 15 days.
Q3. I have no 3D drawing, how should I start the new project?
A :You can provide us a sample, we will help finish the 3D drawing design.
Q4. Before shipment, how to make sure the products quality?
A : We are specialized in high quality products. We have QC to inspect the products before each shipment. You can come to visit our factory or ask a third party for inspection. Or we can send you videos to show the production process.
Q5. How could I pay them?
A : Paypal, Western Union, T/T, L/C are acceptable, so just let us know which is convenient for you.
Q6. Can I get discounts?
A : Yes, for big order, old customer and frequent customers, we give reasonable discounts.
Q7. Which Shipment way is available?
A : By sea to your nearest port.
By air to your nearest airport.
By express (DHL, UPS, FEDEX, TNT, EMS) to your door.
