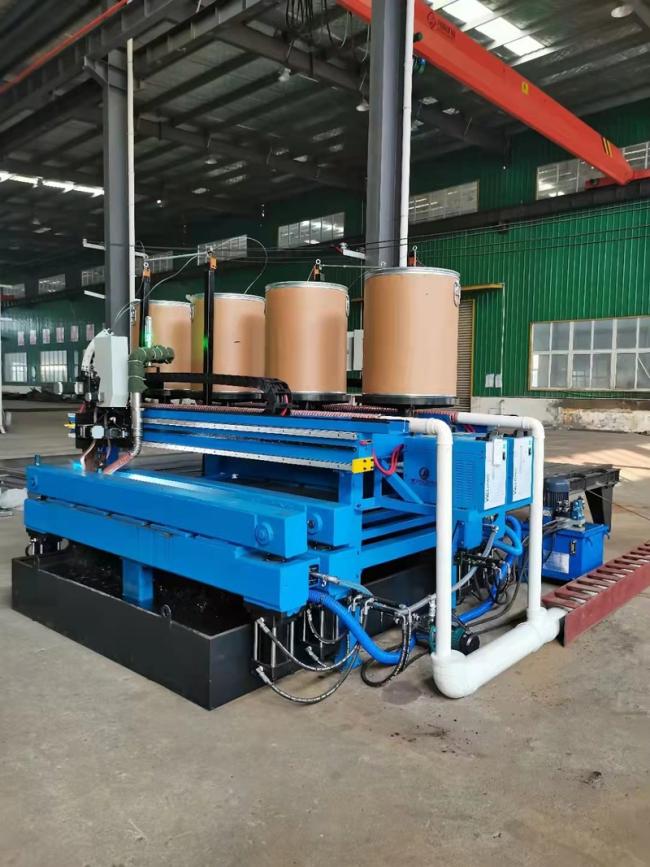

Wear Resistant Surfacing Welding Machine Automatic High Precision With AC Motor

This new generation double gun open arc surfacing machine is developed on the basis of the accumulation of many years’ experience in plate surfacing area.

The wear plate surfacing equipment includes: gantry activity positioning frame, hydraulic platform, welding torch vertical adjustment linear slide unit, welding torch level linear slide unit, welding torch cooling circulating water system, alloy powder add institutions and circulating water cooling platform,basic frame,welding wire placed platform and the rotating mechanism, exhaust pipes, adjustable speed wire feeding mechanism, water-cooled torch, integrated electrical cabinets and monitoring operation box, etc., The whole machine layout should be beautiful and generous, in line with ergonomics.

2.1 Wear-resistant composite plate surfacing machine adopts high-performance hardware configuration which is composed of full digital PLC process control system, powerful function,to adapt to a variety of technology and make the surface more smooth and beautiful.

Due to the use of advanced PLC motion control system and full digital process control technology, wear-resistant composite plate surfacing machine has a variety of control functions, such as: process parameters intelligent automatic setting function; Process parameter storage function. The software has been pre-configured software can realize the wear-resistant plate W, straight line and wave type surfacing, surfacing effect is excellent.

2.2 Easy to control: wear-resisting composite plate surfacing machine adopts high-definition wide touch screen man-machine operation interface, carefully designed Windows and man-machine dialogue, so that the process parameters and program setting is very simple, one person can control more than one machine.

Operators can monitor the process condition through designed Windows directly.For the equipment control system, the way of program drawing on the TECO display screen is used to set the welding gun track,and display the moving track in the welding process to make operation easier.
