H Beam Straight Seam Gantry Welding Machine 20000KG Automatic Welding Machine

H beam Automatic Welding Machine

The T/H steel welding machine developed by our factory is designed on the basis of absorbing the advantages of similar foreign products and combining the actual situation of domestic steel structure production. Its main structural advantages are: the welding machine is special equipment for welding T/H Beam Profile. To carry out, significantly improve production efficiency, reduce equipment costs, save equipment installation space, is the production equipment for efficient production of H-Beam and T-Beam. In addition, this equipment uses CNC programming control to automatically complete the automatic feeding, automatic centering, automatic welding, and other work in the production process of T / H beam profile welding, which saves a lot of manpower and provides automatic production of the entire profile solid foundation.

The frame structure of gantry consists of walking beam, column and upper platform. Gantry adopts square pine and channel steel structure, process stress relieving, with strong and stable structure.

H beam Automatic Welding Machine Technical Parameters

Ø Applicable workpiece web height: h = 200—3000mm

Ø Applicable workpiece web thickness: tw = 6-80mm

Ø Workpiece Flange width: b = 200-1000mm

Ø Applicable workpiece flange thickness: t = 6-80mm

Ø Applicable workpiece length: L = 2000-18000mm

Ø Applicable workpiece material: Q235 (tensile strength ≤235MPa)

Ø Welding angle height: hf = 4-8mm

Ø Adjustment range of conveying speed of equipment: 0.2—2m / min (According to the height of the welding angle, the diameter of the welding wire, determine the welding process, select the appropriate welding speed)

Ø Input roller table: 2.6 meters roller table three sections (one section is active, driven by the host through the chain)

Ø Output roller table: double roller lifting roller table 1 section, single roller lifting roller table 3 sections, double roller passive roller table 3 sections (total length about 11.5 meters)

Ø Tie rod system: 2 groups (one main and one quilt)

Ø Total power: about 17kW

Ø Submerged arc welding machine power about 100kW × 2

Ø Power supply: 3-phase AC380V 50HZ

Ø Straightening capacity range

H Beam Automatic Welding Machine Structures:

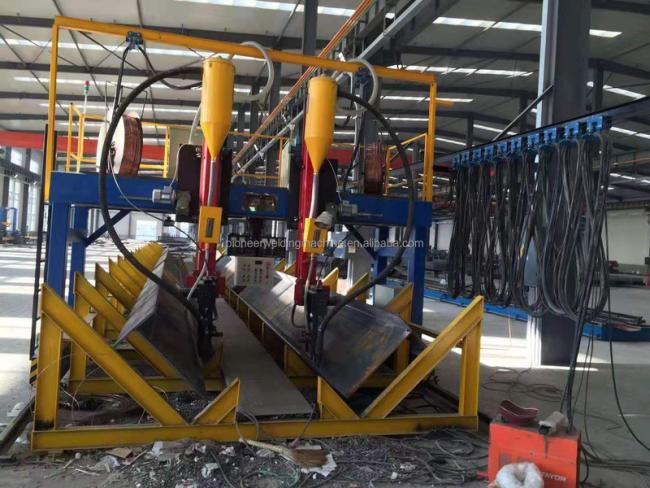

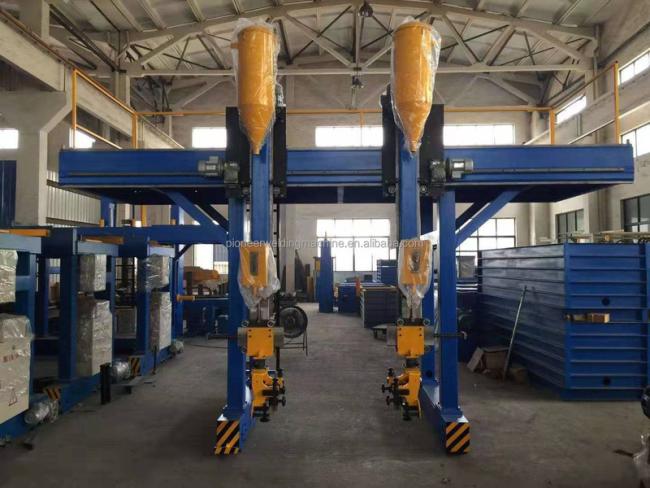

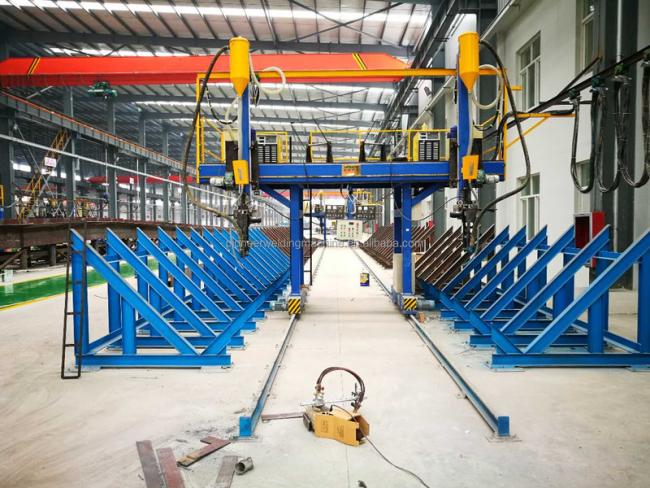

The appearance of the machine see below picture

Welding unit Advantages: The frame structure of gantry consists of walking beam, column and upper platform. Gantry adopts square pine and channel steel structure, process stress relieving, with strong and stable structure.

1. The frame structure of gantry consists of walking beam, column and upper platform. Gantry adopts square pine and channel steel structure, process stress relieving, with strong and stable structure.
2. Each of walking beams is driven by a motor reducer, forming a double-drive system, which makes the operation smooth and reliabl.
3. The moving of gantry is frequency speed adjust controlled, the welding speed can be adjusted according to welding technology requirement.
4. The electric control system consists of one electric control box and two operation panels. The electric control box is equipped on a walking beam, while the 2 operation panels are fixed on the front of upper platform. They are placed separately, which is convenient for operation.
5. Cantilever type automatic welding machine.The gantry welding machine can weld back and forth to improve the work efficiency. According to the user needs to increase the height of the web.
6. Control panel: Digital display line speed, high reliability, The welding arm and the door frame separate control, simple and quick operation.
7. Various forms of the arc guiding rack, wide range of applications,By replacing the guide can weld H-beam,Box girder, Cross beam.
8. Welding seam tracking device mounted below welding arm, automatic tracking welding seam, the welding torch and welding seam to keep appropriate distance. ensure welding quality.
9. AC-DC submerged arc welding machine, Synchronous operation,double welded seam,Firm weld.
10. The brand of submerged arc welding power is optional: 2 sets of inverter MZ-1000 SAW power, or 2 sets of American Lincoln DC-1000 SAW power. (single wire diameter is Ø3.0 or Ø 4.0 mm), featuring in high efficiency and good quality. The position of the welding torch can be adjusted and observed easily during welding.
11. 2 sets of automatic flux recycling systems are used for conveying flux to the welding seam and screening and recycling un-sintered flux by way of the suction hole at the rear side of the torch and sucking the flux back into the flux barrel for re-use.

Jinan Pioneer is the earliest professional group company engaged in cross-border supply chain management in China's welding and cutting&Drilling steel structures field. Its headquarters is located in Jinan, China. It also has product experience centers and manufacturing bases in Shanghai, Zhengzhou, Dezhou, Jinan, Wuxi, and other places. We set up suppliers and customers at home and abroad. Establish a complete cross-border supply chain ecosystem, gather a large number of cross-international and cross-industry related enterprises, rely on the professional brand operation team of Yomi to carry out systematic cross-border supply chain management, and provide specialized services for customers and distributors at home and abroad in procurement, logistics, warehousing management, and supply chain finance and other integrated projects.

Pre-sales service:

Warranty:

The guarantee period of quality shall be 12 months counting from the date on which the commodity arrives at the port of your destination. Except for the damage artificially, we are responsible for offering the fittings free of charge during the guarantee period. In any case, we need that you send the damaged fittings by courier with your charge if we need them for repair or backup, we will send you the alternative fittings at the first time you need them.

After the guarantee of the quality period, the parts required to repair or change, if any, shall be paid.
