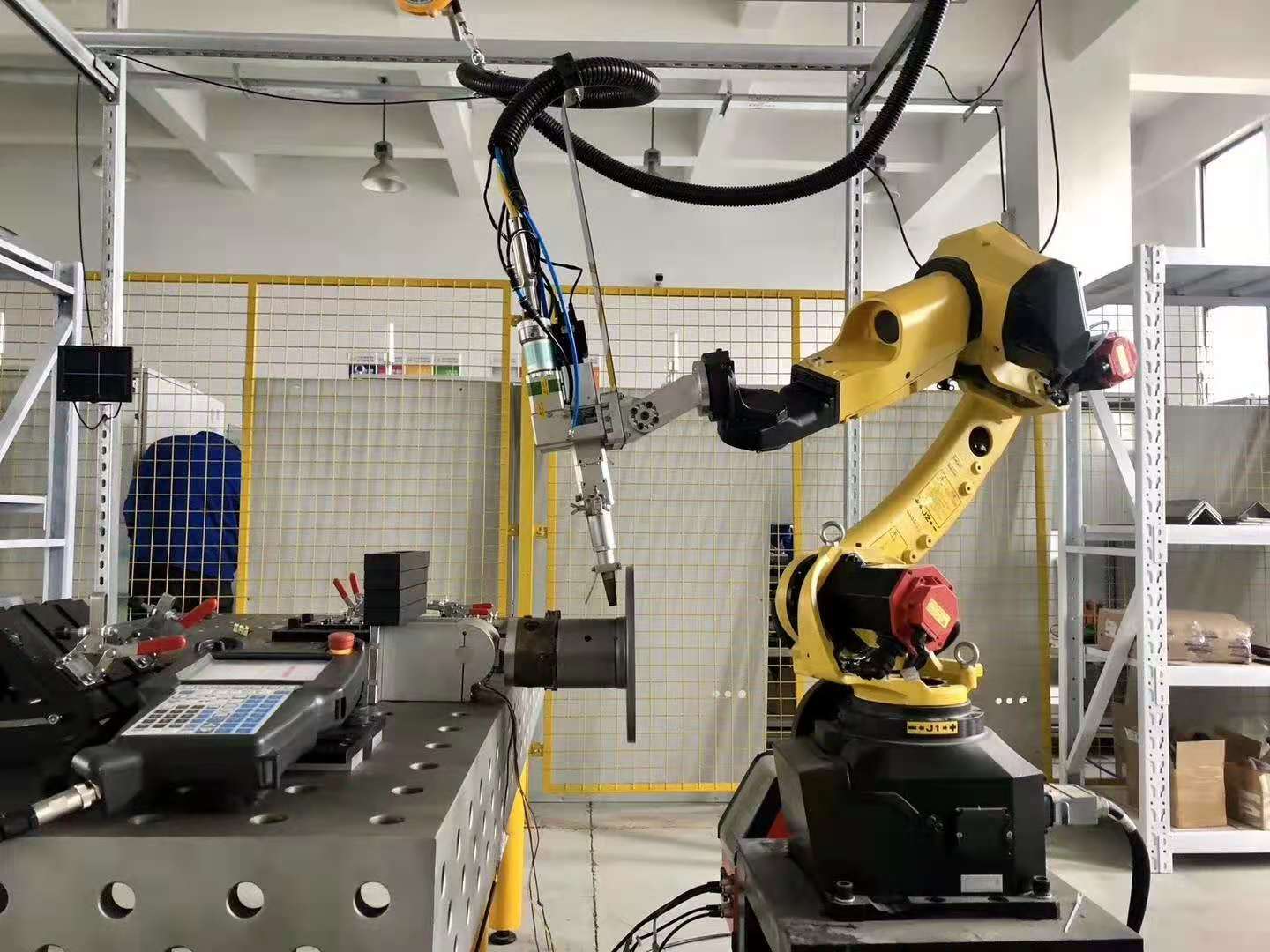

7 Axis Laser Welding Robot Automatic Fiber Laser Robotic Cutting Welding System
Price:
$60,000.00/sets 1-1 sets
MOQ:
Negotiable
Delivery Time:
Negotiable
Brand:
Pioneer
Product Description
Product Description
Pioneer multi-axis intelligent laser welding equipment is composed of special optical fiber laser head, high precision capacitive tracking system, optical fiber laser and industrial robot system. It is an advanced equipment for flexible welding of metal sheets with different thicknesses from multiple angles and directions. This laser cutting equipment is widely used in metal processing, mechanical manufacturing and automotive parts manufacturing, which have processing requirements for three-dimensional workpieces.
Machine Features
1)Long service life, 24 hours a day continuous production, effective cost savings;
2)overall lightweight design, load and accuracy improved significantly;
3)Suitable for a variety of small welding procedures, reduce the requirements on workers' operation skills;
4)can be matched with professional 3D off-line mapping software, which can realize automatic export of welding program and save time for manual proofreading of new products.
5)has high stability and strong expansibility, which is very convenient to realize multi-axis linkage or cooperate with other automation equipment.
Technical Parameter
| Model | M-10iD/12 |
| Structure | Multi-joint robot |
| Control axis | 6 axis |
| Arm span | 1441mm |
| Installation way | Ground installation, inverted crane installation, tilt installation |
| Wrist load | 12kg |
| Repeat positioning accuracy | ±0.02mm |
| Robot weight | 145kg |
| Input power | 2kva |
| The environment temperature | 0~45℃ |
| Environmental humidity | Usually below 75% RH (no condensation) |
