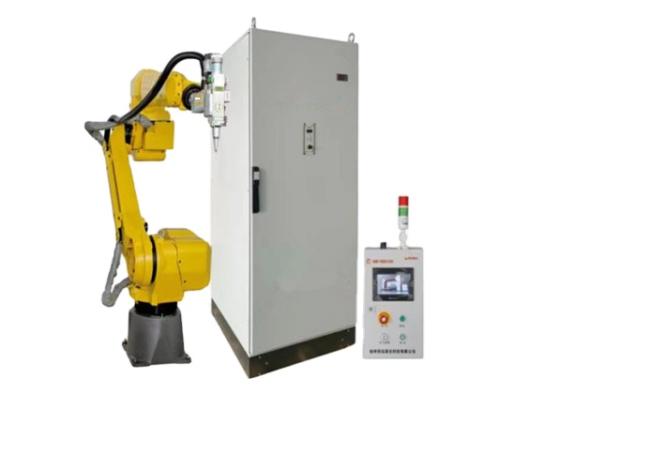

High Effciency Laser Welding Robot Machine Yellow Blue For Metal Box
2022 New Design Laser Welding Robot Machine For metal box
Three-dimensional laser cutting system is the perfect combination of robot and laser flexibility, with lightweight three-dimensional anti-collision cutting head, to achieve three-dimensional cutting, very suitable for three-dimensional metal parts cutting.
Our small and medium power three-dimensional laser cutting equipment, set the industry's highest configuration, with high electro-optic conversion rate, strong equipment stability, small size, flexible processing, simple programming and other advantages, can perfectly cut carbon steel, stainless steel, aluminum sheet, galvanized sheet and other metal materials. The equipment has the advantages of high cutting efficiency, small heat affected zone, perfect and firm cutting seam and low operating cost. It is a necessary flexible processing equipment for processing high quality products.
|
Model |
M-10iD/12 |
|
Structure |
Multi-joint robot |
|
Control axis |
6 axis |
|
Arm span |
1441mm |
|
Installation way |
Ground installation, inverted crane installation, tilt installation |
|
Wrist load |
12kg |
|
Repeat positioning accuracy |
±0.02mm |
|
Robot weight |
145kg |
|
Input power |
2kva |
|
The environment temperature |
0~45℃ |
|
Environmental humidity |
Usually below 75% RH (no condensation) |
Advantages:
4.1.1:Robot wrist can carry weight of 20kg;
4.1.2:By using the high rigid arm and advanced servo technology, the acceleration performance is increased, the action time is shortened, and the production efficiency is improved;
4.1.3:The wrist shaft adopts a unique driving mechanism to realize the hollow wrist structure;
4.1.4:Special flexible cable wiring;
4.1.5:Equipped with a built-in vision or force sensor for smart application
