Universal Electro Cnc Hydraulic Press Brake 7 Axis 600 Ton

Price Negotiable

Price: Negotiable

MOQ: 1set

Delivery Time: 120-150days

Brand: PSL, OEM

Product Description

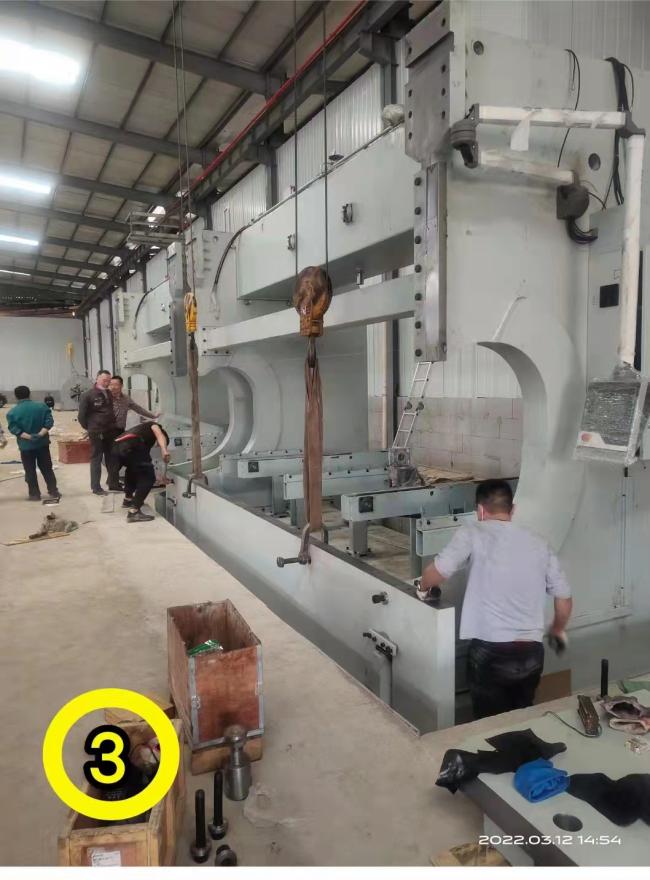

Tandem CNC Electro-hydraulic Synchro. Press Brakes CNC Bending machine

Main features of machine,

Tandem CNC press brake machine realizes bending function by controlling slider stroke and back gauge.

When using CNC hydraulic press brake, you only need to input the number of the pieces required for bending as well as bending angle for each step, and the CNC press brake machine will finish bending according to the steps you just set in the controller.

The advanced CNC press brake bending machine mainly adopts a hydro-electric servo system and a grating ruler to form closed-loop control. It features high control accuracy, as well as bending accuracy and repositioning accuracy.

The Tandem Press brake features a rigid frame for min deflection under the load. The frame steels are made with quality steel improved Q235 using the latest technology.

Fitted with high-specification CNC controller, the operation of these complex machines is now easier and more intuitive than ever before. Its color, high-resolution touchscreen graphics interface, and powerful CPU enable the most complicated bending operations to be processed effortlessly and sophisticated algorithms to be calculated in mere microseconds, Improve efficiency and output in actual production.

The worktable adopts DNC controlled mechanical plus convex wedge deflection compensation worktable. After inputting the data of sheet thickness, lower die opening and tensile strength into the NC system, the bending force and the relevance compensation values of worktable and slider will be determined automatically. Therefore, the accurate convex amount can be obtained during each bending. In the process of machining, deflection compensation without blind area can be realized.

The machine can tandem combined working, also can separately operating each one.

Machine tool accuracy

1 Geometric accuracy

Positioning accuracy of Y1 and Y2 (ram moving up and down axis) : ± 0.05mm

Repeat positioning accuracy of Y1 and Y2 axes: ± 0.05mm

The positioning accuracy of x-axis: ± 0.10mm

(which is the front and rear moving axis of rear retaining)

X-axis repeated positioning accuracy: ± 0.05mm

2 Working accuracy

Bending angle of test piece: ± 30 '/ M

Bending straightness of test piece: 0.30mm/m

Machine configuration,

PPED Series Main parameters,

NameModel	500/40	500/50	500/60	640/60	640/70	640/80	800/60	800/70	800/80
Nominal force kN	5000	5000	5000	6400	6400	6400	8000	8000	8000
Foldable board width mm	4000	5000	6000	6000	7000	8000	6000	7000	8000
Force column spacing mm	3150	4050	5050	5050	6050	6200	4760	5760	6200
Slider stroke mm	300	300	300	320	320	320	400	400	400
Maximum opening height of worktable and slider mm	600	600	600	640	640	640	820	820	820
Throat depth mm	400	400	400	400	400	400	500	500	500
Table width mm	300	300	300	300	300	300	400	400	400
Driving speed mm/s	75	75	75	80	80	80	100	100	100
Working speed mm/s	8	8	8	8	8	8	8	8	8
Return speed mm/s	75	75	75	80	80	80	70	70	70
Main motor power kW	45	45	45	55	55	55	2x37	2x37	2x37
Fuel tank volume L	900	900	900	1000	1000	1000	2200	2200	2200
Net weight of machine tool kg	38000	45000	53000	61000	67000	73000	94000	102000	115000
