110t 3200 CNC Hydraulic Press Brake With Robot stainless Sheet Metal Panel Bending

Price Negotiable

Price: Negotiable

MOQ: 1set

Delivery Time: 45-60days

Brand: PSL, OEM

Product Description

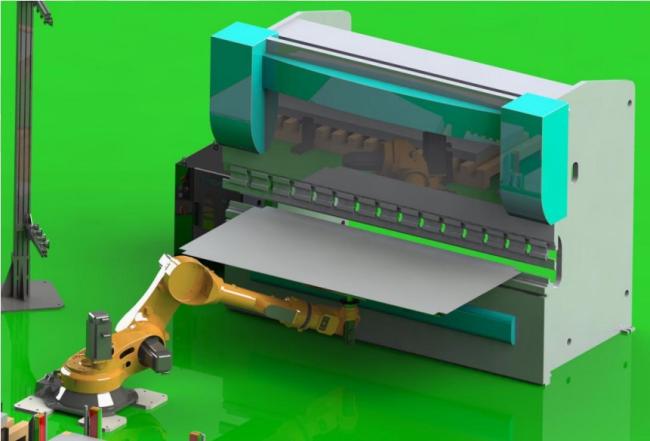

Electric-Hydraulic Servo CNC Press Brake with Robot automatic bending

Application Introduction,

This CNC machine is composed of one CNC Press brake, one robot, a feeding system, a gripper system, and an automatic alignment system for the back gear. Bending robot can save manpower, have low use value, ensure the consistency of bending workpieces, and help improve corporate image and competitiveness to a higher level.

Press brakes and bending robots are indispensable equipment in sheet metal processing and are widely used in various sheet metal processing industries, such as aircraft, ships, automobiles, electronic equipment, instrumentation and medical equipment and other sheet metal industries.

Principe and Features of the machine:

1. CNC Electro-hydraulic servo motors + pumps CNC press brake is two servo main motors which drives 2 way pumps to control Ram up/down synchronously.

2. CNC bending machine with streamlined design, high speed, high precision,high rigidity, and performance stably.

3. Good anti-knock frame (welded-steel plate construction), whole frame is been tempering,reduce modification,using large CNC Broing & Milling machine,process in one time, ensure high-precision.

4. Mechanical (hydraulic) crowning compensation device is equipped.

5. Backgauge is driven by digital servo motors, moved with ball screw,guided by linear guide .High precision .
Multi backgauge axes are available steel weld machine frame gets annealing treatment with constant accuracy CNC controller.

6. Using international famous brand in important components as Pump, Valve,Seals,Electric, Servo units, and CNC system.

7. High executive force,high standard and high professional machine assembled team.

8. Power safeguard design,with light curtain protection,open door power-off function,more safety when operating.

9. Fashion outlook,delicate,and beautiful,machines are compact design,small floor space,easy operation.

10. The Top tool & V Die and replaceable crwoning worktable, forging and precision grinding, bolts fixing.

11. Full set of Robot Bending device, including Robot, Sucking frame, materials platform, Positioning platform, etc...

Program description (operation steps):
The operator presses the start button →

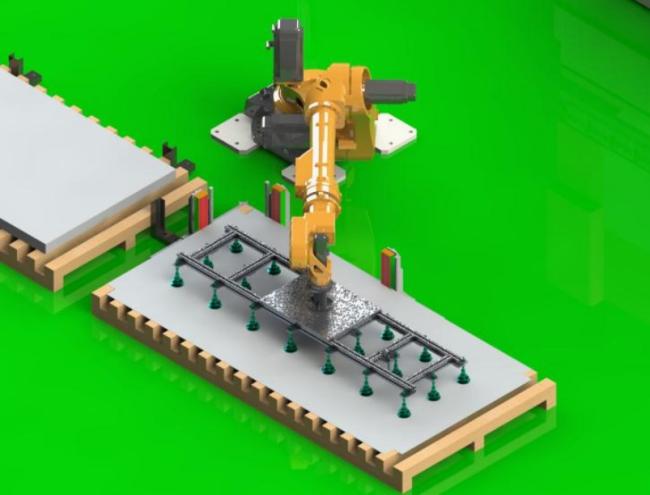

The robot takes the material from the upper material plate and places it on the gravity centering platform →
After positioning, the robot takes the material to bend at the bending machine and bends the flanging features on both sides →
After bending, the robot puts the workpiece on the posture conversion frame and switches the posture →
After changing the posture, the robot grabs the workpiece to bend the gooseneck groove feature →
After bending, the robot places the workpiece on the lower material plate →
Complete the bend

Robot bending work requirements:
The bending time of a single piece of robot is about: min/pcs; (by 24 hours)
Robot bending time estimate:
Robot single workpiece bending work: about S.

Introduction of Main Parts:

-- CNC controller DELEM DA53T:

-- Rexroth servo hydraulic system:

-- GIVI Grating Ruler

The CNC Press brake use fully closed-loop electro-hydraulic servo control,

Ram position signals can be feedback to CNC system by two sides Sensor Ruler,

then CNC controller DA66T adjusts the oil flowing amount by changing the opening size of synchronous valve

, hereby controlling the ram Y1, Y2 running on the same level, maintaining the parallel state of the worktable.

-- Mechanical Crowning/compensation table

The local deflection compensation mechanism uses a mechanical interference table compensation structure. CNC controller automatic calculation control.
