Wall Mount R22000 Shower Valve Solid Brass Three Port Diverter

Replacement R22000 Valve

Product Description

Universal Mixing Rough-In Valve with Service Stops, 1/2" NPT Male thread with 1/2" C.W.T Female Sweat for tub shower trim kit 13/14 series / 17seriescompatible with most single-function, dual-function, or dual-function thermostatic trim kits.

Features

• Forged brass body
• Back-to-back installation capabilities
• Three port diverter
• Plug provided for 3 setting diverter installation
• Universal type fitting and is 1/2" NPT male thread with 1/2" C.W.T. female sweat
• Sweat onto 1/2" C.W.T. or accepts 1/2" iron pipe, PEX or CPVC adapters
• Accepts three or six function diverter cartridges or all MultiChoice® cartridges
• Cartridges ship with the shower trim
• Thick wall kits can be ordered for finish wall up to 2-1/8" (model varies with valve type)
• Covered under 's limited lifetime residential or 5 year limited commercial warranty
• Please Note: for 2 applications the Right port MUST be capped
• No tub outlet

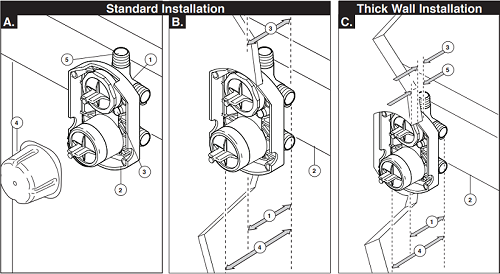

compatible with cartridges series		Optional installation	The heat-resistant pressure test cap (included) allows for air or water testing before valve cartridge is installed.

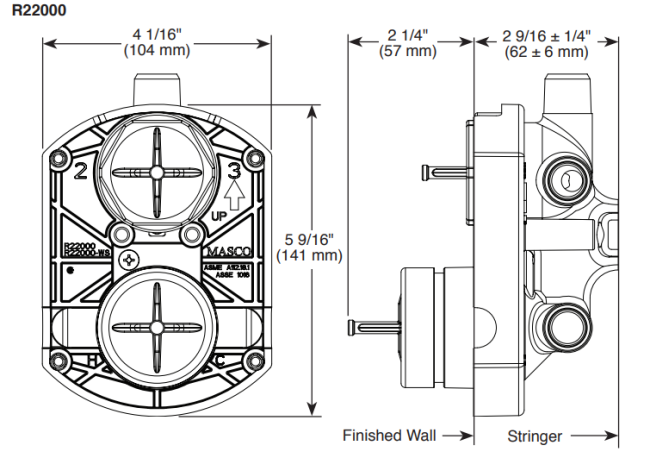

Dimension
