Grade 12 Titanium Welding Pipe Ti-0.8Ni-0.3Mo Heating Tube For Heat Exchanger
Price:
USD 28.0/KG - USD 30.0/KG
MOQ:
5kg
Delivery Time:
3-5 work days
Brand:
Changsheng
Product Description
Product Name: Grade 12 Titanium Welding Pipe Ti-0.8Ni-0.3Mo Heating Tube for Heat Exchanger
China supplier and exporter of Gr12 titanium welding pipe. We have a large inventory of titanium welding pipe in various dimensions, and we offer custom size titanium welding pipes as per your request.
Grade: Titanium alloy Grade 12(Ti-0.3Mo-0.8Ni)
Standard: ASTM B338, ASTM B862
Outside diameter: 6mm - 1200mm
Wall thickness: 0.5mm/0.71mm/0.8mm/1.0mm/1.2mm/1.6mm/2.11mm/3mm, etc.
Supply state: Annealed
Type: Welding tubes
Shape: round pipes
length within:12m
Characterisctics of Grade 12 Titanium
Gr12 (Ti-0.3Mo-0.8Ni, titanium-molybdenum-nickel alloy) Titanium alloy is a corrosion-resistant titanium alloy and a near-α developed to improve the crevice corrosion performance of pure titanium. Alloy, which contains 0.3% Mo and 0.8% Ni, not only strengthens the alloy, but also has good resistance to crevice corrosion to high temperature, low pH chloride or weakly reducing acid, and its corrosion resistance is significantly better than pure titanium and close to Gr7 alloy.
Gr12 alloy also has good process plasticity and welding properties, and has been widely used in chemical manufacturing equipment and tanks.
Company Name & Location information:
Baoji City Changsheng Titanium Co., Ltd.
Baoji City Changtai Metals Trading Co., Ltd. (Branch company)
Add: No. 26 Baotai Road Weibin District Baoji Shaanxi China
Baoji City Changtai Metals Trading Co., Ltd. (Branch company)
Add: No. 26 Baotai Road Weibin District Baoji Shaanxi China
We has been occupied in titanium business for more than 20 years. We offer a wide range of titanium welded tubes and pipes. we can manufacture customized titanium welded pipes according to the specifications provided by clients.
Mechanical Properties of Grade 12 Titanium Welding Pipe
| Grade | Tensile strength,min | Yield strength,0.2% offset |
Elongation(%) |
||
| ksi (min) | MPa(min) | ksi (min) | MPa(min) | ||
| GR1 | 35 | 240 | 25 | 170 | 24 |
| GR2 | 50 | 345 | 40 | 275 | 20 |
| GR5 | 130 | 895 | 120 | 828 | 10E |
| GR7 | 50 | 345 | 40 | 275 | 20 |
| GR9 | 90 | 620 | 70 | 483 | 15 |
| GR12 | 70 | 483 | 20 | 345 | 18 |
Industrial Applications of Grade 12 Titanium Welding Pipe
Aircraft Hydraulic Systems
Oil and Gas Industry
Power Plant Industry
Marine Industry
Marine Industry
Sports Industry, like scooter, bike, bicycle.
Seawater desalination industry
Chemical and petrochemical industry
Pulp and paper industry
Chemical and petrochemical industry
Pulp and paper industry
Plating and anodizing industry
Medical industry
Nuclear industry
Medical industry
Nuclear industry
Company Information:
Baoji City Changsheng Titanium Co., Ltd. was established in September 2001. It is located in the middle section of Baotai Road, Baoji City, Shaanxi Province, which is known as "China Titanium Valley". We specialize in the research and production of titanium and titanium alloy materials, nickel and nickel alloy materials, zirconium materials. After nearly two decades of development, we have formed an annual production capacity of 2,000 tons. The products are widely used in salt, chlor-alkali, chemical, metallurgy, enviromental protection, coating, sports and other industries.

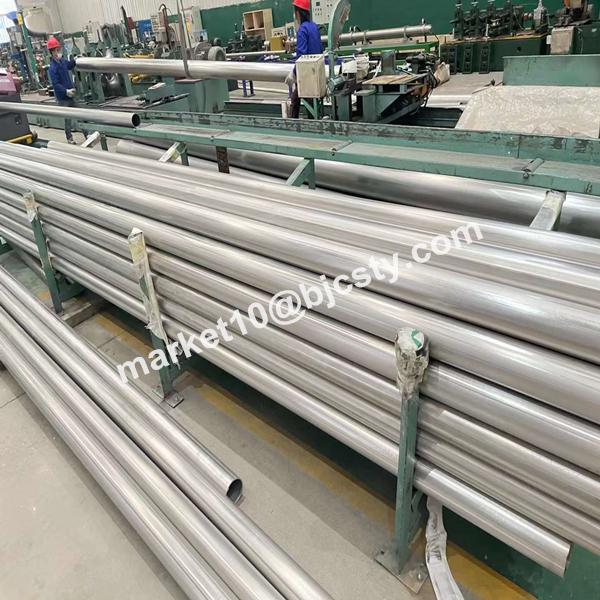

Photos of Titanium Welded Pipes
We stock a large and varied inventory of Gr12 titanium welded pipes. We guarantee that all our materials are fully compliant with the stringent specifications required for the heat exchanger, condenser, evaporator, chemical Industry, metallurgy, carbonization, refrigeration, salt Industry markets. Contact us today to learn how we can help with your next order.
Tag: Gr12 titanium welded pipe, Titanium alloy pipes Gr.12, Titanium heat exchanger tubes welded.
