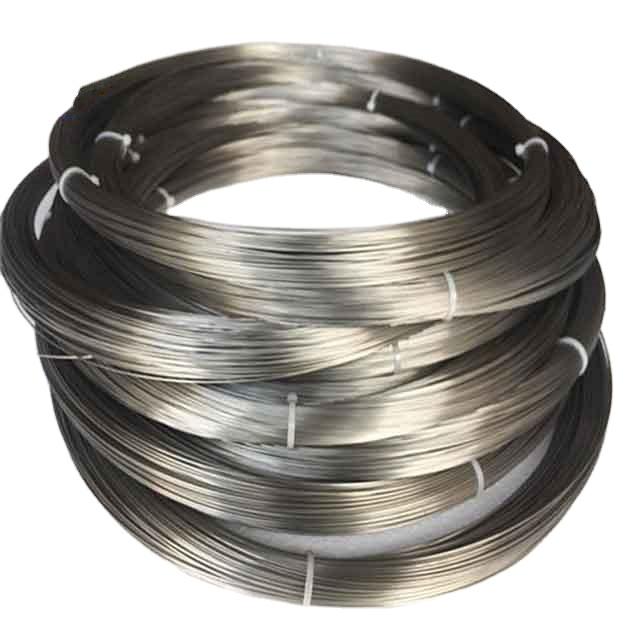

Polished Gr5 Titanium Welding Wire dia 0.5mm ASTM B863 for Jewelry and medical
Titanium grade 5 ti-6al-4v wire is annealed and polished, meets ASTM B348
Titanium gr5 welding wire offers high toughness and moderate wear resistance, along with corrosion resistance, high strength, and good formability. The material has been annealed, a method of heating and cooling metal to modify its properties, such as increasing its formability and toughness or decreasing its strength, after it has been shaped.
Products details:
Material: Titanium alloy
Grade: 6Al-4V Grade 5 | 6Al-4V Eli Grade 23
Standard:ASTM B863, AWS A5.16, ASTM B348
Color: silver, black,pickling
MOQ:10kg
Diameter: 0.05-3mm
Surface: polished, pickling, anodinzing
Shape:coiled wire/straight wire
Keywords:Chinese titanium vally
Application:TIG welding wire, anodizing rack tie wire, dental appliances, safety wire,pressure vessel
Titanium wire is small in diameter and can come on a spool, cut to TIG rod length, or full bar length. These “Ti” wires are commonly used in chemical processing and anodizing, where parts are hung or tied down with wire. “Ti” Wire for TIG welding is cut to 36″ lengths and also available in common welding rod sizes.
Application:
Surgical implants
Micro instruments
Microsurgical instruments
Trauma Applications
| Physical Properties | |||
| Grade | Tensile stength MPA | Yield strength MPA | Elongation % |
| Gr1 | 240 | 170 | 24 |
| Gr2 | 345 | 275 | 20 |
| Gr4 | 550 | 483 | 15 |
| Gr5 | 895 | 828 | 10 |
| Gr7 | 400 | 275 | 18 |
| Gr9 | 620 | 483 | 15 |
| Gr12 | 483 | 348 | 18 |
| Gr23 | 793 | 759 | 10 |
| Composition | ||||||||||
| Grade | Fe Max |
O Max |
N Max |
C Max |
H Max |
Pd Max |
Al Max |
Va Max | Ni Max | Mo Max |
| / | Wt % | Wt % | Wt % | Wt % | Wt % | Wt % | Wt % | Wt % | Wt % | Wt % |
| Gr1 | 0.2 | 0.18 | 0.03 | 0.08 | 0.015 | |||||
| Gr2 | 0.3 | 0.25 | 0.03 | 0.08 | 0.015 | |||||
| Gr4 | 0.5 | 0.4 | 0.05 | 0.08 | 0.015 | |||||
| Gr5 | 0.4 | 0.2 | 0.05 | 0.08 | 0.015 | 5.5-6.7 | 3.5-4.5 | |||
| Gr7 | 0.3 | 0.25 | 0.03 | 0.08 | 0.015 | 0.12- 0.25 | ||||
| Gr9 | 0.25 | 0.15 | 0.03 | 0.08 | 0.015 | 2.5-3.5 | 2.0-3.0 | |||
| Gr12 | 0.3 | 0.25 | 0.03 | 0.08 | 0.015 | 0.6-0.9 | 0.2-0.4 | |||
| Gr23 | 0.25 | 0.03 | 0.03 | 0.08 | 0.0125 | 5.5-6.5 | 3.5-4.5 | |||
| Ti | Balance | |||||||||
Titanium and its alloys, due to a successful combination of high strength, sufficient technological properties, small density and good corrosion resistance are gaining wider application for medical instruments production, used in general surgery, stomatology, neurosurgery, otorhinolaryngology, ophthalmology etc. The application of titanium alloys for surgical implants, micro instruments and also sets of microsurgical instruments in combination with stainless steels is most expedient.
