OD0.75" Seamless Titanium Tubes Gr1 Plain Ends for Condensers in Nuclear Power Plants
OD0.75" Seamless Titanium Tubes Gr1 Plain Ends for Condensers in Nuclear Power Plants.
Seamless titanium tubes are widely used for condensers in nuclear power plants. All titanium condenser and titanium tube condenser gradually replace the stainless steel condensers. Titanium tubings are largely reduced the total cost and prolong the service life. Seamless titanium tubes Gr.1 are the most popular pipe products we manufacturing and exporting. Our pure titanium tubes has competitive price and short lead time.
Test: Ultrasonic test, Hydraulic test
Processing: Cold/Hot rolling
Application: heat exchanger, condenser, evaporator, etc,.
Detailed Information in Form for Seamless Titanium Tubes Gr1
| Item name |
OD0.75" Seamless Titanium Tubes Gr1 Plain Ends for Condensers in Nuclear Power Plants |
| Material | Pure Titanium Grade 1 |
| Type | Seamless |
| Standards | ASTM B338 ASTM B337 ASTM B861 |
| Shape | Round tubes with plain ends |
| Outside diameter | 0.75" (19.05mm) |
| Wall thickness | 0.5mm/0.71mm/0.8mm/1.0mm/1.2mm/1.6mm/2.11mm,etc. |
| Length | max.12m, or as per clients request |
| Surface | Pickling surface, polished bright surface |
| Test | Eddy current inspection, Hydraulic test, Ultrasonic test |
Industrial Applications of Seamless Titanium Tubes Gr1
Marine Industry
Chemical and petrochemical industry
Pulp and paper industry
Medical industry
Nuclear industry
Mechanical Properties of Titanium
|
ASTM Grade
|
Alloy composition
|
Tensile strength
|
Yield strength
|
Elongation %
|
||
|
ksi
|
Mpa
|
ksi
|
Mpa
|
|||
|
GR1
|
Unallyed Ti(Pure)35A-CP1
|
35
|
240
|
25
|
170
|
24
|
|
GR2
|
Unallyed Ti(Pure)50A-CP2
|
50
|
345
|
40
|
275
|
20
|
|
GR5
|
Ti 6Al 4V
|
130
|
895
|
120
|
828
|
10E
|
| GR7 |
Ti-Pd
|
50
|
345
|
40
|
275
|
20
|
|
GR9
|
Ti 3AI 2.5V
|
90
|
620
|
70
|
483
|
15F
|

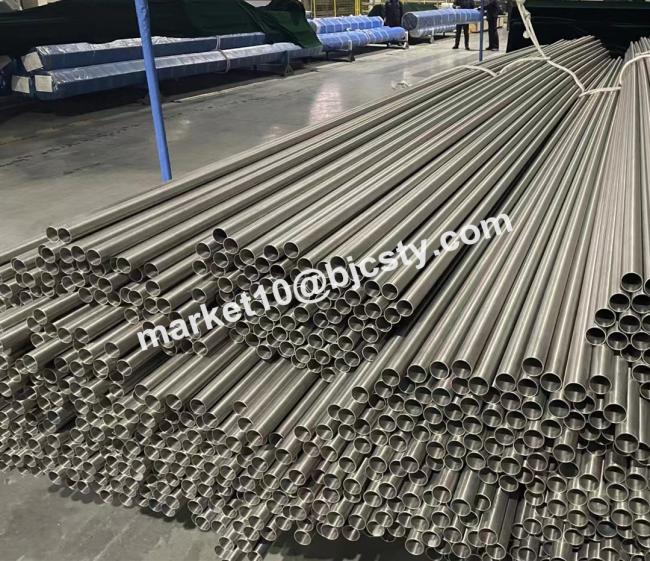

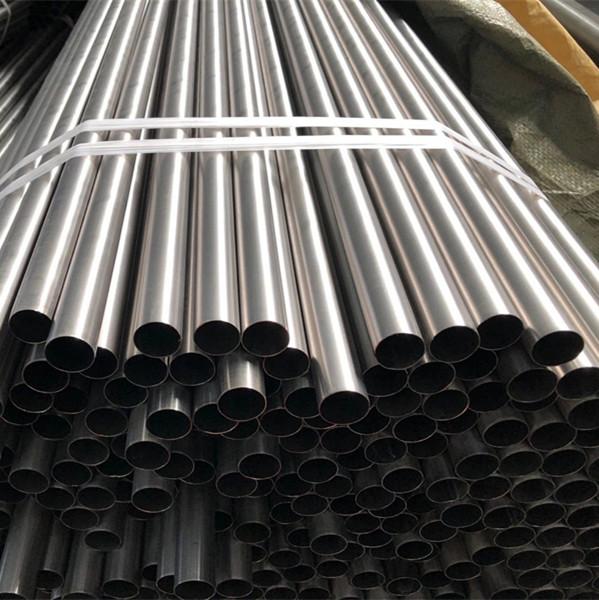

The first picture is pickling surface, and the second one is polished bright surface. For heat exchanger tubings, the tube surface is usually pickling surface, the purpose of pickling is to remove the oxide skin produced after annealing of titanium tubes, a key process to ensure the quality of the tubes.
