Gr11 Titanium Stamping Sheet 0.5mm To 0.8mm For Plate Heat Exchanger Sheets Manufacturing
Price:
USD 23.5/kg - USD 24.5/kg
MOQ:
1 kg
Delivery Time:
7-15 work days
Brand:
Changsheng Titanium
Product Description
Titanium Stamping Sheet GR11 0.5mm-0.8mm For Plate Heat Exchanger Sheets Manufacturing
Company offers commercially pure Titanium sheets grade 1 and titanium alloy sheets grade 11 & grade 17 at a resonable market price for the clients. Titanium sheet coils are made from fine quality pure titanium material in comply with ASTM B265 standard that we collect from reliable sources. Our company Baoji City Changsheng Titanium Co., Ltd has been occupied in titanium businesses for more than 20 years.
We specializes in exporting high quality Titanium sheet that are used for heat exchanger industry and many other industries.
We specializes in exporting high quality Titanium sheet that are used for heat exchanger industry and many other industries.
Detailed Information of Titanium Plate Heat Exchanger Sheets GR11:
Material: Titanium Gr11 (Ti-0.0Pd)
Nomal Thickness of Sheets: 0.5mm - 1.0mm
Elongation Rate: >47%
Cupping Value: >9.5mm
Sheet Surface: Bright
Max. Width of the Sheet: 1270mm
Features: Deep drawing and high elongation rate
Advantage: Large stock, short lead time, competitive price
Supply Forms:
- In coil sheet
- In flat sheet
- Be filmed
- Also as per customers requirements
Due to customization, please contact us for satisfying your individualized requirement!
Mechanical Properties of of Titanium Sheets Gr11 (Min.):
| Grade | Density | Tensile Strength | Non-proportional extension strength | Elongation | Cupping Value |
| Gr.11 | 4.5 g/cm3 | MPa – 240 | MPa-140 | 47% | 9.5mm |
Chemical Compositions of Titanium Sheets Gr11:
| ASTM No. | Pd | N max | C max | H max | Fe max | O max | Balance |
| Grade 11 | 0.12~0.25 | 0.03 | 0.08 | 0.015 | 0.20 | 0.18 | Ti |
Characteristics:
1) Excellent corrosion resistance in many media.
2) Deep drawing and high elongation rate.
3) Smooth surface, no dirt layer, dirt coefficient greatly reduced.
4) High heat exchanging efficiency, energy saving.
5) Withstand with high temperature.
6) Long-life service.
Company Information:
Baoji City Changsheng Titanium Co.,Ltd. is located in Baoji City which is know as the"Titanium City".
Our factory was established in 2001.We focused on processing and sales of titanium and titanium
alloy (including titanium bar,titanium tubes,titanium sheet, titanium wire, titanium anode and titanium
casting,ect), The product is widely applied in chemical industry, metallurgy, petroleum, textile, medicine,
light industry, environmental protection, sports, mine,ocean and other fields. Our products have been
used in China over 15 years and exported to overseas had been steadily increased in North America,
Europe,Africa,South America,Middle East and Asia,etc.

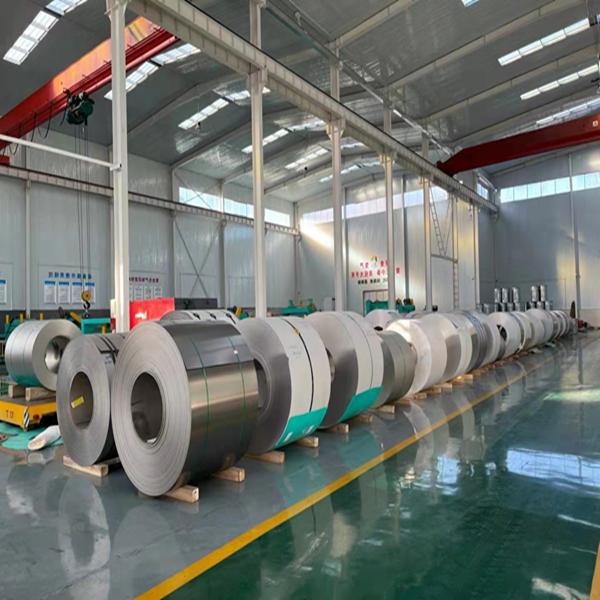

Pictures of titanium sheet in coil
Tags: Grade 11 Pd titanium sheets, Titanium heating sheets, Titanium plate heat exchanger plates, etc,.
