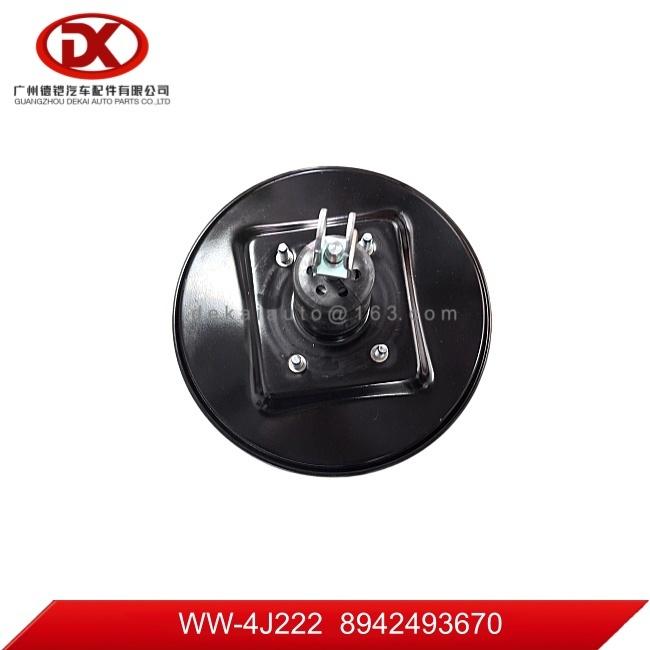

Suitable for ISUZU NKR MASTER VAC ASM; BRK  8942493670  8 94249367 0

WW-4J222  8942493670  8 94249367 0 MASTER VAC ASM; BRK NKR

More Parts:

The function of the MASTER VAC ASM; BRK
1.Reduce the force required to press the brake pedal

Without a booster, heavy force is needed to brake, which is difficult for ordinary drivers to achieve sufficient stopping power. With assistance, light pressure can effectively stop the vehicle.

2.Amplify the force applied to the brake pedal

Using engine vacuum (or electric/hydraulic assistance), it multiplies the force from your foot several times and transmits it to the brake master cylinder.

3.Improve braking response and safety

Braking is more linear and responsive, building up pressure faster during emergency stops and shortening braking distance.

4.Ensure normal braking at low speeds or idle

Sufficient assistance is maintained even when the vehicle slows down or idles, preventing stiff, hard-to-press brakes.

The structure of the  Master vac asm

1.Housing:The outer shell, usually made of metal or plastic, forming a sealed chamber.

2.Diaphragm:A flexible rubber diaphragm that divides the interior of the booster into two separate spaces: the front chamber (vacuum chamber) and the rear chamber (atmospheric chamber).

3.Control Valve Assembly:Consists of a vacuum valve and an air valve, controlling the connection and disconnection of vacuum and air between the two chambers, serving as the core control component.

4.Input Push Rod:Connects to the brake pedal and transmits the foot force to the control valve.

Structure of the Alternator.
Alternators are usually made up of components such as stators, rotors, covers and bearings. The stator consists of a stator core, a wire bale winding, a base, and other structural parts that hold these parts in place. The rotor consists of rotor core (or pole, magnetic choke) windings, guard rings, center rings, slip rings, fans and shafts. The stator and rotor of the generator are assembled by bearings and end covers, so that the rotor can rotate in the stator and do the movement of cutting magnetic field lines, thereby generating an induced potential, which is led out by the terminals and connected to the loop, and a current is generated.


FAQ

1.Q:What is your terms of payment?
A:T/T 30% as deposit, and 70% before delivery. We will send you the packing list and the photos of the products before your payment.

2.Q:Do you have MOQ request?
A: We don’t have MOQ request. We are wholesaler for ISUZU Truck spare parts, we have a large stock of products.

3.Q: What is the delivery time?
A: The delivery is depends on the storage. If the items we have in stock, we can make delivery within 7days. For the items need to be ordered the delivery is betwen20-45 days.

4.Q.:Can you produce according to the samples?
A: Clients’sample is welcome. We are able to produce the specific products according to your sample.

5.Q: Can l get a lower price if l order large quantities?
A: Yes, cheaper prices with bigger amount of order.

Auto parts suitable for Japanese Trucks : CYZ51K 6WF1 / FVR34 6HK1 / FSR33 6HH1 / NPR75 4HK1 / NLR85 4JJ1 / NPR71 4HG1 / NPR66 4HF1 / QKR55 4JB1 / NKR55 4JB1 / DMAX / HINO 700/500 / 300 E13C /J08/J05 / N04C etc.
