30 Ton Feed Bulker Engine Power 103kw Air Operated Discharging Aluminum

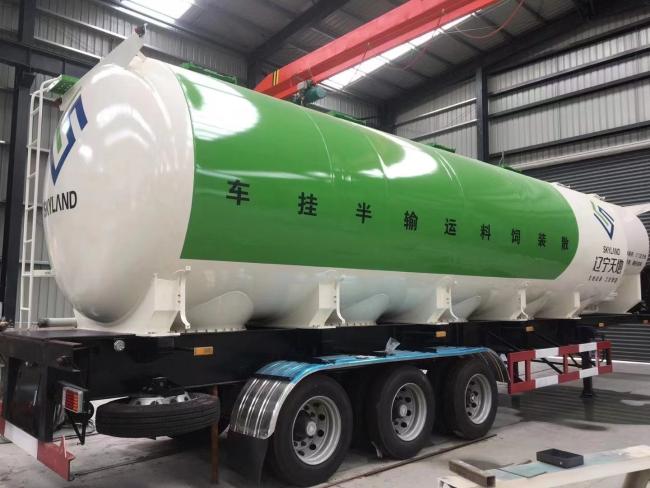

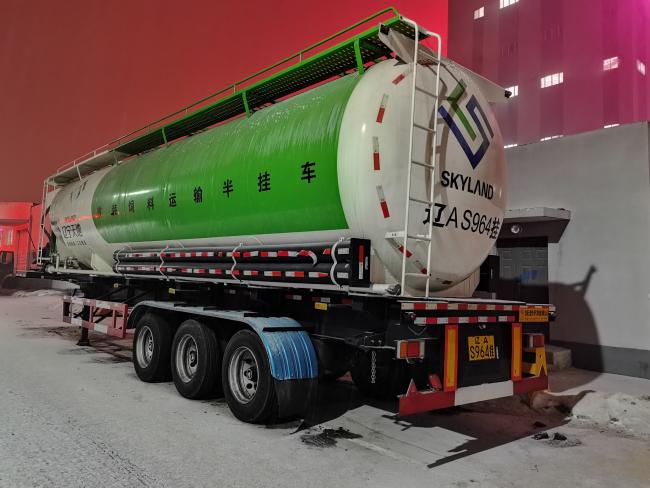

CHINA MADE 30TON AIR OPERATED DISCHARGING ALUMINUM FEED BULKER
The use of special anti-corrosion paint (better than car level), under the conditions of frequent disinfection of the farm,
effectively ensure that thepaint of the whole vehicle does not fall off, does not wrinkle, and does not crack.
Ensure the appearance of bulk trucks.
| No. | Product name | Overall size (mm) | Effective volume (m³) | Weight | Parameter |
| 1 | Gamma Airoperated SILO Tank:Aluminum tank |
13750 × 2550 × 4000 | 57.3m³ unit weight is 0.65 |
10.5 tons | Aluminum tank. Containing matching piping and air compressor, chassis. Not including Traction head . Rated load is 29.5-30 tons, maximum is 32 tons. 6 sub warehouses. |
| Semi-trailer axle model/manufacturer |
13 tons /Foshan Yonglitai Axle Co., Ltd. | ||
| Supporting device model/manufacturer |
19 inches /Yangzhou Tongyi Automobile Co., Ltd. | ||
| Traction pin model/manufacturer |
90# /Shandong Hongkang Machinery Manufacturing Co., Ltd. | ||
| Suspension model/manufacturer |
Air suspension airbag shock absorption/Foshan Yonglitai Axle Co., Ltd. | ||
| ABS model/manufacturer | Model: CM2XL-4S/2M/Guangzhou Ruili Komi Automotive Electronics Co., | ||
| Tire model/manufacturer | 9R22.5 14PR/Shanghai DLtodu.ble Coin Group Co., Ltd. | ||
| Service brake system | Independent circuit, air pressure, drum brake with ABS | ||
| Ground clearance of tractor pin of semi-trailer (mm) |
1250 | Front turning radius of semi-trailer (mm) |
2040 |
| Semi-trailer clearance radius (mm) |
≥2300 | Wheelbase (mm) | 7160+1320+1320 |

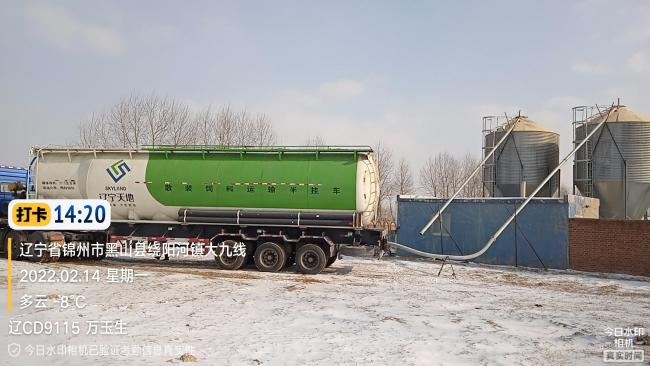

Advantages of Pneumatic conveying System
Low crushing rate of feed, It can basically guarantee 100% particle integrity.
Long conveying disatance, conveying path has no restriction: height ≥10m, length ≤100m, best length ≤30m,
Unloading speed 400-500kg/min.
0.11% feed residue, low noise, no pollution to feed.
Upload configuration
Electrical configuration: Electronic control interlock protection such as under-phase and undervoltage.
Paint craft: The use of special anti-corrosion paint (better than car level), under the conditions of frequent disinfection
of the farm, effectively ensure that the paint of the whole vehicle does not fall off, does not wrinkle, and does not crack.
Ensure the appearance of bulk trucks.
Tank technology: 25 years of experience in the mechanical processing industry, professional aluminum circular welding process,
effectively ensure the strength and tightness of the tank.
Detail Pictures
