20L 30L Oil Bottle Drum Blow Molding Machine Extruder Double Station
TONGDA HTll30L 20L 30L Oil Bottle HDPE Drum Container Blow Molding Machine

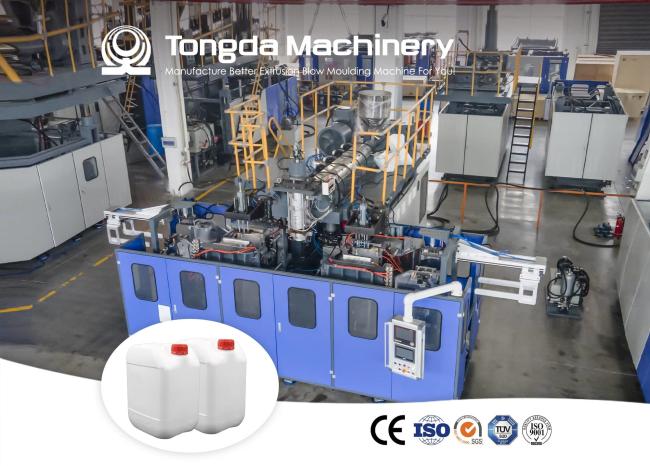

This HTII-30L double station extrusion blow molding machine is one of our hot sale product. It is most suitable for making the 20L~30Lstackable jerry can, chemical liquid barrel, oil drums.
- Continous type die head, with shorter cycle time. And stable for parison, suitable for adding view strip line function.
- With standard servo motor equipped for the hydraulic system, low noise and energy saving.
- Bio-linear guide rails not only for the mould moving, also for the mould open & close, stable for the moving.
- Tiebar-less type mould locking, with higher clamping force, and easy for mould changing.
- Separate oil pump for mould locking, with more stable mould locking funtion.
- Air valve enlarged, to make the shaping function better.
The main parts of this machine are designed and manufactured by ourself.We do the independent R&D and inspection.If you have other special requirements, we can provide customized services for you.
Technical parameters
| MODEL | Units | HTll-30L | Remarks: we will customize the most suitable machinery according to your requirements |
| Max. Product volume | L | 30 | |
| Output of HDPE | kg/h | 230 | |
| Clamping force | kn | 250 | |
| Screw diametre | mm | 100 | |
| Screw heating power | kw | 26 | |
| Blow pressure | mpa | 0.6 | |
| Size of machine | m | 6.3*3.4*3.9 |
Product Description
Product details
Standard air valve, with stable function
Energy acuumulator configuration save power energy instead of using a separate oil source and motor and save space.
Automatic lubrication system, ensure the machine works more smoothly and the service life of parts longer
Company information
In the recent 20 years, Suzhou Tongda Machinery Co., Ltd. has been focusing on the research, development and product application of extrusion blow molding machines. The factory covers an area of more than 80 acres of land and has more than 350 employees.
Warmly welcome new and old customers to visit, to guide.
Service network
Our Machinery has been keeping good cooperative relationship with customers since our establishing.
The satisfaction of our customers are the pursuit of every member of Tongda,The only way we service in the competitive market is to help our customers to full fill their requirement.
FAQ
TONGDA sales consultant
1. We can provide comprehensive and professional Suggestions on equipment selection.
2. Energy consumption calculation and investment income analysis can be provided.
3. Provide tailor-made CAD drawings of workshop layout and product optimization Suggestions.
4. Extrusion plastic bottle blow molding machine has remote maintenance function
Q: How big is your company?
A: our company has 400 employees and A building area of 100,000 square meters. We own land and factories.The company has a registered capital of us $2 million and a long-term business license since 1999.
Q: How long is the warranty on your equipment?
A: we offer A one-year free warranty and A lifetime after-sales service.
