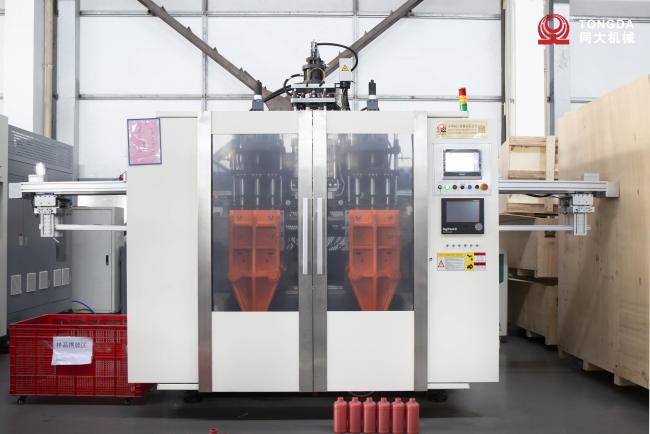

HDPE Jerrycan Blow Molding Machine Plastic Small Bottle 37kW Double Station
Price:
$64,999.00 - $74,999.00/Sets
MOQ:
1SET
Delivery Time:
28 working days
Brand:
TONGDA
Product Description
TONGDA HTSll12L Plastic Products Making Moulding Machine Small Hdpe Jerry Can Bottle Extrusion Blow Molding Machine
Product Description
Technical Parameters
|
MODEL
|
Units
|
HTSll-12L
|
Remarks: we will customize the most suitable machinery according to your requirements
|
|
Max. Product volume
|
L
|
12
|
|
|
Output of HDPE
|
kg/h
|
130
|
|
|
Clamping force
|
kn
|
158
|
|
|
Screw diametre
|
mm
|
90
|
|
|
Screw heating power
|
kw
|
17.4
|
|
|
Blow pressure
|
mpa
|
0.6
|
|
|
Size of machine
|
m
|
4.3*2.96*3.1
|
|
Product Details
Plasticizing system can be designed for multi-layers, 1-4 layers are definitely available, and have high degree customization space.
Honeycomb ventilation holes to ensure better heat dissipation performance.
Stable and efficient clamping system
Adjustable rotary type blow pin unit, suitable for oblique bottles
Parison controller we use MOOG 200 Points or AUTOMATA 300 Points, with extremely sensitive action.
Touch screen we use large size INNOVANCE
Company Information

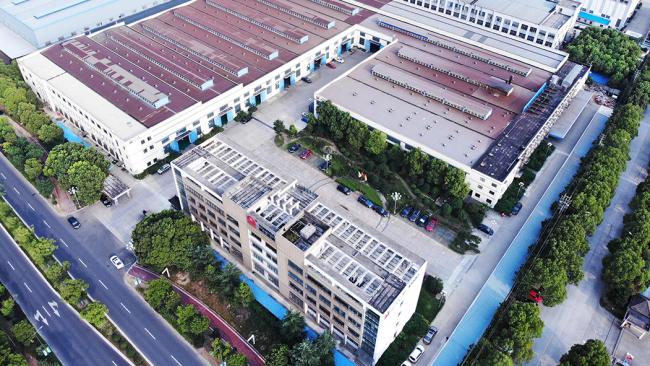

Suzhou Tongda Machinery Co., Ltd. is located in Zhangjiagang City, Fenghuang town Korea Industrial Park. 2 hours away from Shanghai City by car. In the recent 20 years, Suzhou Tongda Machinery Co., Ltd. has been focusing on the research, development and product application of extrusion blow molding machines. The factory covers an area of more than 80 acres of land and has more than 270 employees. The company has established Engineering Technology Research and Development Center, and Jiangsu Province excellent Graduate work Jiangsu Enterprise Research and Development Center, Jiangsu Province Extrusion blow Molding Technology Technology Center has more than 50 R & D personnel, including 1 national science and technology talent, Station. Jiangsu Province post-doctoral innovation practice base and other R & D platforms, at present, the that means constantly exploring the expansion of new areas. Warmly welcome new and old customers to visit, to guide, 4 senior masters,15 bachelors, hosting the development of two national standards and participating in the formulation of a national standard. "Working Together to Grow Together" is the spirit of TONGDA company, to cooperate with us and we are always at your service to provide you with strong support.
Under normal conditions,the blow molding machine to abroad will be packaged in wooden case. ln addition,we will also pack the machine according to the requirements of specific customers.Subject to the measurement of main blower,we will choose corresponding wooden case, TONGDA is a professional mould machinery company we will try our best to satisfy the kinds of demand of customers.
FAQ
TONGDA sales consultant
1. We can provide comprehensive and professional Suggestions on equipment selection.
2. Energy consumption calculation and investment income analysis can be provided.
3. Provide tailor-made CAD drawings of workshop layout and product optimization Suggestions.
4. Extrusion plastic bottle blow molding machine has remote maintenance function
Advantages of TONGDA after-sales team
1. Lifetime free service for the machine.
2. Quick response all day long.
3. Set up domestic service team and international service team.
4. Technicians also master the debugging and maintenance of auxiliary equipment.
5. A free 2-day training course will be provided to customers every year.
6. Special processing equipment to produce after-sales accessories to ensure rapid response to user needs.
Q: how long is the warranty on your equipment?
A: we offer A one-year free warranty and A lifetime after-sales service.
1. We can provide comprehensive and professional Suggestions on equipment selection.
2. Energy consumption calculation and investment income analysis can be provided.
3. Provide tailor-made CAD drawings of workshop layout and product optimization Suggestions.
4. Extrusion plastic bottle blow molding machine has remote maintenance function
Advantages of TONGDA after-sales team
1. Lifetime free service for the machine.
2. Quick response all day long.
3. Set up domestic service team and international service team.
4. Technicians also master the debugging and maintenance of auxiliary equipment.
5. A free 2-day training course will be provided to customers every year.
6. Special processing equipment to produce after-sales accessories to ensure rapid response to user needs.
Q: how long is the warranty on your equipment?
A: we offer A one-year free warranty and A lifetime after-sales service.
