Small PE Blow Molding Machine Multi Heads Die Head Double Station

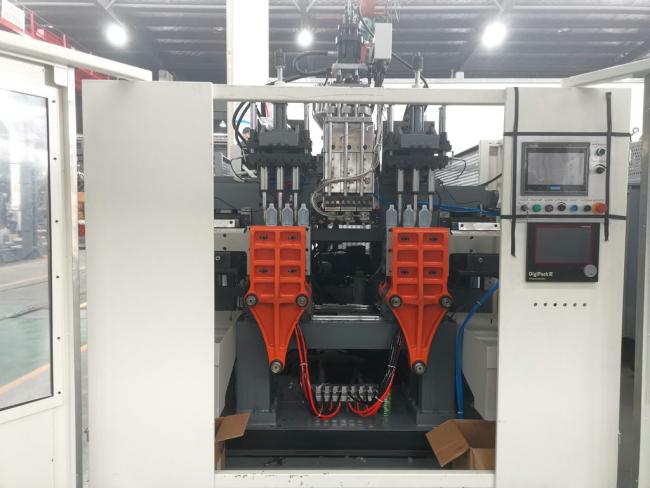

TONGDA HTSII2L Double Station Multi Heads Die Head Small Daily Chemical Bottles Making Machine PE Blow Molding Machine
Product Description
This HTS series machine is our most cost effective series machine. HTSII-2L machine is suitable for producing HDPE bottles size below 2 liters. If equipped with multi heads die-head, it also suitable for small HDPE/PP plastic daily chemical bottles blow molding.
Also can be equipped with view strip line on the die head, and multi layer configuration is also available.
The main parts of this machine are designed and manufactured by ourself.We do the independent R&D and inspection.If you have other special requirements,we can provide customized services for you.
|
MODEL
|
Units
|
HTSll-2L
|
Remarks: we will customize the most suitable machinery according to your requirements
|
|
Max. Product volume
|
L
|
2
|
|
|
Output of HDPE
|
kg/h
|
60
|
|
|
Clamping force
|
kn
|
44
|
|
|
Screw diametre
|
mm
|
60
|
|
|
Screw heating power
|
kw
|
11.2
|
|
|
Blow pressure
|
mpa
|
0.6
|
|
|
Size of machine
|
m
|
4.1*2.6*2.7
|
|
Product Details
Air valve enlarged to ensure better shaping.
Multi-layer, durable tubes are used
Plasticizing system can be designed for multi-layers, 1-4 layers are definitely available, and have high degree customization space.
Honeycomb ventilation holes to ensure better heat dissipation performance.
Stable and efficient clamping system
Adjustable rotary type blow pin unit, suitable for oblique bottles
After-sales service
FAQ
1. We can provide comprehensive and professional Suggestions on equipment selection.
2. Energy consumption calculation and investment income analysis can be provided.
3. Provide tailor-made CAD drawings of workshop layout and product optimization Suggestions.
4. Extrusion plastic bottle blow molding machine has remote maintenance function
Advantages of TONGDA tech teams
1. 600 sets of customized requirements per year enable us to have rich experience across multiple industries.
2. Customize equipment models according to customer product characteristics.
3. Project responsibility system, closed-loop team cooperation between the design team and the process team, adjustment of the team, and joint creation of equipment that users are satisfied with.
4. Engineers can study abroad or participate in technical function training of the industry to master the latest information and technical trends of the industry.
5. Undertake a number of large projects, and has a group of senior technical personnel composed of the construction team, can build cable bridge, installation of a complete set of equipment.
Q: how big is your company?
A: our company has 270 employees and A building area of 53,330 square meters. We own land and factories.The company has a registered capital of us $2 million and a long-term business license since 1998.
Q: how long is the warranty on your equipment?
A: we offer A one-year free warranty and A lifetime after-sales service.
