Hydraulic Plc Control Metal Roofing Machine , Metal Wall Panel Machine
1250mm Roofing Sheet Roof Tile Making Machine PPGI Corrugated Metal 380v
1. Brief introduction of Roof Tile Making Machine

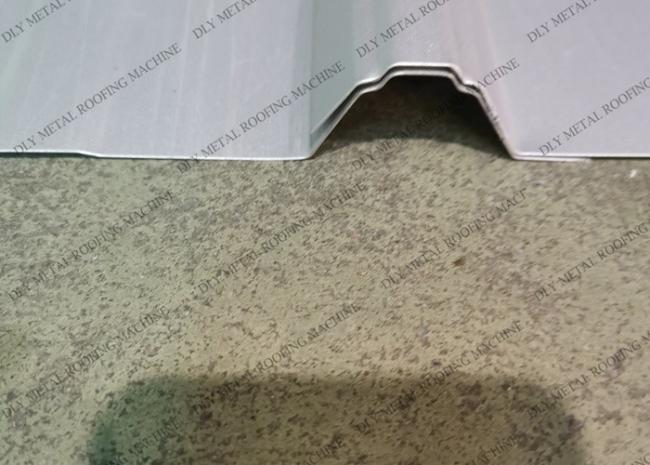

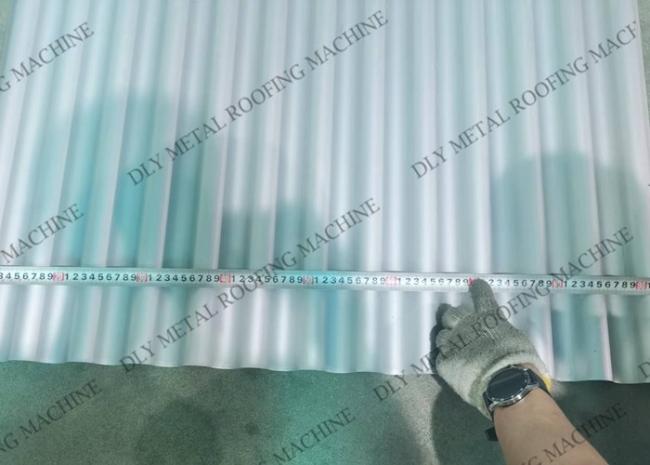

1.This roll forming machine can rollform metal roofing sheet. After roll formed by this roll forming machine, the surface will be very smooth and beautiful without any scratch on surface.
2.Rollforming process:uncoiler, rollforming, forming step effect, cut to length.
3.Fully Automatic Control System with PLC.
4.Easy operation: Key in the length and quantity on the control panel.
5.One year warranty.
6.we also can do a custom roll forming machine, We can design the machine according to your specification and profile drawing.
2. Roof Tile Making Machine specifications
| 1 |
Power Requirement
|
Voltage | (380V 50HZ),or according client require |
| Main Motor power | 5.5kw | ||
| Cutter power | 5.5kw | ||
| 2 | Forming speed | 0-15m/min | |
| 3 | Forming stations | 11/12 rows | |
| 4 | Main Frame | 400H beam | |
| 5 | Sidewall thickness | 25mm | |
| 6 | Forming shaft diameter | 70mm 0.01mm-0.03mm(Grinding) | |
| 7 | Chains | 1inch chain drive | |
| 8 | Type of cutting | Roll formed and length-set cutting | |
| 9 | Control system | PLC control | |
| 10 | Install dimension(depend on the final design) | 6.3m×1.3m×1.2m | |
| 11 | Total weight (Approx) | 5T | |
| 12 | Roller | High grade 45# steel, hard chrome plated | |
| 13 | Feeding system | Guide type | |
| 14 | Cutting blade | Cr12Mov | |
| 15 | Frequency changer | Delta | |
- Our machine warranty is 1 years (non-man-made damage, accessories, technical support)
- Technical guide is provided during whole life of the machine.
- Oversea services will be provided but any cost thus incurred will be paid by the buyers.
- We support customers inspect our factory or machines by video call.
- After customer inspect the factory,if need translator service,we also can supply this service for free(English).
- Customer LOGO,Tel, can customize on our machines.
- Voltage can customize according to customer's requirement.
- If need raw material,we can supply the good suppliers for steel coil, aluminum coil,steel strip and so on.
- If need more machine pictures or videos,please contact us soon.

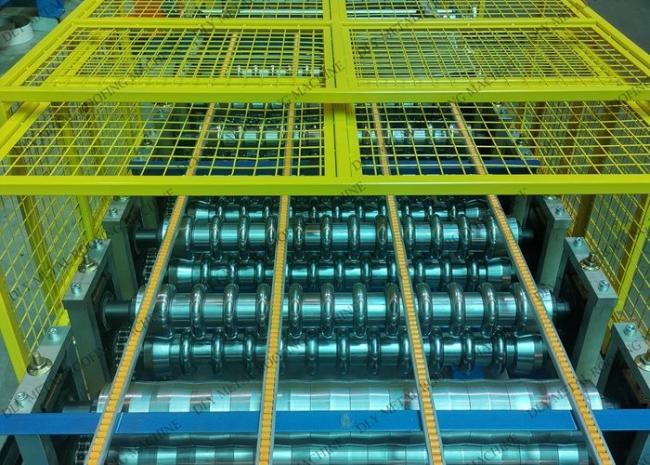

4. Machine Detals and Container Load of Roof Tile Making Machine
Our roll forming machines have been exported to Slovenia, Bosnia and Herzegovina, Serbia, Uruguay, Russia, Canada, Australia, Nigeria, Zambia, Tanzania and etc. We were proud to receive recognized by our valued clients!
