5.5kw 50HZ 220v Roofing Sheet Roll Forming Machine For Panel
Price:
Negotiable
MOQ:
1 set
Delivery Time:
40 days
Brand:
DLY
Product Description
5.5kw Profile Sheet Manufacturing Machine 50HZ Sheet Metal Stamping Machine
1. Description of Sheet Metal Profiling Machine
Metal Roofing Forming Machine offers a profitable solution for space and energy, combines Roofing, Wall Cladding, Corrugated profiles in one machine.Base on stable and durable performance, we knows well on various Roofing profile in different markets. Maximize cover width, Logo embossing, Anti-capillary grooves, we also offer customized product for client to supply their innovative idea to market.
this serious including Roofing, Wall Cladding, Corrugated profiles for both Coated Coil (PPGI/PPGL) and Galvanized Coil (GI/GL).
2. Specifications of Sheet Metal Profiling Machine
| Technical Parameters (some depend on the final design) | ||
| 1 | Style | Bolivia glazed roof tile double layer roof sheet roll forming machine |
| 2 | Machine dimension | 7500*1600*1650mm |
| 3 | Total wight | 5800kgs |
| 4 | Forming speed | Glazed design :1.5-3.0m/min Wave design:10-15m/min |
| 5 | Hydraulic station power(Kw) | 4kw |
| 6 | Diameter of shaft | 70mm |
| 7 | Hydraulic pressure | 18-20 MPa |
| 8 | Electric condition(Voltage ) | 380V/3Phase/ 50HZ (or based on customer's need ,for example :220V 440V 415V or 2Phase 60HZ ) |
| 9 | Suitable to process | Color steel plate(G330 or G350 ) galvanized steel coil |
| 10 | Control system | PLC |
| 11 | Raw material thickness | 0.3-0.8mm |
| 12 | Effective width | 800mm and 836mm |
| 13 | Material width | 1000mm and 1000mm |
| 14 | Main motor | 5.5Kw |
| 15 | Material of the cutting blade | Cr 12 quenched treatment 58℃-62℃ |
| 16 |
Main Shaft Material
|
45# steel with finish turning |
| 17 | Roller materials | 45# Forging Steel with Chromium Plate |
| 18 | Machine Under Frame | 400 H beams and side wall 18mm |
3. feedback of Sheet Metal Profiling Machine

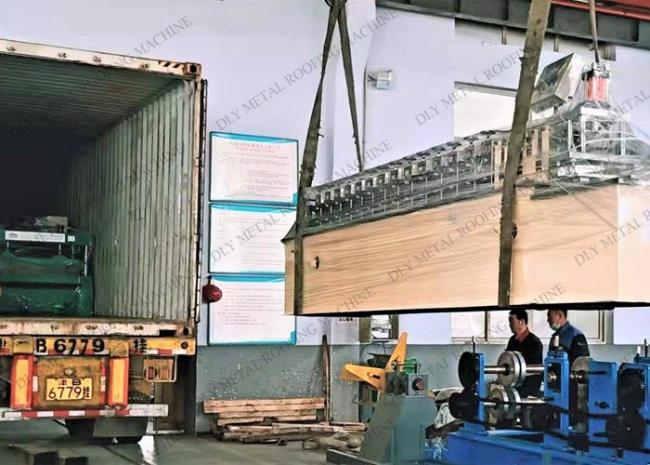

Our metal roofing machines have been exported to Slovenia, Bosnia and Herzegovina, Serbia, Uruguay, Russia, Canada, Australia, Nigeria, Zambia, Tanzania and etc. We were proud to receive recognized by our valued clients!
4. details of Sheet Metal Profiling Machine
