Ppgi 380v Sheet Metal Roll Forming Machine Plc Automatic Control
PPGI Sheet Profiling Machine 380V PLC Automatic Control Roll Forming Machine

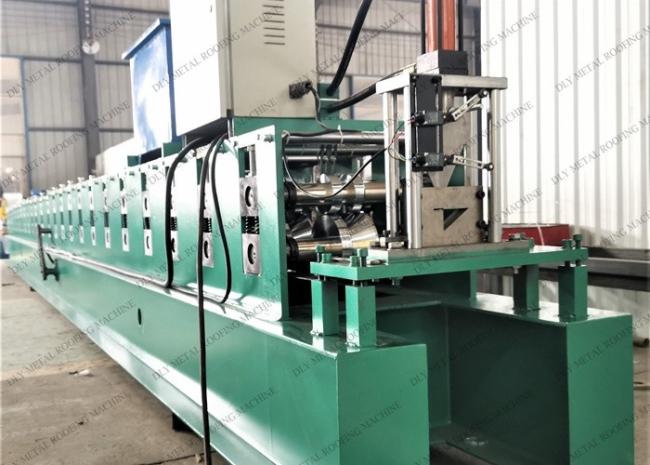

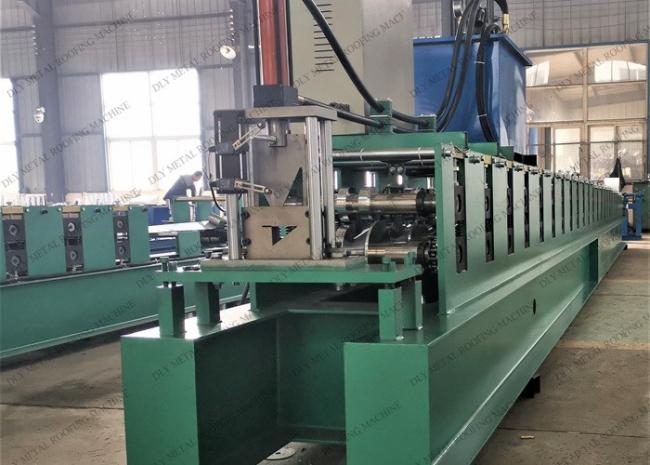

1. Description of Sheet Metal Profiling Machine

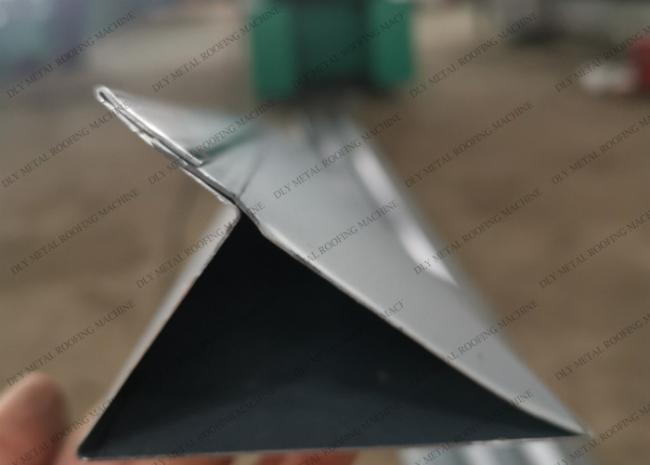

snow stop machine was used to produce snow stop profile, it is a triangle profile. 0.3mm-0.7mm GI and PPGI material. with 10m-15m/minute speed. PLC automatic control system.
2. Specifications of Sheet Metal Profiling Machine
|
1
|
Suitable to process
|
Color steel plate
|
|
2
|
Width of the plate
|
360mm |
|
3
|
Thickness of the plate
|
0.3-0.8mm
|
|
4
|
De-coiler
|
Manual one, can load 5 tons raw material
|
|
5
|
Rollers for forming
|
16 rows
|
|
6
|
Diameter of the roller
|
80mm
|
|
7
|
Rolling material
|
Carbon Steel 45#
|
|
8
|
Main motor power
|
5.5kw
|
|
9
|
Material of the cutting blade
|
Cr12 mov
|
|
10
|
Hydraulic cutting power
|
4kw
|
|
11
|
Processing precision
|
Within 1.00mm
|
|
12
|
Control system
|
Delta PLC control
|
|
13
|
Side panel of machine
|
20mm
|
|
14
|
Main structure of the machine
|
400 H steel
|
|
15
|
Weight
|
About 7T
|
|
17
|
Voltage
|
380V 50Hz 3phases(changeable as needs)
|
|
19
|
Custom
|
According to customer's requirements
|
3. Work Follow of Sheet Metal Profiling Machine
Our metal roofing machines have been exported to Slovenia, Bosnia and Herzegovina, Serbia, Uruguay, Russia, Canada, Australia, Nigeria, Zambia, Tanzania and etc. We were proud to receive recognized by our valued clients!
Decoiler→Feeding Guide Device→Rolling Forming System→Hydraulic Not Stop Cutting And Punching Device→ Exit Rack
4. details of Sheet Metal Profiling Machine
