15kw Cz Purlin Roll Forming Machine Automatic 380v
15kw Automatic C Purlin Roll Former 380V C Z Purlin Roll Forming Machine Price
1. Description of C U Z Purlin Roll Forming Machine
Our purlin machine driven by gearboxes, consists of decoiler, feeding and levelling device, punching system, pre-shear, roll forming system, hydraulic post cutting, run out table, hydraulic station and PLC(controlling system). Its special feature: Assemble with liner guide way to make machine change web size easily and smoothly, Produce standard products with yield strength up to 550Mpa,Long production line,no open mouth on final products, C/Z interchange only with 3 steps and within 5-15mins;Changing size fully automatically. Time saving and labor saving, which is highly improved production efficiency and suitable for current production. This machine is easy to operate and run stable with good precision. Large range web size is 120-450mm and thickness up to 4.5mm, which used widely and would be the most popular model in the near future.
2. Specifications of C U Z Purlin Roll Forming Machine
| Part details | Item Name | Specification |
| Material | Raw material | Galvanized steel |
| Thickness | 1.5-3 mm | |
| Machine | Roller station | 18 |
| Shaft diameter | 80 mm | |
| Shaft material | 45# steel with 0.05mm chrome | |
| Roller material hardness 30-40 HRC | Bearing steel | |
| Machine size | About 10×1.7×1.7 m | |
| Machine weight | About 9 ton | |
| Machine color | As customer' request | |
| Working speed | 10-30 m/min | |
| Cutter | Hardness | 50-65 HRC |
| Cutting tolerance | ± 1 mm | |
| Material | Cr 12 | |
| Operate | Hydraulic cutting | |
| Power | Driving way | Chain 1.5*2 inch |
| Main power | 22 kw | |
| Pump power | 5.5 kw | |
| Voltage |
380v/50HZ,3P or customize as customer' request |
|
| Control system | PLC brand | Delta made in Twaiwan |
| Screen | Touchable screen | |
| Language | Chinese and English or add language as customer need | |
| Decoiler | Operation | Manual |
| Weight capicatity | 3 ton | |
| Price | Free as gift | |
| Receiving table | Operation | Manual |
| Length | 3 m | |
| Price | Free as gift |
4. Advantages of C U Z Purlin Roll Forming Machine
- 【Machine Long Lifer】Rollers are made from Cr12 mould steel being quenched treatment, HRC58-60, CNC machine tooled to increase rollers precision.
- 【High Efficiency】15-18m per minute. Produce 7000m per shift for 8 hours one day.
- 【High Preision】Shafts for rollers are tooled by grinding machine at least twice. Rollers are CNC processed to ensure precision performance.
- 【Automatic & Easy Operate】Safe and easy to operate with Mitsubishi PLC touch screen operating system. Friendly man-machine interaction.
- 【Excellent Services】Technician can be sent to your factory to install the machine and train your workers. Engineers are able to service overseas.We supply lifetime services for our machines.

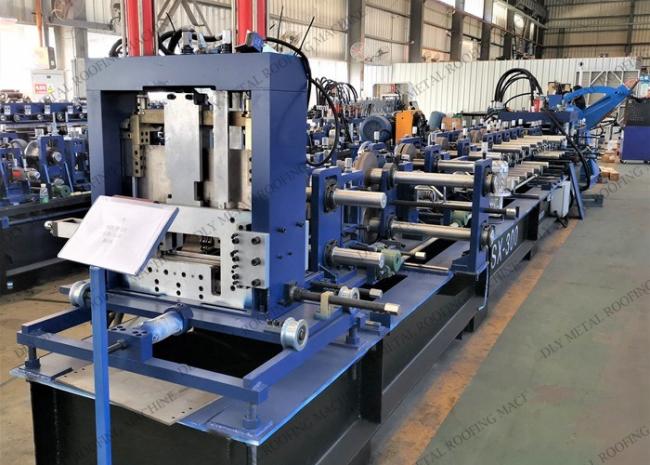

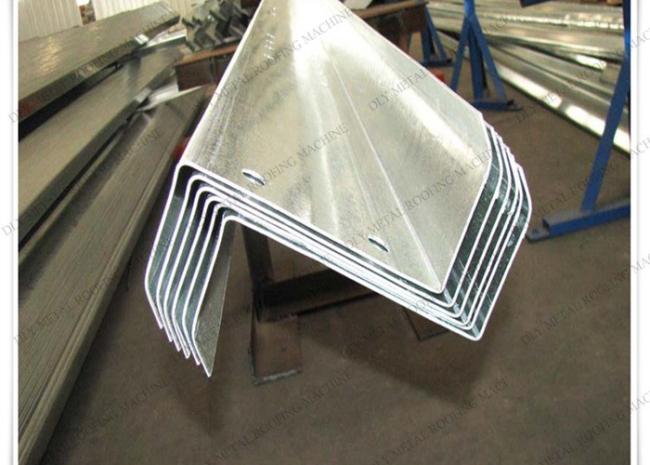

5. Detail photos of C U Z Purlin Roll Forming Machine
