Automatic 75mm 1250mm Gi Sheet Roll Forming Machine Plc Control
Automatic 75mm Double Layer Forming Machine 1250mm PLC Control Metal Roofing Machines For Sale
1. Brief introduction of Double Layer Forming Machine
Double Layer Forming Machine was used for corrugate metal sheet to different profiles, then these profiles can be used as roofing, wall, fence, light steel house and etc., our roll forming machine adopt PLC automatic control system, only need one person to operate.
this profile is very popular used for roofing, every month have this profile machine in production.
Our advantage is we have professional design team, we take EU machine quality as our machine standard. We pay attention to every machine details and components, so the quality of our machines has been recognized by our customers and peers.
A roll forming machine (or metal forming machine) fabricates specific configurations out of long strips of metal, most commonly coiled steel. In most applications, the required cross-section profile of the piece is specifically designed for the machine to bend the metal as necessary.
2. Specifications of Double Layer Forming Machine
| Technical Parameters (some depend on the final design) | ||
| 1 | Style | Bolivia glazed roof tile double layer roof sheet roll forming machine |
| 2 | Machine dimension | 7500*1600*1650mm |
| 3 | Total wight | 5800kgs |
| 4 | Forming steps | Up layer :11rows Down layer :13rows |
| 5 | Forming speed | Glazed design :1.5-3.0m/min Wave design:10-15m/min |
| 6 | Hydraulic station power(Kw) | 4kw |
| 7 | Diameter of shaft | 70mm |
| 8 | Hydraulic pressure | 18-20 MPa |
| 9 | Electric condition(Voltage ) | 380V/3Phase/ 50HZ (or based on customer's need ,for example :220V 440V 415V or 2Phase 60HZ ) |
| 10 | Suitable to process | Color steel plate(G330 or G350 ) galvanized steel coil |
| 11 | Manual uncoiler max capacity | 5000kgs |
| 12 | Control system | PLC |
| 13 | Raw material thickness | 0.3-0.8mm |
| 14 | Effective width | 800mm and 836mm |
| 15 | Material width | 1000mm and 1000mm |
| 16 | Main motor | 5.5Kw |
| 17 | Material of the cutting blade | Cr 12 quenched treatment 58℃-62℃ |
| 18 |
Main Shaft Material
|
45# steel with finish turning |
| 19 | Roller materials | 45# Forging Steel with Chromium Plate |
| 20 | Machine Under Frame | 400 H beams and side wall 18mm |
3. Customer Feedback of Double Layer Forming Machine

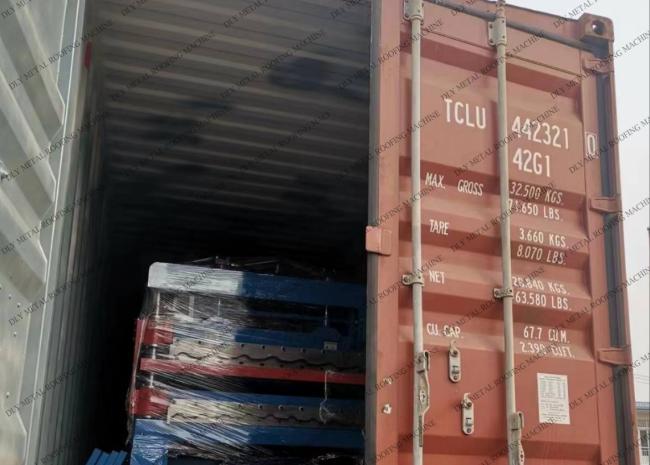

Our Corrugated Roofing Machine have been exported to Slovenia, Bosnia and Herzegovina, Serbia, Uruguay, Russia, Canada, Australia, Nigeria, Zambia, Tanzania and etc. We were proud to receive recognized by our valued clients!

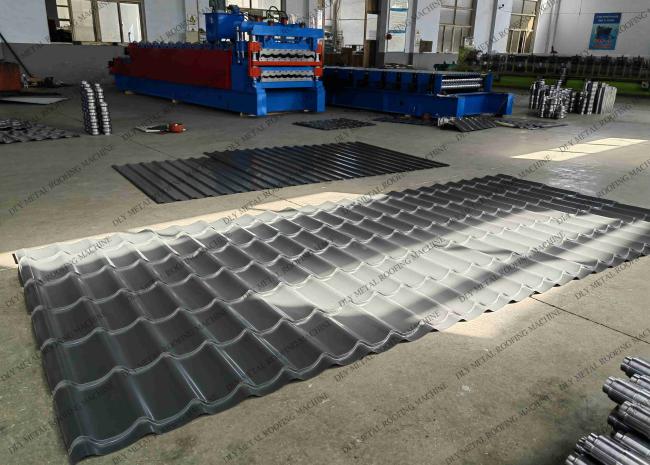

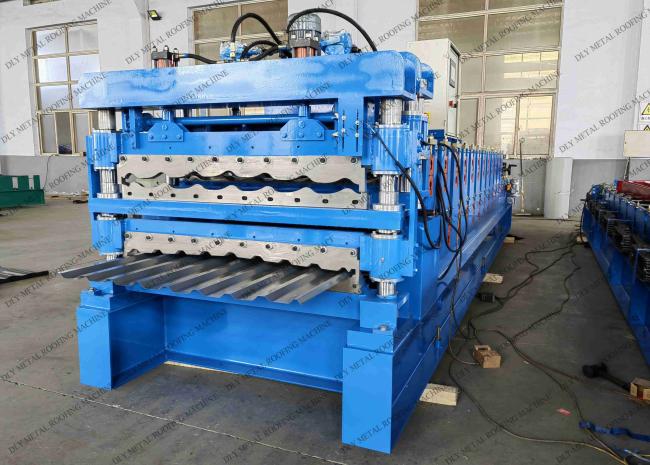

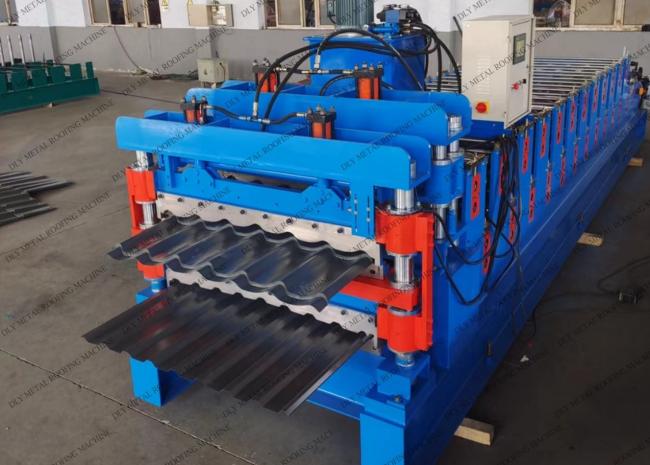

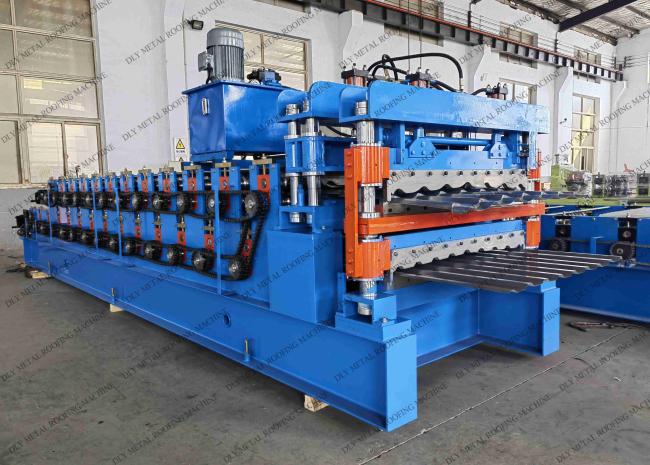

4. details photos of Double Layer Forming Machine
