Automatic Metal Stud Roll Former 3.5T Steel Stud And Track Roll Forming Machines
380V Automatic Metal Keel Roll Forming Machine For Prefab House
1. Specification of Keel Roll Forming Machine
| Material hardness | 550mpa-350mpa |
| Loading capacity | 1.5T |
| Uncoiling width | 300mm |
| Inner diameter | 450-550mm |
| Processing material | GI |
| Material thickness | 0.4-0.8mm |
| Frame thickness | 25mm |
| Drive mode | gear |
| Forming speed | 20m/min |
| Formed width | 46.5mm |
| Material of shafts | 45#steel with tempering of keel roll forming machine |
| Diameter of shafts | φ40mm |
| NO. of rollers | 10 rollers |
2. Description of Keel Roll Forming Machine
Light steel keel is a new type of building material. Light steel keel is widely used in hotels, terminals, train stations, stations, playgrounds, shopping malls, factories, office buildings, old building renovation, interior decoration settings, ceilings, etc. the light steel keel machine including c ,u ,omega, angle ,ceiling system ,t bar grid roll forming machine and so on , the light steel keel machine raw material thickness 0.3-1.0mm, raw material is galvanized sheet , we also can make machine as your requirement , our company aim : reputation first ,customer first .
3. FAQ of of Keel Roll Forming Machine
● What is your machine warranty?
some quick-wear parts will be container together with machine.
if some parts damaged within one year, we will send new one to you for free, just freight up to you.
● Is it complicated to operate the machine?
It is very easy, the machine is automatic, one or two persons can operate it, we provide machine use training.
● How many different profile roofing one machine can produce?
One machine can produce one or two different profiles.

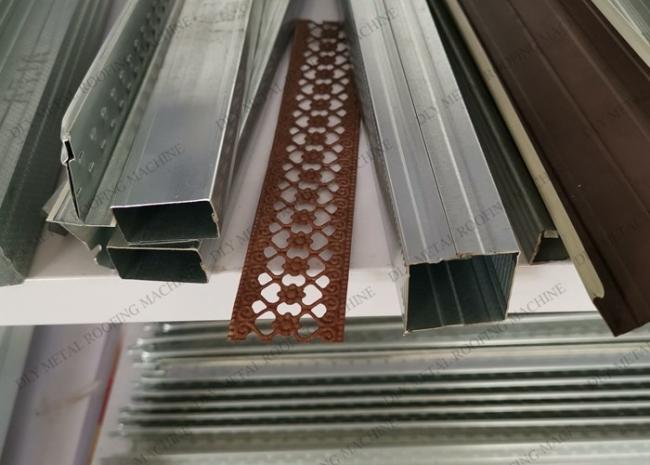

4. details photos of Keel Roll Forming Machine
