480V Ridge Cap Forming Machine PLC Capping Roll Forming Equipment
480V PLC 10m/Min Ridge Cap Forming Machine With PLC Control
1. description of Ridge Cap Forming Machine
Color Steel roof ridge cap forming machine is used to produce metal roof ridge tile which is one type popular metal construction material,this material is usually used with other metal roof sheets,they are widely used in the construction of various industrial plants, villages, warehouses, supermarkets, hotels, exhibition, family construction, shopping malls shutter doors and etc.It has the advantage of beautiful, classical appearance and grace taste.
2. Specifications of Ridge Cap Forming Machine
| Material Specification | |
| Thickness | 0.38mm to 0.45mm |
| Material | PPGI, GI |
| Feeding width | 444mm to 762mm |
| Yield strength | 550MPa or customized |
| Machine Components | |
| 5Ton*1250mm Hydraulic Decoiler | |
| Coil inner hole expanding | Hydraulic system, 3KW pump motor |
| Speed regulating | Frequency inverter, 3KW motor |
| Expanding type | Taper wedge expanding system |
| Load capacity | Max.5Tons |
| Coil inner diameter | 510±30mm |
| Coil outer diameter | Max.1600mm |
| Coil width | Max.1250mm |
| Stop/start rotation | Automatic stopping device with limited switch to assist |
| Option | Please refer to Decoiler on home page |
| Power Feed-in Device | |
| Motor | 1.5KW |
| Hydraulic Flying Cut, Servo Motor Driving | |
| With linear rail to guide and ball screw to adjust | |
| Servo motor | 5KW |
| Hydraulic station | 7.5KW |
| Roll Forming Machine | |
| Driving system | Gear box |
| Forming station | 14 stations |
| Roller material | Cr12, heat treatment |
| Option for roller material | Cr12Mov |
| Shafts Diameter | Φ75mm |
| Main motor | 15KW, frequency speed control |
| Size changing | Screw adjusting manually |
| Line speed of rollformer | Approx. 38m/min or customized |
| PLC Control System | |
| Function | Control quantity and and cutting length automatically |
| PLC | Siemens |
| Touch screen | Siemens |
| Inverter | Schneider or Delta |
| Encoder | Omron |
| Cut-to-length tolerance | ≤±2mm or customized |
| Control Voltage | 24V |
| Product Rack | 3 meters×2 |
3. Work Flow of Ridge Cap Forming Machine
Manual uncoiler- Roll forming machine- Computer control system- Hydraulic control system- Form cutter

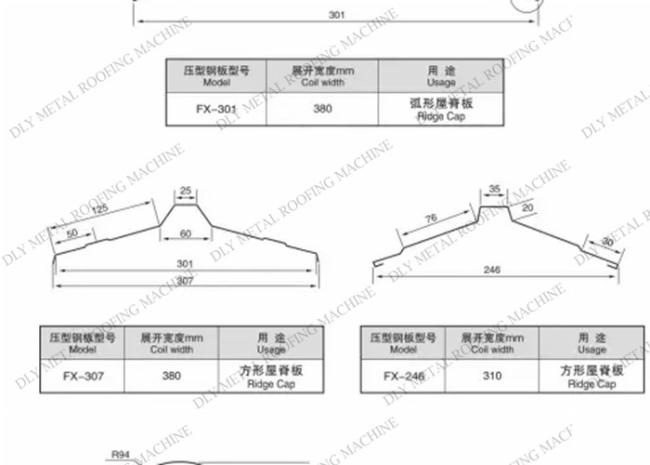

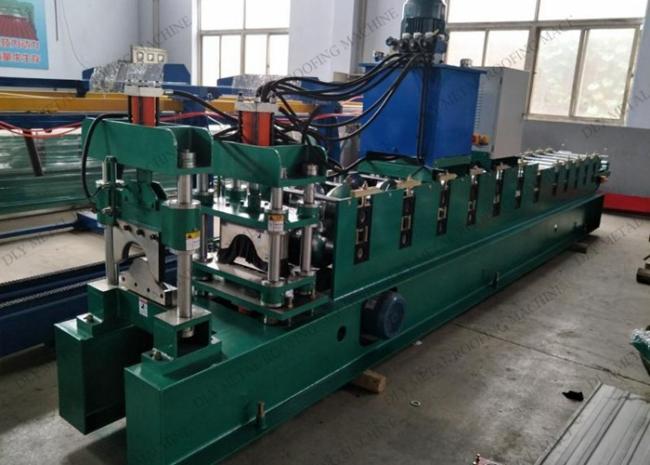

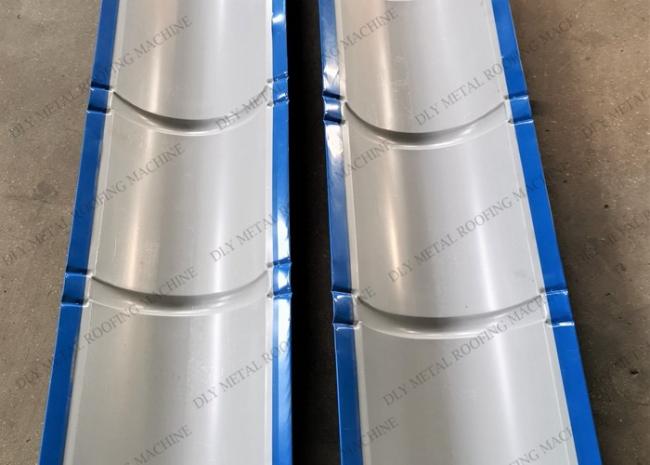

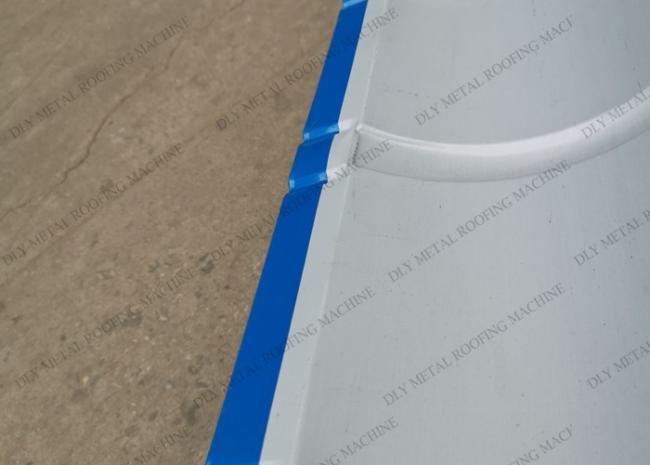

4. details photos of Ridge Cap Forming Machine
