10kw Roofing Sheet Profiling Machine 4.5T Profile Sheet Cutting Machine
380v 10kw Shutter Door Sheet Metal Profiling Machine With Hydraulic Cutting
1. Description of Sheet Metal Profiling Machine

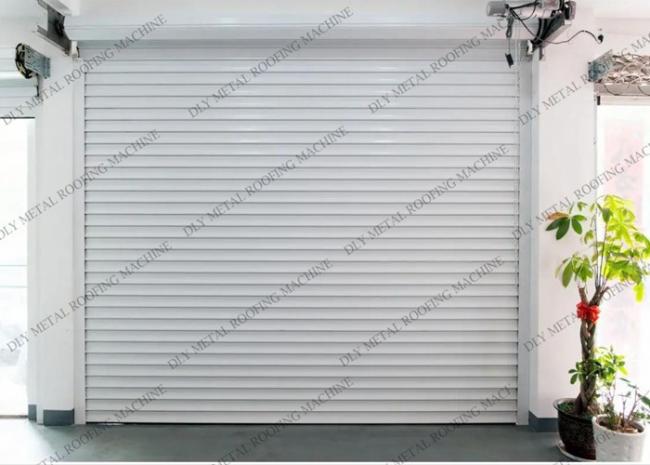

Rolling shutter door is commonly used for garages, shops front show windows, etc. since they are quite strong and offer proper safety to the property. The door shutter works as a curtain, providing adequate protection and safety against fire and thefts.In this way, a door is sufficiently strong and bring proper safety to glass and interiors when closed.
2. Specifications of Sheet Metal Profiling Machine
| Machine Specifications | |
|---|---|
| Weight | About 3500kgs |
| Size | About 6m x 1.6m x 1.5m (length x width x height) |
| Color | Main color: blue |
| Warning color: yellow | |
| Suitable Raw Material | |
| Material | Galvanized Steel Coils |
| Thickness | 0.3-0.6mm |
| Yield Strength | 235Mpa |
| Main Technical Parameters | |
| Quantity of forming rollers stations | 12-14 |
| Diameter of forming rollers shafts | 60mm |
| Roll Forming Speed | 15-20m/min |
| Forming rollers material | No.45 steel, coated with chromed treatment |
| Cutter material | CR12 mould steel, with quenched treatment |
| Controlling system | PLC and Converter |
| Electric Power requirement | Main motor power: 3kw |
| Hydraulic unit motor power: 3kw | |
| Electric voltage | According to customer’s requirement |
3. feedback of Sheet Metal Profiling Machine

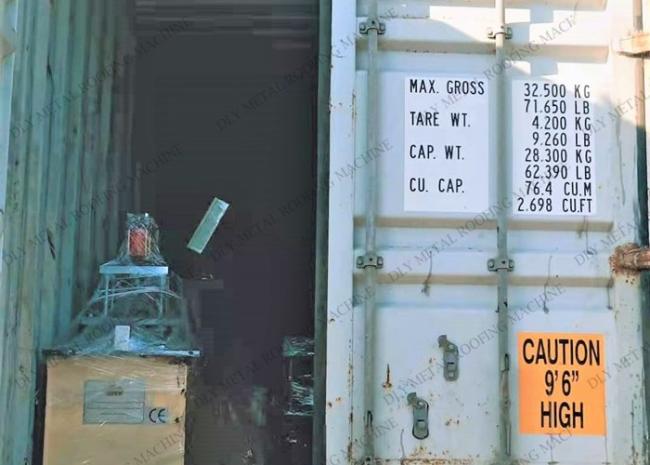

Our metal roofing machines have been exported to Slovenia, Bosnia and Herzegovina, Serbia, Uruguay, Russia, Canada, Australia, Nigeria, Zambia, Tanzania and etc. We were proud to receive recognized by our valued clients!

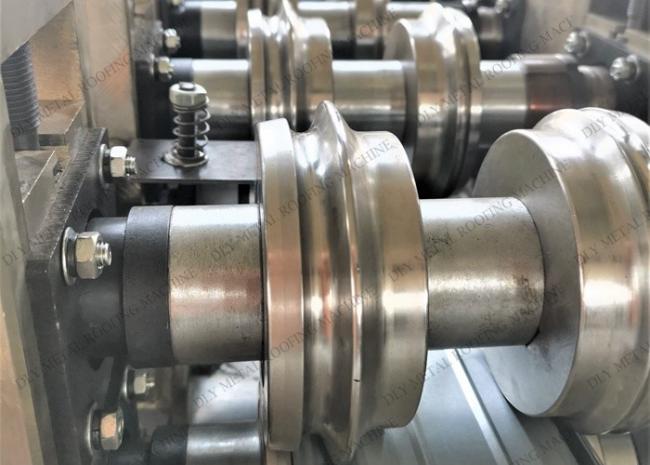

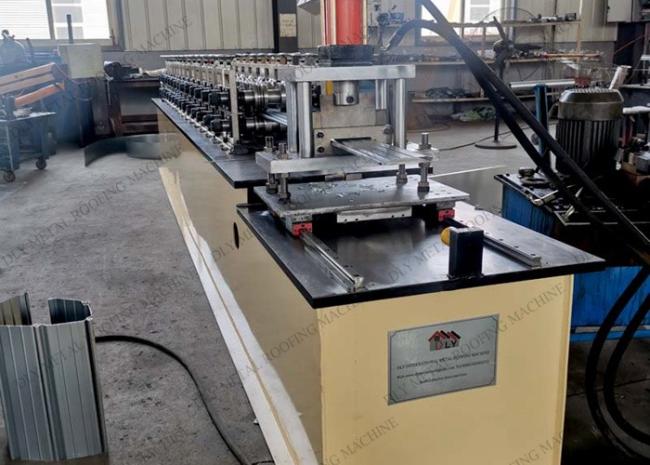

4. details of Sheet Metal Profiling Machine
